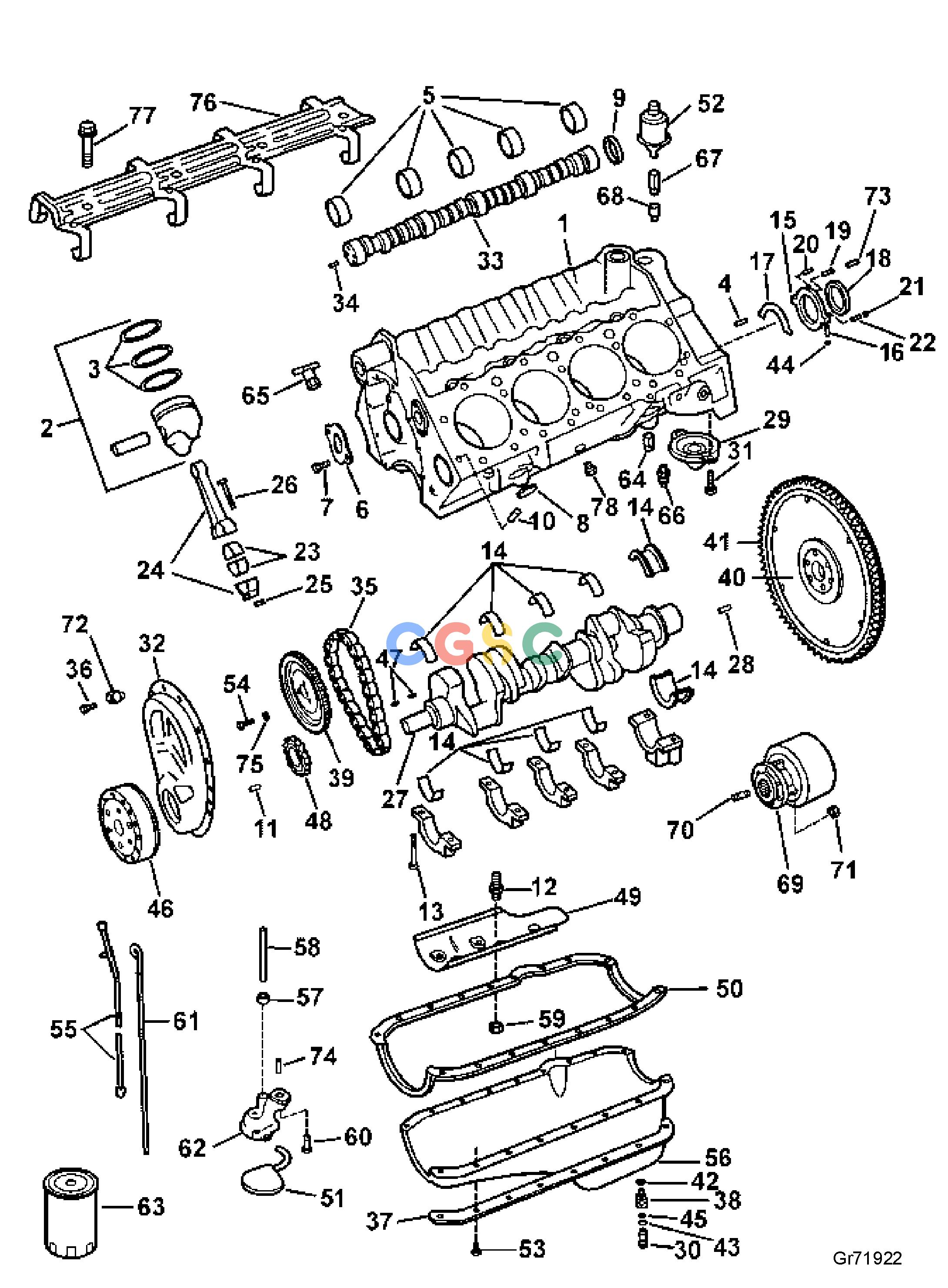

| 1. |
3856692
|
[1] |
Base engine
|
5.7
|
| 2. |
3855742
|
[8] |
Piston, standard
|
5.7
|
| 2. |
3855743
|
[1] |
Piston, 0.5mm os
|
5.7; as required
|
| 3. |
3855740
|
[8] |
Piston ring, standard
|
5.7
|
| 3. |
3855741
|
[1] |
Piston ring, 0.5mm os
|
5.7; as required
|
| 4. |
3856001
|
[2] |
Pin, flywheel housing location
|
|
| 5. |
3856162
|
[1] |
Kit, camshaft
|
|
| 6. |
3855998
|
[1] |
Retainer, camshaft
|
|
| 7. |
3853172
|
[2] |
Screw, camshaft retainer
|
|
| 8. |
3852100
|
[8] |
Core plug, expansion
|
|
| 9. |
3853209
|
[1] |
Core plug, rear camshaft bearing
|
|
| 10. |
3853114
|
[4] |
Locating pin, cylinder head
|
|
| 11. |
3855972
|
[2] |
Pin, timing cover
|
|
| 12. |
3856146
|
[5] |
Stud, bearing cap
|
|
| 13. |
3853214
|
[10] |
Bolt, bearing cap
|
|
| 14. |
3856155
|
[1] |
Bearing, main, 0.010 in os
|
|
| 14. |
3856154
|
[1] |
Bearing, main, standard
|
|
| 14. |
3856156
|
[1] |
Bearing, main, 0.020 in os
|
|
| 15. |
3856925
|
[1] |
Housing, rear oil seal
|
|
| 16. |
3853202
|
[2] |
Stud, rear oil seal retainer
|
|
| 17. |
3852656
|
[1] |
Gasket, rear oil seal housing
|
|
| 18. |
3856926
|
[1] |
Seal, oil, rear
|
|
| 19. |
3853204
|
[1] |
Bolt, rear oil seal, 1.75 in
|
44.5mm
|
| 20. |
3853203
|
[2] |
Bolt, rear oil seal, 0.875 in
|
22.57mm
|
| 21. |
3853206
|
[1] |
Nut, rear oil seal housing
|
|
| 22. |
3853205
|
[1] |
Stud, rear oil seal housing
|
|
| 23. |
3853149
|
[8] |
Bearing, rod, standard
|
|
| 23. |
3853153
|
[1] |
Bearing, rod, 0.020 in os
|
|
| 23. |
3856117
|
[1] |
Bearing, rod, 0.010 in os
|
|
| 24. |
3853957
|
[8] |
Connecting rod
|
|
| 25. |
3853148
|
[16] |
Nut, connecting rod
|
|
| 26. |
3853162
|
[16] |
Bolt, connecting rod
|
|
| 27. |
3856923
|
[1] |
Crankshaft
|
|
| 28. |
3855969
|
[1] |
Pin, flywheel
|
|
| 29. |
3852219
|
[1] |
Valve
|
|
| 30. |
3850822
|
[1] |
Retainer
|
|
| 31. |
3852133
|
[2] |
Screw, adapter to engine
|
|
| 32. |
3856594
|
[1] |
Timing gear cover
|
|
| 33. |
3856119
|
[1] |
Camshaft
|
|
| 34. |
3855972
|
[1] |
Pin, cam sprocket
|
|
| 35. |
3852685
|
[1] |
Chain
|
|
| 36. |
3855736
|
[2] |
Screw, timing cover, center of cover
|
|
| 36. |
3855737
|
[6] |
Screw, timing cover
|
|
| 37. |
3856120
|
[1] |
Reinforcement, oil pan; port
|
|
| 37. |
3856121
|
[1] |
Reinforcement, oil pan; stbd
|
|
| 38. |
3855112
|
[1] |
Fitting, oil pan drain
|
|
| 39. |
3856114
|
[1] |
Sprocket, camshaft
|
|
| 40. |
3853958
|
[1] |
Flywheel
|
|
| 41. |
3855970
|
[1] |
Gear, flywheel
|
|
| 42. |
3851981
|
[1] |
Washer, fitting to oil pan
|
|
| 43. |
3852007
|
[1] |
Washer, retainer, oil pan drain
|
|
| 44. |
3856930
|
[4] |
Nut, seal housing
|
|
| 45. |
3853674
|
[1] |
O-ring, retainer, oil pan drain
|
|
| 46. |
3856924
|
[1] |
Vibration damper
|
|
| 47. |
3852663
|
[2] |
Woodruff key, crankshaft
|
|
| 48. |
3852690
|
[1] |
Sprocket, crankshaft
|
|
| 48. |
3850740
|
[1] |
Plug, water drain, block
|
Not shown
|
| 49. |
3852744
|
[1] |
Baffle, oil pan
|
|
| 50. |
3856138
|
[1] |
Gasket kit, oil pan
|
|
| 51. |
3856126
|
[1] |
Strainer, oil pump
|
|
| 52. |
3857532
|
[1] |
Oil pressure sensor, oil pressure
|
|
| 53. |
3852595
|
[14] |
Bolt, oil pan
|
|
| 54. |
3853173
|
[3] |
Bolt, camshaft sprocket
|
|
| 55. |
3850474
|
[1] |
Gauge
|
|
| 56. |
3857778
|
[1] |
Sump
|
|
| 57. |
3853199
|
[1] |
Retainer, oil pump shaft
|
|
| 58. |
3853198
|
[1] |
Shaft
|
|
| 59. |
3857664
|
[5] |
Nut, oil baffle
|
|
| 60. |
3853234
|
[2] |
Bolt, oil pump
|
|
| 61. |
3860402
|
[1] |
Tube
|
Gi/GSi
|
| 61. |
3850249
|
[1] |
Tube
|
GL/GS
|
| 62. |
3856125
|
[1] |
Oil pump
|
|
| 63. |
3850559
|
[1] |
Filter
|
|
| 64. |
3850660
|
[1] |
Fitting, oil pressure switch
|
Gi/GSi
|
| 65. |
3850490
|
[1] |
Fitting, drain, knock sensor
|
Gi/GSi
|
| 66. |
3852215
|
[1] |
Sensor, oil pressure
|
Gi/GSi
|
| 67. |
3852503
|
[1] |
Elbow, oil sender
|
|
| 68. |
3855776
|
[1] |
Adapter, oil sender
|
|
| 69. |
3858437
|
[1] |
Rubber coupling
|
|
| 70. |
3853274
|
[6] |
Stud, coupler to flywheel
|
|
| 71. |
3853273
|
[6] |
Nut, stud, coupler to stud
|
|
| 71. |
3853202
|
[2] |
Stud, oil pan
|
Not shown
|
| 72. |
3855739
|
[8] |
Grommet, timing cover
|
|
| 73. |
3856140
|
[1] |
Pin, rear oil seal housing
|
|
| 74. |
3855972
|
[2] |
Pin, oil pump location
|
|
| 75. |
3856151
|
[3] |
Washer, bolt, cam sprocket
|
|
| 76. |
3856144
|
[1] |
Retainer, lifter guide
|
|
| 77. |
3853171
|
[3] |
Screw, lifter guide retainer
|
|
| 78. |
3850740
|
[1] |
Plug, water drain, block
|
|
