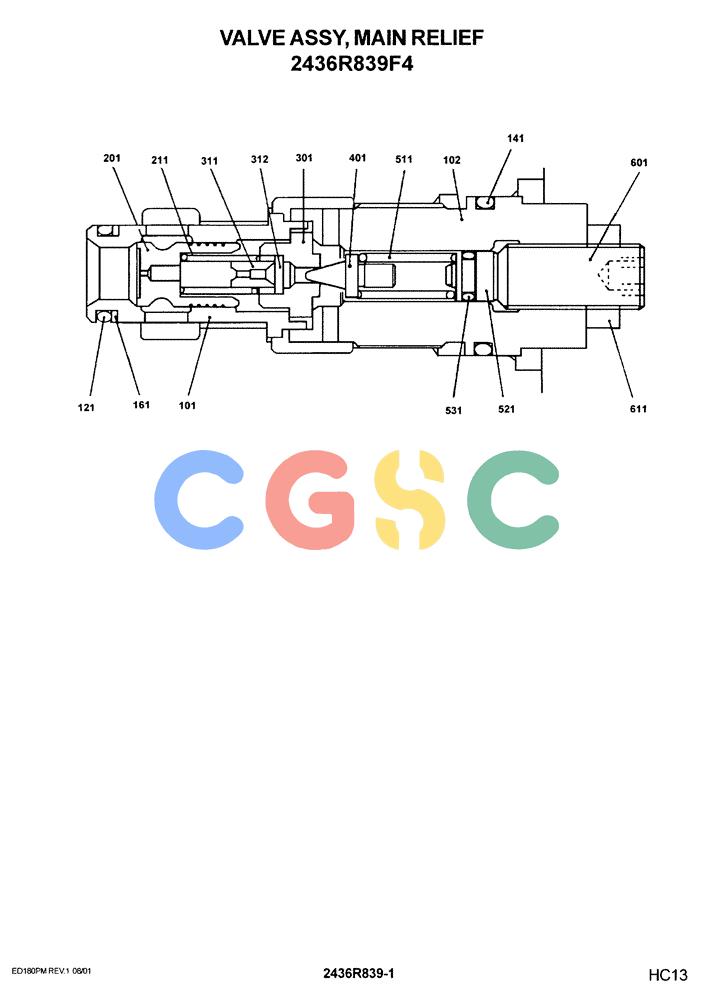

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-006) - VALVE ASSY, MAIN RELIEF (2436R839F4) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
118 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R839F4 | [1] | VALVE | KOBMAIN |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 102. | 2436R839S102 | [1] | PLUG | |
| 121. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 141. | ZD12G02500 | [1] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 161. | 2436R840S161 | [1] | BACK-UP RING | KOB |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 211. | 2436R682S211 | [1] | SPRING | KOB |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
| 401. | 2436R682S401 | [1] | POPPET | KOB |
| 511. | 2436R682S621 | [1] | SPRING | |
| 521. | 2436R682S521 | [1] | SEAT | KOB |
| 531. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 601. | 2436R682S211 | [1] | SPRING | KOBSETSCREW |
| 611. | 2436R683S671 | [1] | NUT | KOB Superseded by part number: ZN18C12007 |
| . . | 2436R838R100 | [1] | REPAIR KIT | KOBREPAIR KIT, CONSISTS OF REF 101 & 201 |
| . . | 2436R838R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF 301, 311 & 312 |
