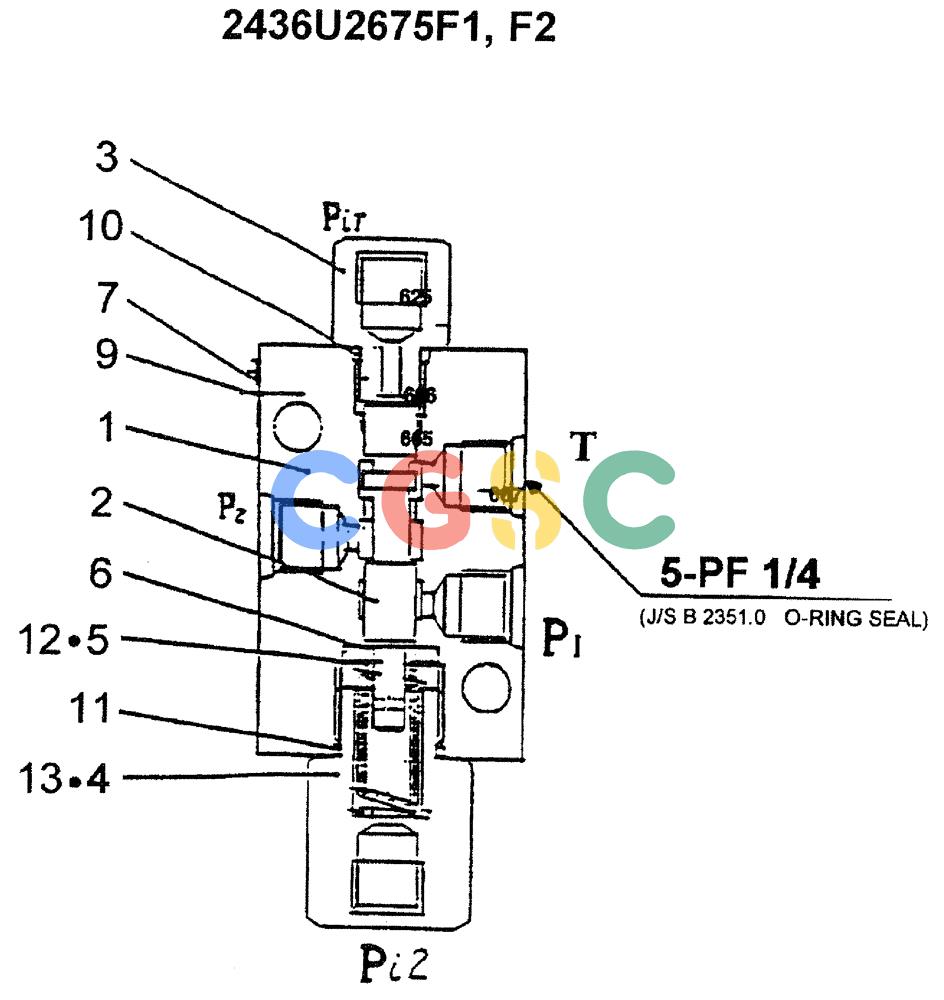

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-008) - CONTROL VALVE ASSEMBLY (SWING PRIORITY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
837 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U2675F1 | [1] | HYDRAULIC VALVE | KOBCONTROL (SWING PRIORITY) |
| . . | 2436U2675F2 | [1] | CONTROL VALVE | KOB(SWING PRIORITY) |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 3. | 2436U2675S3 | [1] | CONNECTOR | |
| 4. | 2436U2675S4 | [1] | PLUG, F1 ONLY | |
| 5. | 2436U2675S5 | [1] | SPRING, F1 ONLY | |
| 6. | 2436U2675S6 | [1] | RETAINER | |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE, NAME |
| 9. | 2436U1487S35 | [2] | RIVET | KOB |
| 10. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 11. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 12. | 2436U2675S12 | [1] | SPRING | |
| 13. | 2436U2675S13 | [1] | PLUG, F1 ONLY | |
