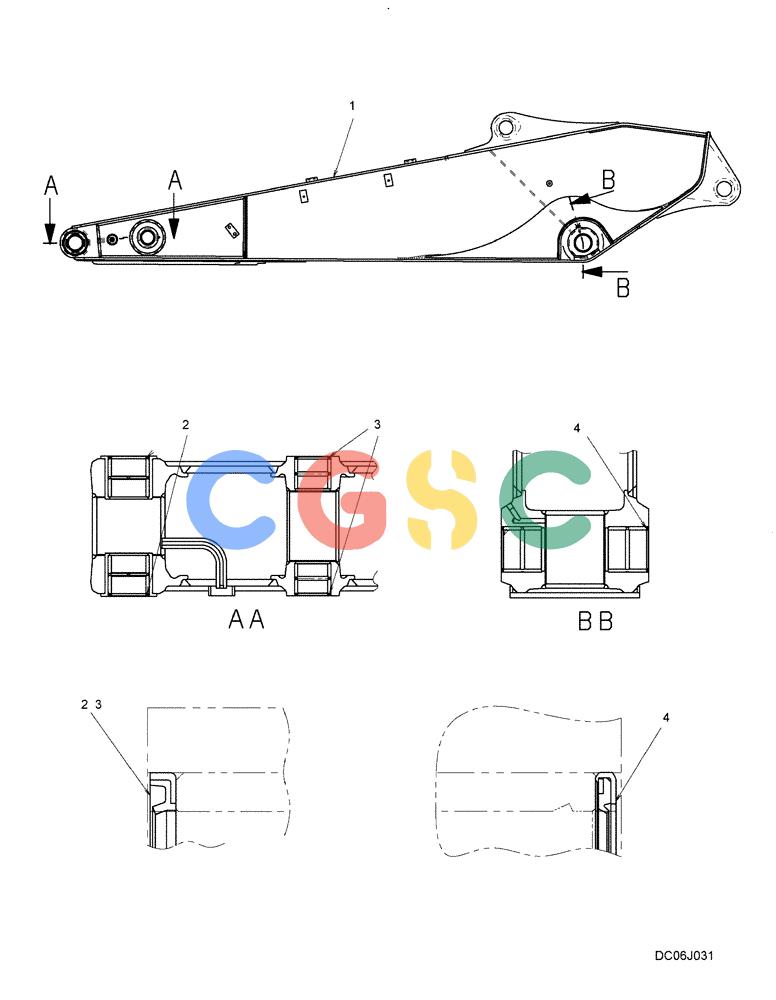

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (5.022[00]) - ARM (ROTATION + NIBBLER & BREAKER) (YN12B00827F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
986 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN12B00828F1 | [1] | ARM | KOBArm |
| 2. | 2445R220D4 | [2] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust -- ID 70 x OD 85 x Th 5mm |
| 3. | 2445R220D3 | [2] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDust -- ID 70 x OD 85 x Th 5mm |
| 4. | 2445R138D8 | [2] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust -- ID 90 x OD 105 x Th 4mm |
