沃尔沃零件查询5.0GLPWTR; 5.0GiPWTR; 5.7GSIPWTR; 5.7GSPWTR; 5.7GSiPWTRCEElectrical SystemEngine HarnessEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
729 次

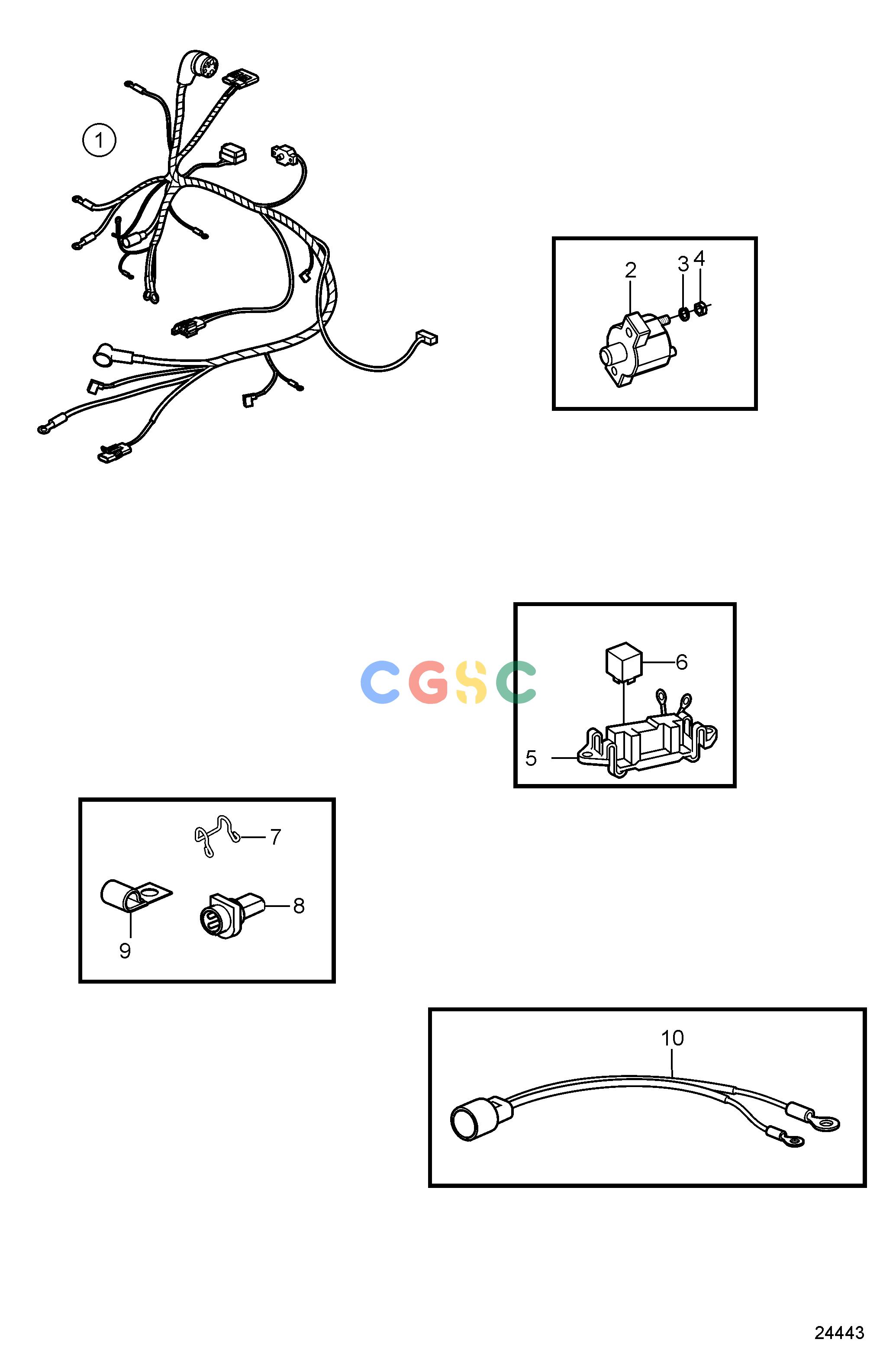

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3858348
|
[1] |
Cable harness
|
|
| 2. |
3854162
|
[1] |
Automatic fuse
|
12,5A
|
| 2. |
3854164
|
[1] |
Automatic fuse
|
50A
|
| 2. |
3854238
|
[1] |
Automatic fuse
|
6A
|
| 3. |
3852001
|
[2] |
Tab washer
|
|
| 4. |
3852064
|
[2] |
Nut
|
|
| 5. |
3852210
|
[1] |
Bracket
|
|
| 6. |
3850403
|
[1] |
Relay, fuel pump
|
|
| 7. |
3852237
|
[1] |
Retainer
|
|
| 8. |
3855178
|
[1] |
Connector
|
|
| 9. |
3852434
|
[1] |
Clamp, J
|
D=.750'' (19.0mm)
|
| 9. |
3852146
|
[1] |
Clamp, J
|
D=.375'' (9,5mm)
|
| 9. |
3852124
|
[1] |
Attaching clamp, J
|
D=.188'' (4,8mm)
|
| 10. |
3854031
|
[1] |
Cable harness, trim
|
|
