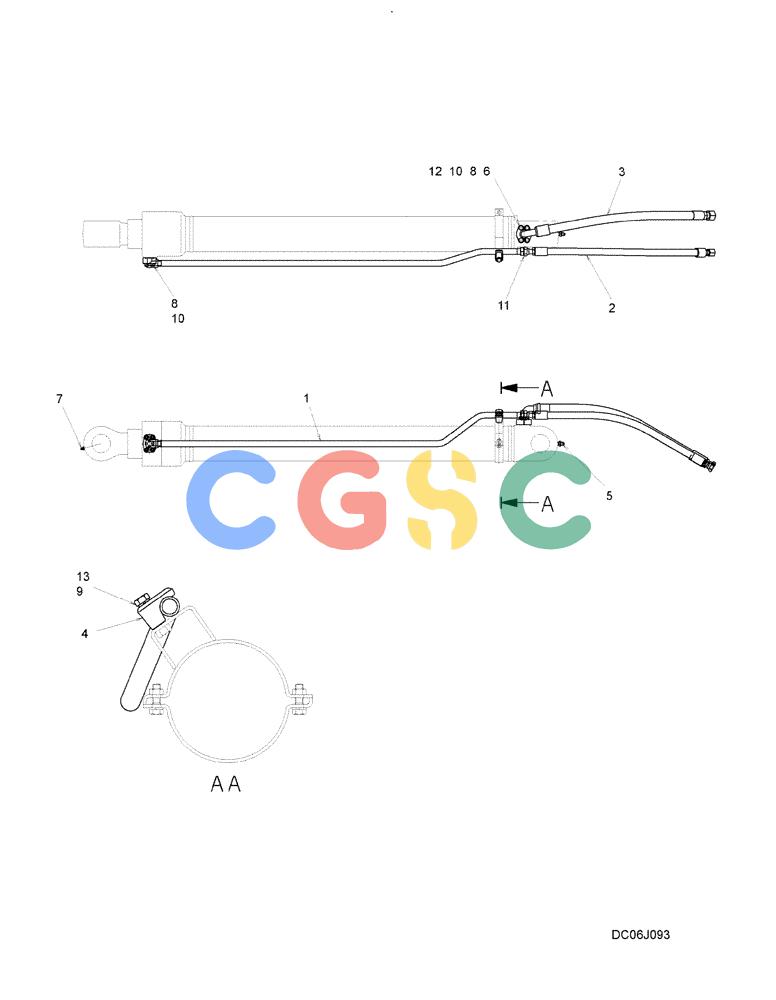

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (6.023[00]) - HYDRAULIC LINES, ARM CYLINDER (LONG REACH) (YN42H00225F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
179 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN42H01951P1 | [1] | TUBE,27.2 mm OD x 1746, 131 mm Length | KOB |
| 2. | YN42H01934D1 | [1] | HOSE | KOB900mm Long (35-7/16 in) |
| 3. | YN02B01030D1 | [1] | HYDRAULIC HOSE | KOB920mm Long (36-7/32 in) |
| 4. | YN43H01097P1 | [1] | CLAMP | KOBSingle -- 58x30x38mm (Ø28mm) |
| 5. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 6. | ZE13X16000 | [2] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 7. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 8. | ZS28C12040 | [8] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 9. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 10. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 11. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 12. | ZW26K12000 | [4] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 13. | ZW26X12000 | [1] | WASHER | KOBID 12 x OD 21 x Th 3.0mm |
