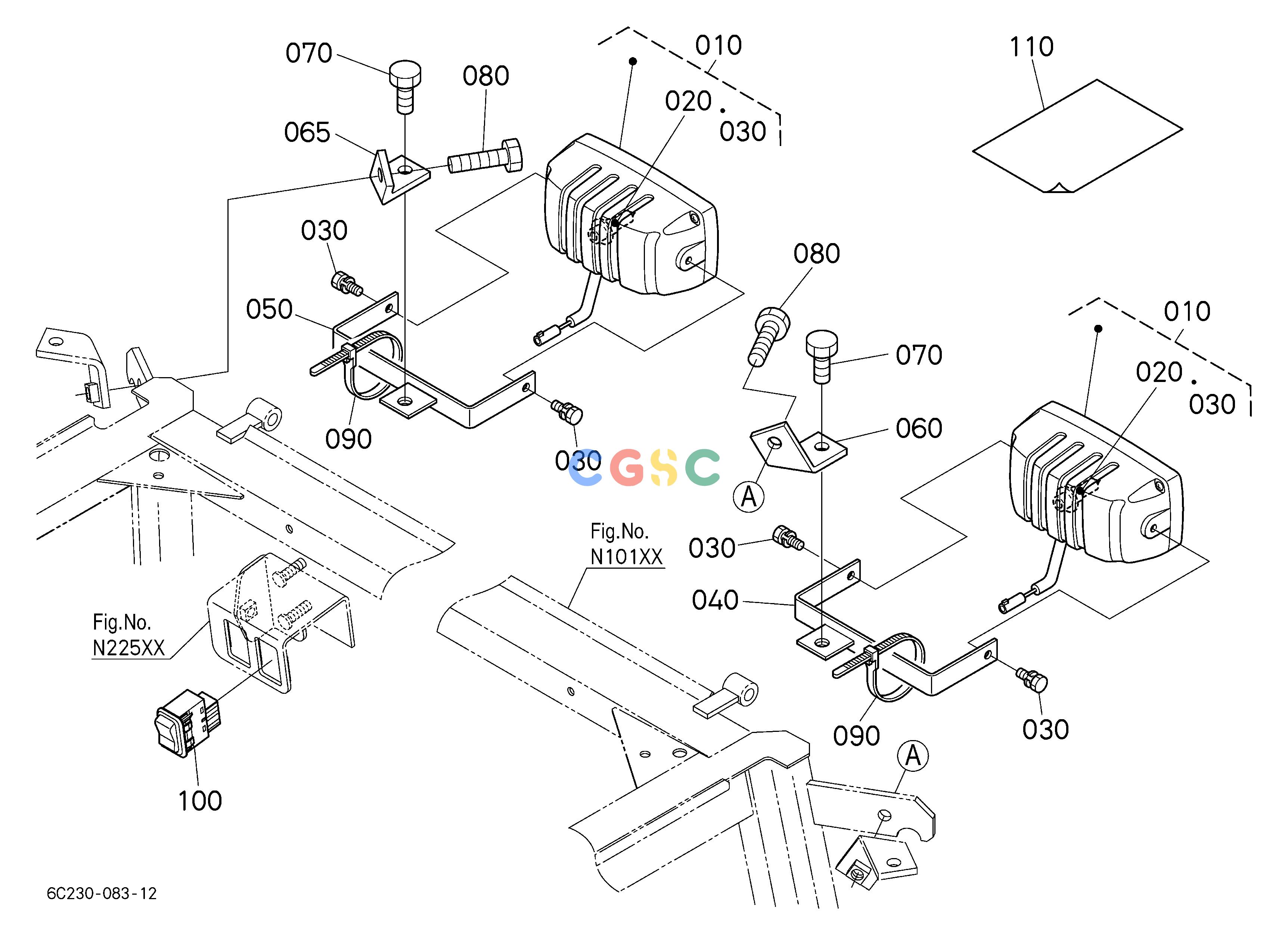

久保田零件查询U80500 WORKING LIGHT KIT [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T127575302
|
[2] |
LIGHT,WORK
|
0.5500(lbs); 0.250
|
| 020. |
T127591060
|
[2] |
BULB
|
0.0220(lbs); 0.010
|
| 030. |
T127591070
|
[4] |
BOLT
|
0.0154(lbs); 0.007
|
| 040. |
T127575310
|
[1] |
STAY,WORK LIGHT RH
|
0.3300(lbs); 0.150
|
| 050. |
T127575320
|
[1] |
STAY,WORK LIGHT LH
|
0.3300(lbs); 0.150
|
| 060. |
6C23097650
|
[1] |
STAY,WORK LIGHT
|
0.2332(lbs); 0.106
|
| 065. |
6C23097660
|
[1] |
STAY,WORK LIGHT
|
0.2310(lbs); 0.105
|
| 070. |
0117351025
|
[2] |
HEX.BOLT
|
0.0462(lbs); 0.021
|
| 080. |
0117351035
|
[2] |
HEX.BOLT
|
0.0550(lbs); 0.025
|
| 090. |
5358164150
|
[2] |
BAND,CORD
|
0.0044(lbs); 0.002
|
| 100. |
T106575370
|
[1] |
SWITCH,R WORKING LIGHT
|
0.0440(lbs); 0.020
|
| 110. |
99999-99999
|
[1] |
MANUAL,ASSEMBLY
|
0.0000(lbs); 0.000
|
