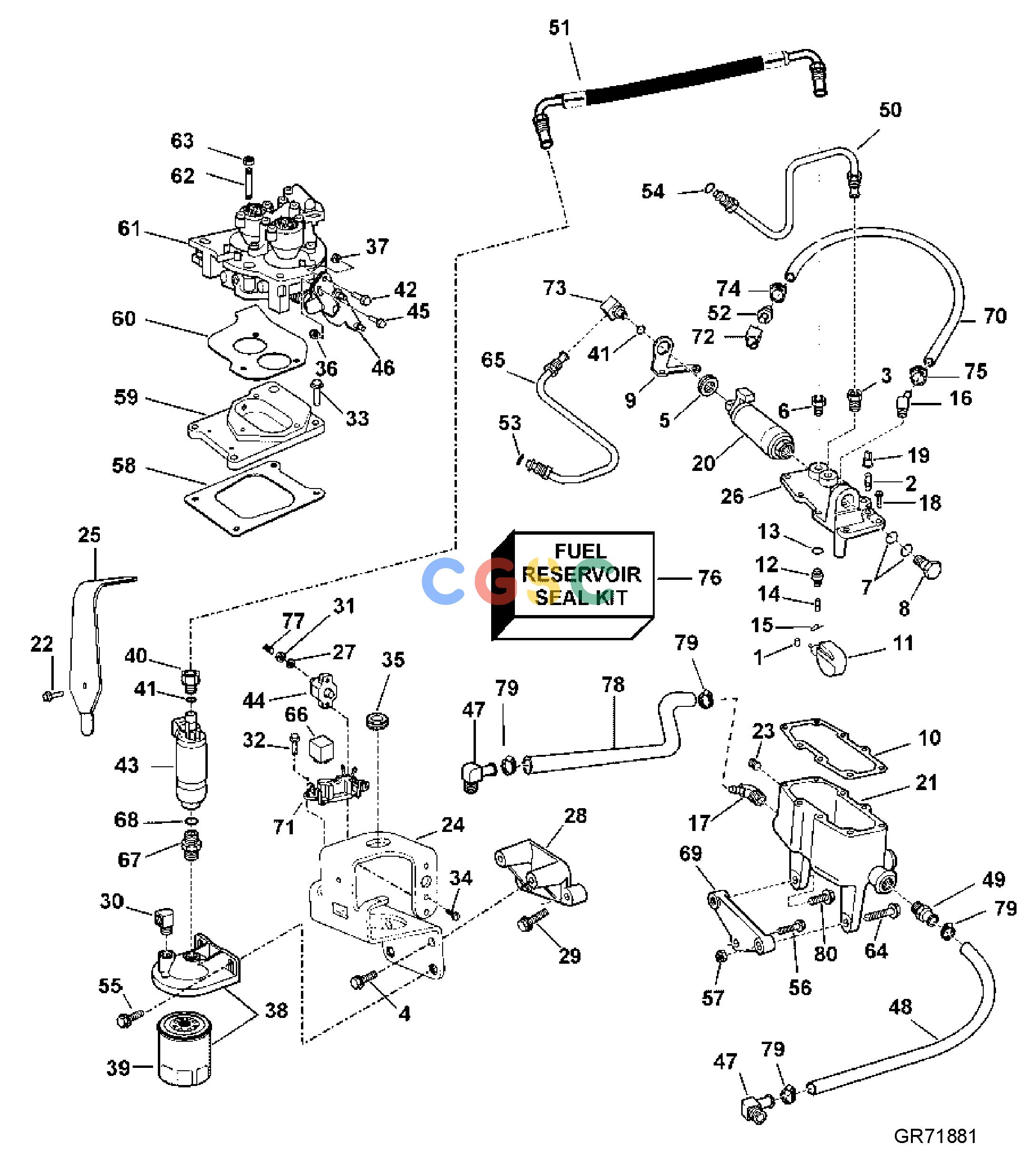

| 1. |
3852034
|
[1] |
Retainer, float pin
|
|
| 2. |
3854152
|
[1] |
Valve, reservoir assy
|
|
| 3. |
3852462
|
[1] |
Fitting, fuel line to reservoir
|
|
| 4. |
3853326
|
[2] |
Flange screw, pump bracket to support bracket
|
|
| 5. |
3852481
|
[1] |
Grommet, fuel pump to cover
|
Reservoir assy
|
| 6. |
3852017
|
[1] |
Adapter, fuel line
|
LP pump to reservoir
|
| 7. |
3853642
|
[2] |
O-ring, retainer, fuel pump
|
Part of engine gasket kit
|
| 8. |
3853572
|
[1] |
Retainer, fuel pump to cover
|
Reservoir assy
|
| 9. |
3853573
|
[1] |
Bracket, fuel pump grommet
|
Reservoir assy
|
| 10. |
3857728
|
[1] |
Gasket, cover
|
Reservoir assy
|
| 11. |
3853575
|
[1] |
Float, reservoir assy
|
|
| 12. |
3853576
|
[1] |
Spring seat, float needle
|
Reservoir assy
|
| 13. |
3853577
|
[1] |
Gasket, float needle seat
|
Reservoir assy
|
| 14. |
3853578
|
[1] |
Needle, float
|
Reservoir assy
|
| 15. |
3853579
|
[1] |
Clip, needle to float
|
Reservoir assy
|
| 16. |
3853597
|
[1] |
Elbow, vent, reservoir to intake
|
|
| 17. |
3852480
|
[1] |
Elbow, reservoir to thermostat hsg
|
|
| 18. |
3853606
|
[8] |
Screw, cover to reservoir
|
Reservoir assy
|
| 19. |
3853616
|
[1] |
Protective hat, pressure valve
|
|
| 20. |
3857650
|
[1] |
Fuel pump, high pressure
|
|
| 21. |
3854149
|
[1] |
Reservoir
|
|
| 22. |
3857938
|
[1] |
Screw, fuel pump protection bracket
|
|
| 23. |
3852167
|
[1] |
Plug, reservoir drain
|
|
| 24. |
3856438
|
[1] |
Bracket, fuel filter and fuel pump
|
|
| 25. |
3858255
|
[1] |
Bracket, fuel pump protection
|
|
| 26. |
3854405
|
[1] |
Cap, reservoir assy
|
|
| 27. |
3852001
|
[2] |
Tab washer, circuit breaker
|
|
| 28. |
3853310
|
[1] |
Bracket, fuel filter
|
|
| 29. |
3853326
|
[2] |
Flange screw, bracket to engine
|
|
| 30. |
3852013
|
[1] |
Elbow, inlet, fuel filter cover
|
|
| 31. |
3852064
|
[2] |
Nut, circuit breaker
|
|
| 32. |
3852208
|
[2] |
Screw, relay & cable assy
|
|
| 33. |
3852008
|
[4] |
Screw, adapter to intake
|
|
| 34. |
3853620
|
[2] |
Hexagon screw, circuit breaker to bracket
|
Electrical ignition
|
| 35. |
3858345
|
[1] |
Grommet, fuel pump to bracket
|
|
| 36. |
3852420
|
[1] |
Nut retainer, lever & pin to TBI
|
|
| 37. |
3852009
|
[1] |
Nut retainer, lever & pin to TBI
|
|
| 38. |
3850861
|
[1] |
Kit
|
|
| 39. |
3851218
|
[1] |
Fuel filter
|
|
| 40. |
856954
|
[1] |
Nipple, fuel line to fuel pump
|
|
| 41. |
3850820
|
[2] |
O-ring, fitting
|
|
| 42. |
3853428
|
[1] |
Flange screw, lever & pin to TBI
|
|
| 43. |
3858261
|
[1] |
Fuel pump, low pressure
|
|
| 44. |
3854162
|
[1] |
Automatic fuse, 12.5A
|
|
| 45. |
3850411
|
[1] |
Shoulder screw, lever & pin to TBI
|
|
| 46. |
3856211
|
[1] |
Bracket, throttle
|
|
| 47. |
3853598
|
[1] |
Elbow, riser, thermostat housing
|
|
| 48. |
943367
|
[1] |
Rubber hose, reservoir to riser
|
|
| 49. |
3856449
|
[1] |
Fitting, reservoir, port nipple
|
|
| 50. |
3850278
|
[1] |
Fuel pipe, tBI to reservoir
|
|
| 51. |
3858225
|
[1] |
Fuel pipe, lp pump to reservoir
|
|
| 52. |
3852225
|
[1] |
Deflection limiter
|
|
| 53. |
3850424
|
[1] |
O-ring, fuel line to fuel rail
|
|
| 54. |
3850423
|
[1] |
O-ring, fuel line to fuel regulator
|
|
| 55. |
3853557
|
[2] |
Flange screw, fuel filter to bracket
|
|
| 56. |
3853262
|
[1] |
Screw, bracket, flywheel hsg to engine
|
|
| 57. |
3850657
|
[1] |
Nut, reservoir & bracket to flywheel hsg
|
|
| 58. |
3850405
|
[1] |
Gasket, adapter to intake
|
|
| 59. |
3850039
|
[1] |
Adapter
|
|
| 59. |
3850740
|
[1] |
Plug
|
|
| 60. |
3850355
|
[1] |
Gasket, TBI to adapter
|
|
| 61. |
3856395
|
[1] |
Throttle housing
|
|
| 62. |
3852160
|
[3] |
Stud, TBI to adapter
|
|
| 63. |
3852142
|
[3] |
Nut, stud, TBI to adapter
|
|
| 64. |
3852957
|
[1] |
Screw, reservoir & bracket to flywheel hsg
|
|
| 65. |
3850277
|
[1] |
Fuel pipe, HP fuel pump to TBI
|
|
| 66. |
3857533
|
[1] |
Relay, fuel pump
|
|
| 67. |
3853493
|
[1] |
Fitting, fuel pump to fuel filter cover
|
|
| 68. |
3850819
|
[1] |
O-ring, fitting, fuel pump to cover
|
Fuel filter
|
| 69. |
|
|
|
|
| 70. |
3850689
|
[1] |
Hose, reservoir to pulse limiter
|
|
| 71. |
3852210
|
[1] |
Bracket, relay
|
|
| 72. |
3852503
|
[1] |
Elbow, pulse limiter to adapter
|
|
| 73. |
3853494
|
[1] |
Fitting, hp fuel pump
|
|
| 74. |
3852529
|
[1] |
Hose clamp, hose to pulse limiter
|
|
| 75. |
3852170
|
[1] |
Clamp, hose to pulse limiter
|
|
| 76. |
3850374
|
[1] |
Kit, fuel reservoir
|
|
| 77. |
3853537
|
[2] |
Protective hat, breaker assy, fuel pump
|
|
| 78. |
943367
|
[1] |
Rubber hose, thermostat hsg to reservoir
|
|
| 79. |
3853794
|
[4] |
Hose clamp
|
|
| 80. |
3853558
|
[1] |
Screw, reservoir to bracket
|
|
