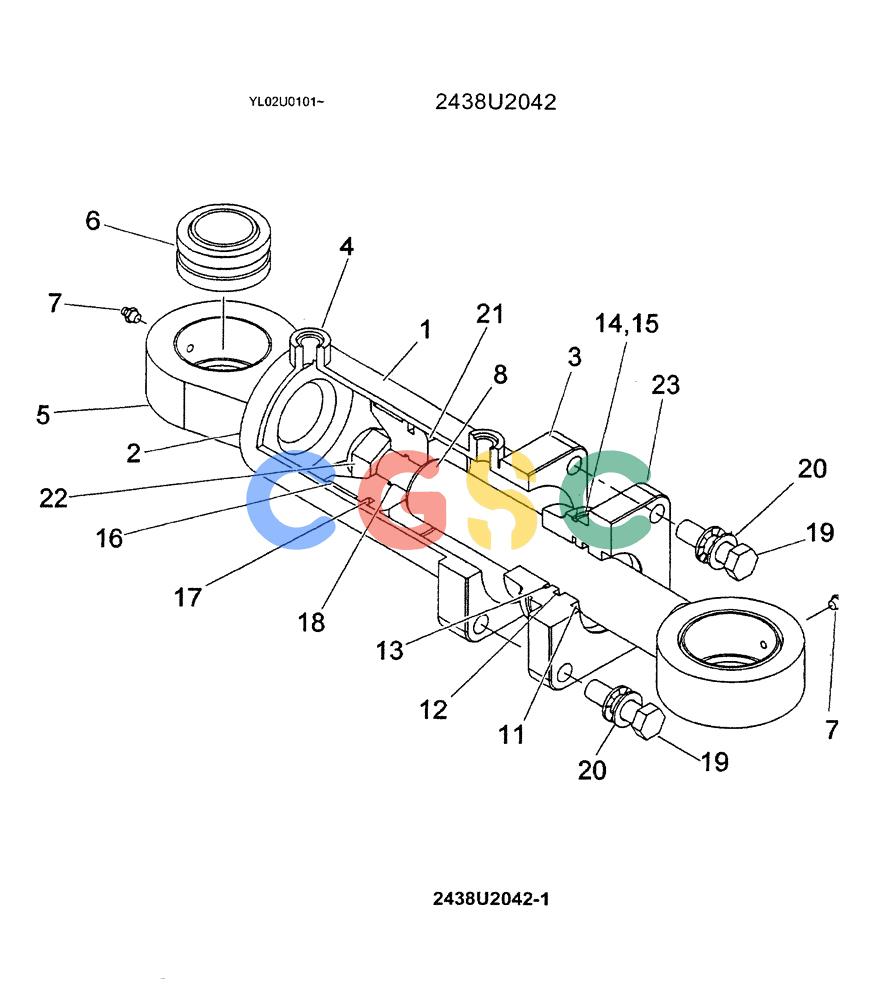

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (06-007) - CYLINDER ASSY, DOZER TILT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U2042 | [1] | CYLINDER | KOBTILT, CYLINDER Superseded by part number: AW317-002-558 |
| 1. | 2438U2042S001 | [1] | TUBE, CYLINDER | |
| 2. | 2438U2042S002 | [1] | PLATE | |
| 3. | 2438U2042S003 | [1] | RING, HEAD | |
| 4. | 2438U2042S004 | [2] | ADAPTER | |
| 5. | 2438U2042S005 | [1] | PLATE | |
| 6. | 2438U2042S006 | [1] | BEARING | |
| 7. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 8. | 2439P472 | [1] | ROD | |
| 11. | 2445Z1613S001 | [1] | RING, WIPER | |
| 12. | 244521613S002 | [1] | SEAL, ROD | |
| 13. | 2445Z1613S003 | [1] | SEAL, BUFFER | |
| 14. | 2445Z1613S004 | [1] | O-RING | |
| 15. | 2445Z1613S005 | [1] | RING, BACK-UP | |
| 16. | 2445Z1613S006 | [1] | RING, WEAR | |
| 17. | 2445Z1613S007 | [1] | SEAL, PISTON | |
| 18. | 2445Z1613S008 | [1] | O-RING | |
| 19. | 2420T9276 | [4] | BOLT (5/8-11 UNCx 2 1/4) | |
| 20. | 2420T9278 | [4] | WASHER (5/8) | |
| 21. | 2432P475 | [1] | PISTON | |
| 22. | 2420T9281 | [1] | NUT (1 1/4 UNF) | |
| 23. | 2438U2042S023 | [1] | HEAD, CYLINDER | |
| . . | 2445Z1613 | [1] | SEAL KIT | KOBSEAL KIT,INCL.REF: 11,12,13,14,15,16,17,18 Superseded by part number: AW558-021-020 |
