纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (35.737.AE[01]) - HYDRAULIC LINES, ARM CYLINDER (LONG REACH) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
943 次

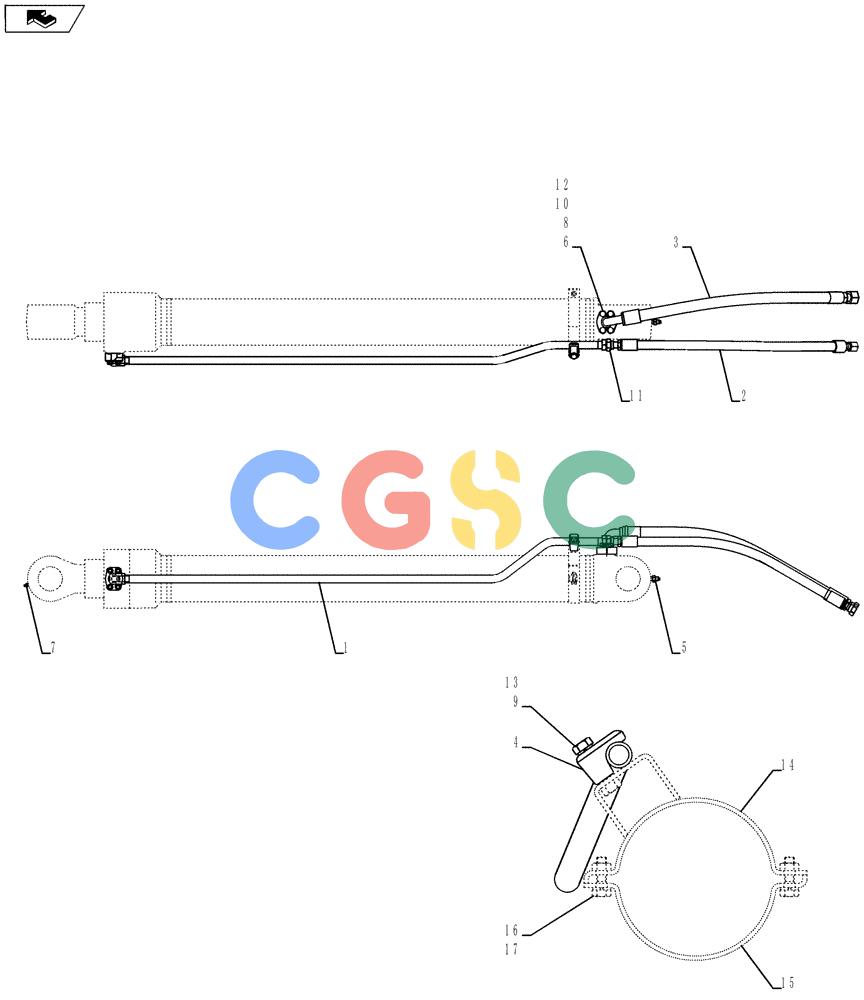

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN42H01951P1 | [1] | TUBE,27.2 mm OD x 1746, 131 mm Length | KOB |
| 2. | YN42H01934D1 | [1] | HOSE | KOB |
| 3. | YN02B01030D1 | [1] | HYDRAULIC HOSE | KOB |
| 4. | YN43H01097P1 | [1] | CLAMP | KOB |
| 5. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB |
| 6. | ZE13X16000 | [2] | FLANGE | KOB |
| 7. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT, Straight |
| 8. | ZS28C12040 | [8] | SCREW,Hex Socket Head, M12 x 40mm | KOB |
| 9. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOB |
| 10. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| 11. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| 12. | ZW26K12000 | [4] | LOCK WASHER | KOB |
| 13. | ZW26X12000 | [1] | WASHER | KOB |
| 14. | YN01V00105S030 | [1] | BAND | KOB |
| 15. | 2438U1018S28 | [1] | BAND | KOB |
| 16. | ZS18C10035 | [1] | SCREW,Hex, M10 x 35mm | KOB |
| 17. | ZW26X10000 | [1] | LOCK WASHER | KOB |
