纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (03-001[00]) - BOOM INSTALL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1006 次

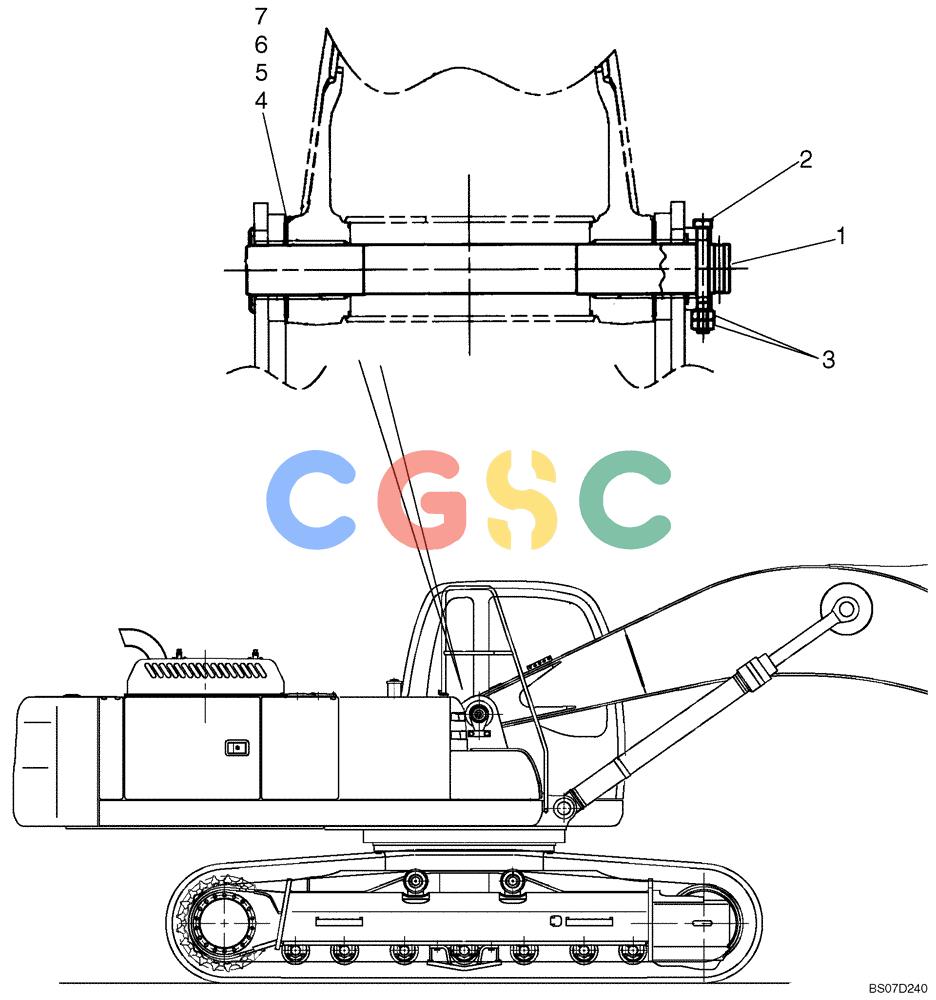

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN02B01719P1 | [1] | PIN,90mm OD x 876mm L | KOB |
| 2. | HS18C20175G2 | [1] | BOLT,Hex, M20 x 175mm, Cl 10.9 | KOBM20x2.5x180mm Superseded by part number: 87334470 |
| 3. | ZN18C20016 | [2] | NUT | KOBNut, M20x2.50mm |
| 4. | B16T0442D53 | [1] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOBShim, (0.50) |
| 5. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOBShim, (0.90) |
| 6. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBShim, (1.6) |
| 7. | YN02B01414D1 | [2] | SHIM,92mm ID x 160mm OD x 2mm Thk | KOBShim, (2.0) |
| . . | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOBShim, (2.3), Not Shown |
