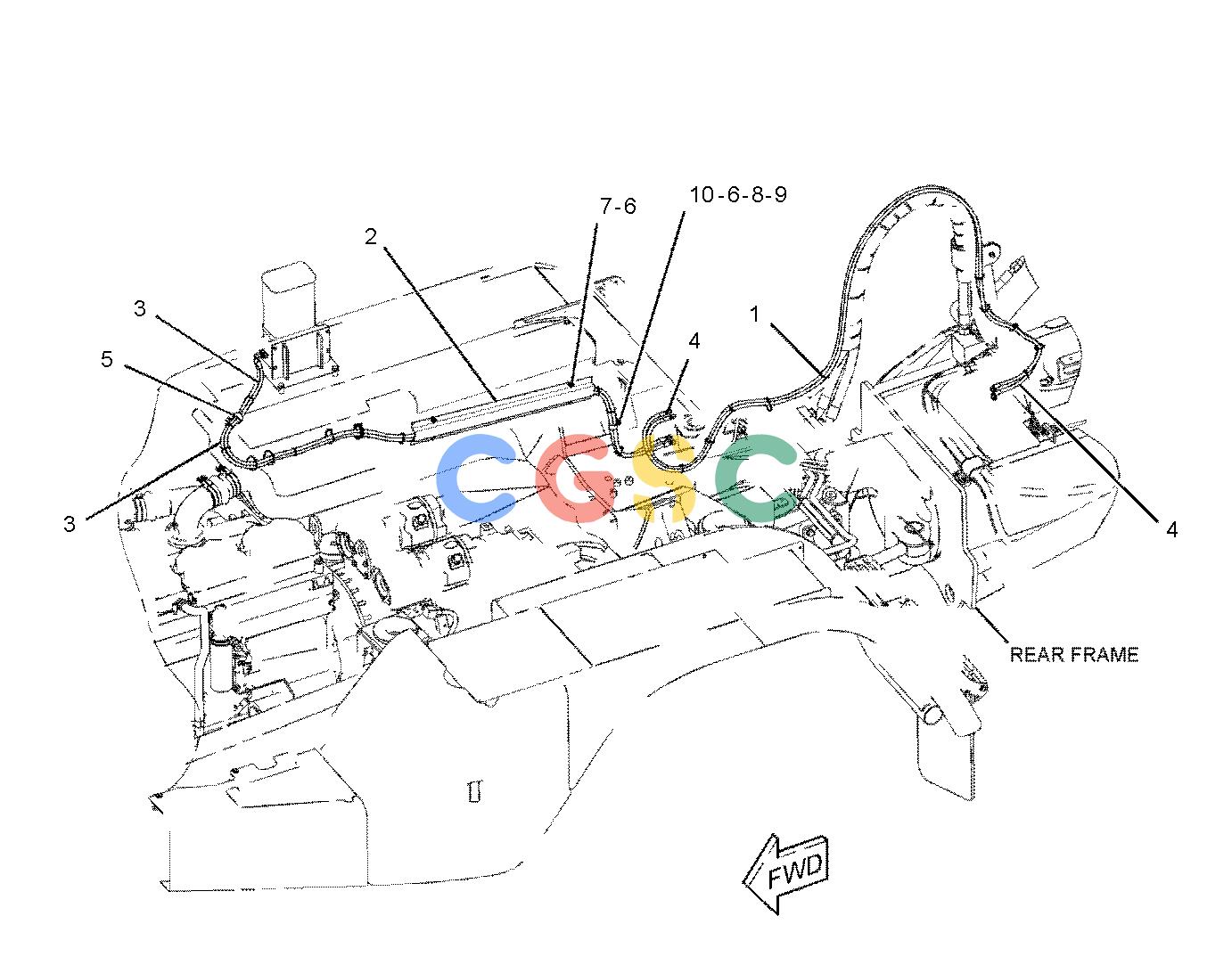

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7K-1181 | [25] | STRAP-CABLE | |
| 2. | 220-8571 | [1] | CHANNEL AS | |
| 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | ||
| 3. | 220-8583 | [2] | HOSE AS | |
| 4. | 220-8584 | [2] | HOSE AS | |
| 5. | 5P-7854 | [1] | CLIP(LOOP) | |
| 6. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 8. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 9. | 6V-1889 | [1] | CLIP(LOOP) | |
| 10. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| M | METRIC PART | |||
