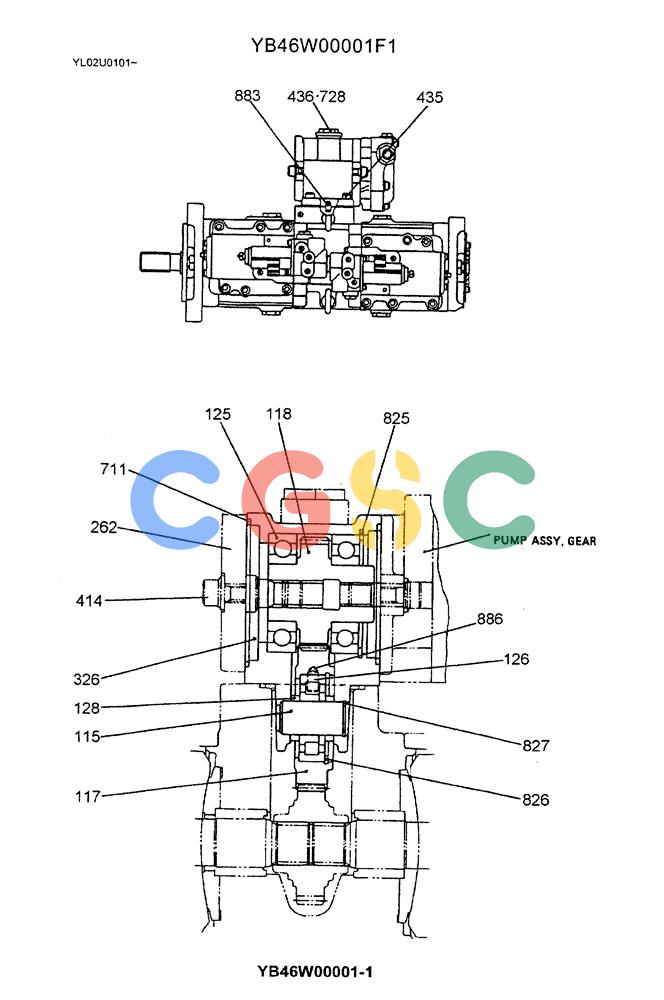

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (06-012) - PUMP ASSY, GEAR (YB46W00001F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
186 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB46W00001F1 | [1] | CASE | KOBASSY, GEAR (Use oring ZD12G09500 at attach point) Superseded by part number: YB46W00001F2 |
| 115. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT, IDLER |
| 117. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR, 2" |
| 118. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR ,3" |
| 125. | NSS | [2] | NOT SOLD SEPARAT | CONBEARING, BALL |
| 126. | NSS | [1] | NOT SOLD SEPARAT | CONBEARING, ROLLER |
| 128. | NSS | [2] | NOT SOLD SEPARAT | CONSPACER, BEARING |
| 262. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 326. | NSS | [1] | NOT SOLD SEPARAT | CONCASE, GEAR |
| 414. | ZS23C10020 | [1] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| 435. | YX46W00001S435 | [1] | SOCKET | KOB |
| 436. | 2441U436S469 | [2] | PLUG | KOB |
| 711. | ZD12G08500 | [2] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.73 x OD 90mm |
| 728. | ZD12P02400 | [3] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 825. | NSS | [1] | NOT SOLD SEPARAT | CONRING, RETAINING |
| 826. | NSS | [1] | NOT SOLD SEPARAT | CONRING, RETAINING |
| 827. | NSS | [1] | NOT SOLD SEPARAT | CONRING, RETAINING |
| 886. | NSS | [2] | NOT SOLD SEPARAT | CONPIN |
