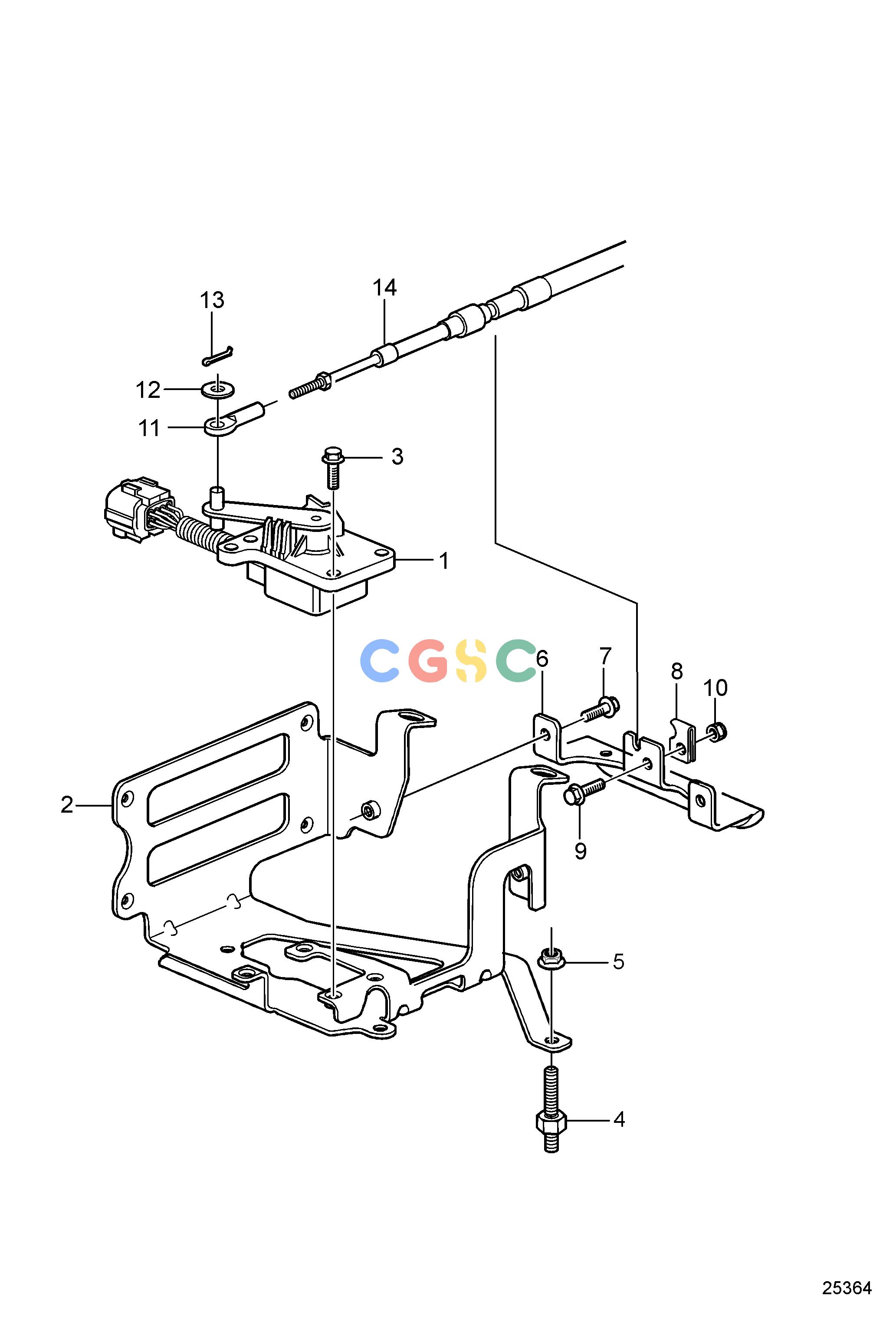

沃尔沃零件查询5.0GXi-270-RControlsThrottle Cable ConnectionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
440 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21560199
|
[1] |
Throttle control
|
|
| 2. |
21399636
|
[1] |
Bracket
|
|
| 3. |
946544
|
[4] |
Flange screw
|
|
| 4. |
3594748
|
[1] |
Spacer screw
|
L=45mm
|
| 4. |
3594749
|
[2] |
Spacer screw
|
L=40mm
|
| 5. |
981124
|
[3] |
Flange nut
|
|
| 6. |
21399642
|
[1] |
Bracket
|
|
| 7. |
946544
|
[2] |
Flange screw
|
|
| 8. |
21238028
|
[1] |
Clip
|
|
| 9. |
965175
|
[1] |
Flange screw
|
|
| 10. |
3842765
|
[1] |
Nut retainer
|
|
| 11. |
3850941
|
[1] |
Adapter
|
|
| 12. |
3852193
|
[1] |
Washer
|
|
| 13. |
3852052
|
[1] |
Split pin
|
|
| 14. |
|
|
|
|
