神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (06-014) - CYLINDER ASSY, BOOM (LEFT HAND) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
482 次

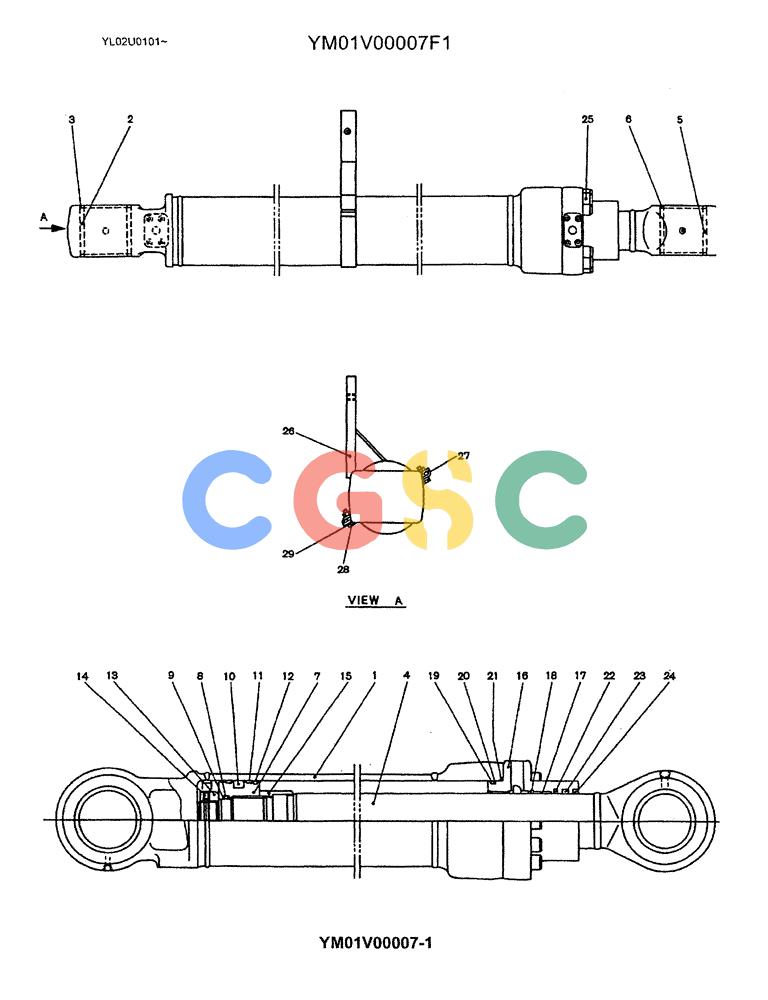

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM01V00007F1 | [1] | BOOM | KOB Superseded by part number: YM01V00007F2 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTUBE ASSY, CYL |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONROD ASSY, PISTON |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD ASSY, CYL |
| 4. | 2438U1109S14 | [1] | BUSHING | KOB |
| 5. | 2438U1105S5 | [1] | SNAP RING | KOB |
| 6. | YM01V00006S006 | [1] | RING | KOB |
| 7. | 2438U1105S7 | [1] | RING | KOB |
| 8. | 2438U1105S8 | [1] | RING | KOB |
| 9. | 2438U1105S35 | [1] | RING | KOB |
| 10. | ZD12G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOBID 14.80 ± 0.20 x OD 19mm |
| 11. | 2438U1949S12 | [1] | RING | KOB |
| 12. | ZS23C14065 | [12] | BOLT,Hex Socket Head, M14 x 65mm | KOBM14x2.0x65mm |
| 13. | YM01V00006S013 | [1] | BEARING | KOBBEARING |
| 14. | YM01V00006S014 | [1] | SEAL | KOB |
| 15. | YM01V00006S015 | [1] | PISTON | KOB |
| 16. | 2438U716S23 | [1] | SEAL | KOBSEALRING |
| 17. | YM01V00006S017 | [2] | BACK-UP RING | KOB |
| 18. | 2438U1949S16 | [2] | SLIDE | KOB |
| 19. | 2438U1949S17 | [2] | SLIDE | KOB |
| 20. | 2438U1946S20 | [1] | SHIM | KOB |
| 21. | YM01V00006S021 | [1] | NUT | KOBM58x3.0mm |
| 22. | 2438U999S21 | [1] | SET SCREW | KOBSet -- M12x1.75mm |
| 23. | 2436U330S16 | [1] | BALL | KOB |
| 24. | YM01V01001P1 | [2] | BUSHING | KOB |
| 25. | YM01V00006S025 | [4] | RING | KOB Superseded by part number: 2438U941S3 |
| 26. | YM01V00006S026 | [1] | BAND | KOB |
| 27. | 2438U1949S26 | [1] | BAND | KOB |
| 28. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 29. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| . . | YM01V00006R100 | [1] | REPAIR KIT | KOB |
| . . | YM01V00006R200 | [1] | REPAIR KIT | KOB |
| . . | YM01V00006R300 | [1] | REPAIR KIT | KOB |
| . . | YM01V00006R400 | [1] | CYLINDER | KOB |
| . . | YM01V00006R500 | [1] | CYLINDER | KOB |
| . . | YM01V00006R600 | [1] | CYLINDER HEAD | KOB |
