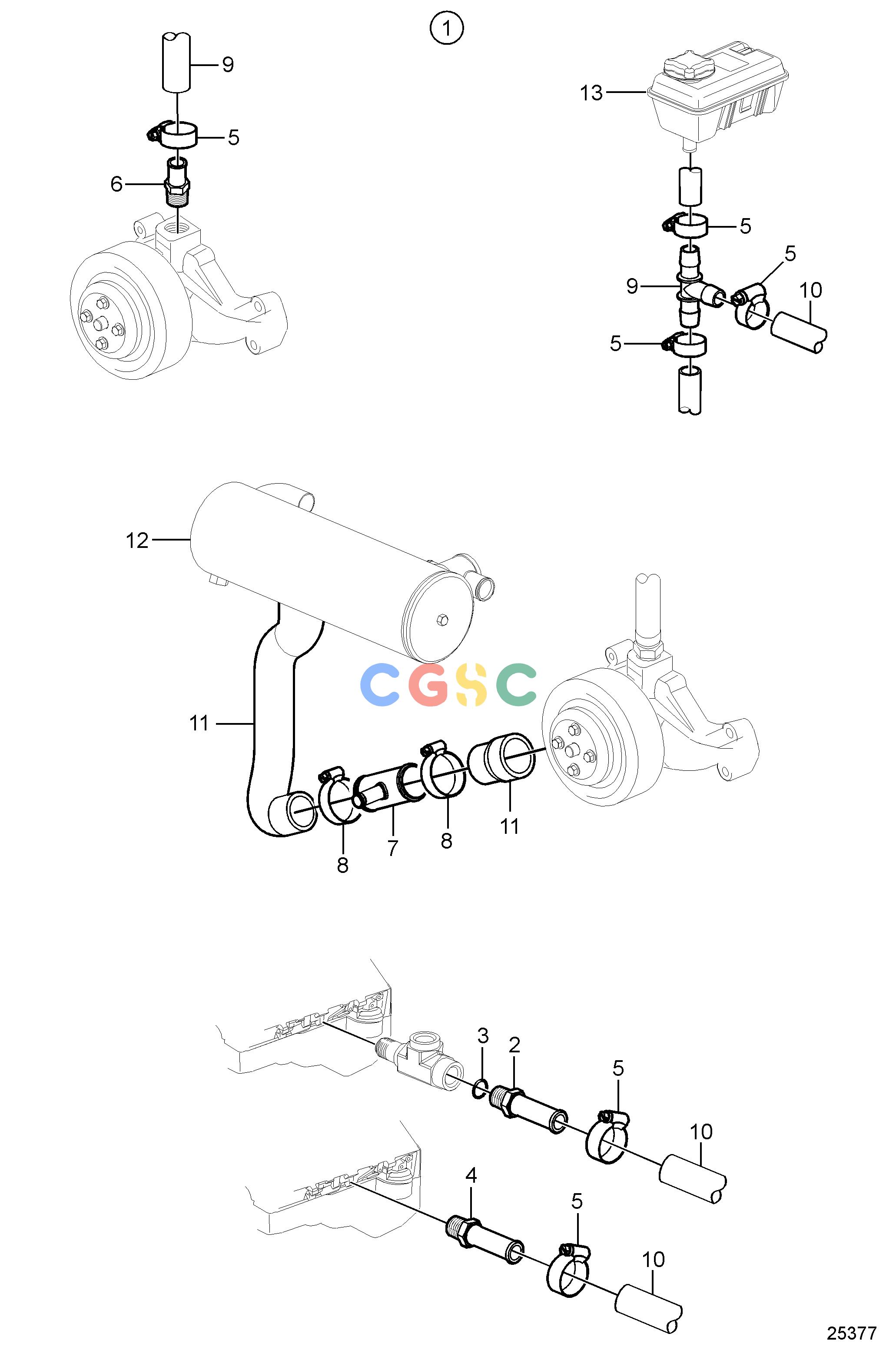

沃尔沃零件查询5.0GXi-270-RCooling SystemHot Water OutletEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
921 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21527832
|
[1] |
Kit
|
Kit has other parts that are not used on this engine
|
| 2. |
40005443
|
[1] |
Nipple
|
7/16'' - 14 unc
|
| 3. |
976970
|
[1] |
O-ring
|
|
| 4. |
856483
|
[1] |
Hose connection
|
1/4''-18 NPTF
|
| 5. |
3852602
|
[4] |
Hose clamp
|
|
| 6. |
3818035
|
[1] |
Fitting
|
|
| 7. |
3863068
|
[1] |
T-pipe
|
|
| 8. |
3854978
|
[2] |
Hose clamp
|
|
| 9. |
3860613
|
[1] |
T-nipple
|
|
| 10. |
|
|
|
Hose not supplied with kit.
|
| 11. |
|
|
|
Cut, Circulation pump to heat exchanger
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
