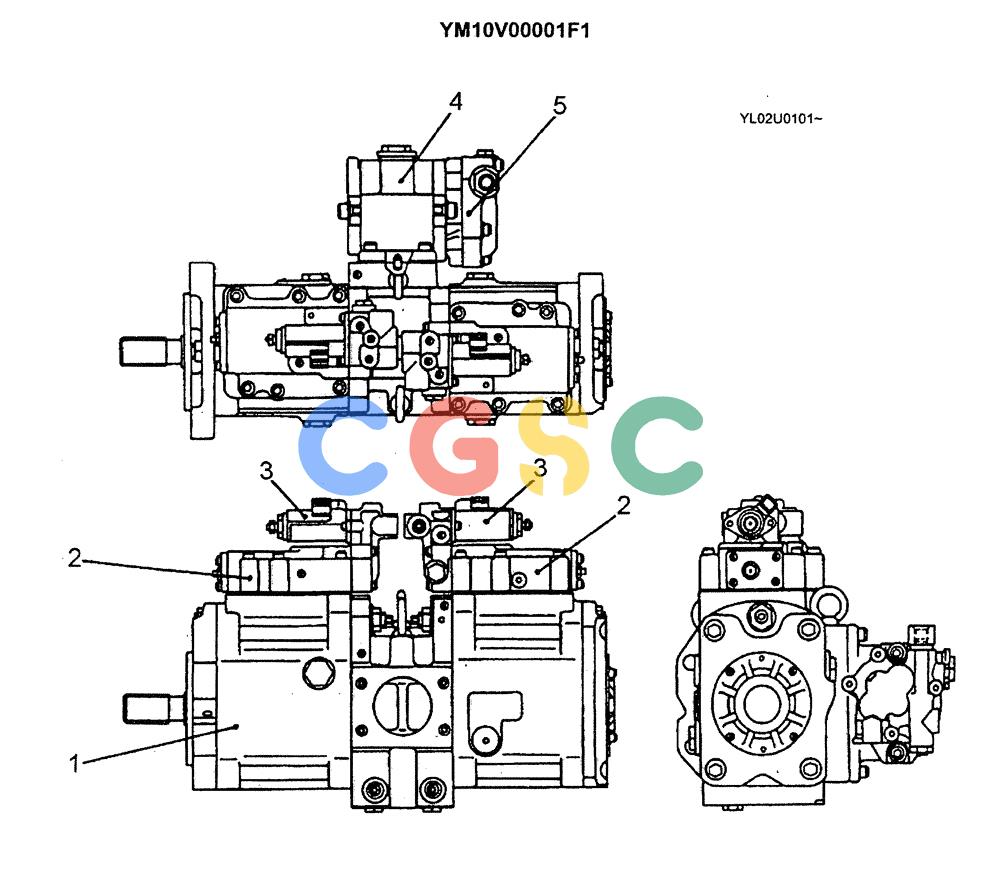

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (06-017) - PUMP ASSY, HYD (YM10V00001F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
682 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM10V00001F1 | [1] | PUMP | KOBIncls. Refs. 1-5 Superseded by part number: YM10V00001F2 |
| 1. | YM10V00002F1 | [1] | PUMP | KOBSee Figure 06-018, Not serviced - Order upper assembly |
| 2. | YM10V01001F1 | [2] | REGULATOR | KOBSee Figure 06-019 |
| 3. | YN35V00018F2 | [1] | SOLENOID VALVE | KOBSee Figure 06-031 |
| 4. | YB46W00001F1 | [1] | CASE | KOBSee Figure 06-012 (Use oring ZD12G09500 at attach point) Superseded by part number: YB46W00001F2 |
| 5. | YX10V00004F1 | [1] | PUMP | KOBSee Figure 06-036 Superseded by part number: 77279971, YX10V00004F2 |
