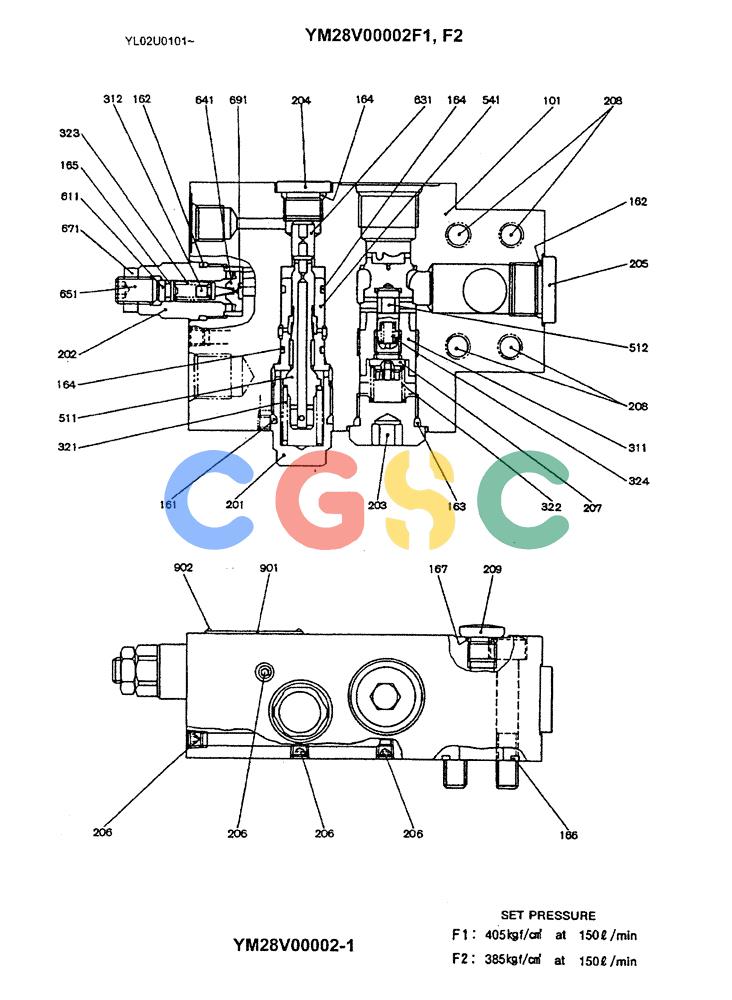

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (06-021) - VALVE ASSY, HOLDING, P/N YM28V00002F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
142 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM28V00002F1 | [1] | VALVE | KOBVALVE ASSY, HOLDING (405kgf/cm2 at 150 l / min) Superseded by part number: YN28V00014F1 |
| . . | YM28V00002F2 | [1] | VALVE | KOB |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 161. | ZD12P02290 | [1] | O-RING | KOB |
| 162. | ZD12P02200 | [2] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 163. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 164. | ZD12P01600 | [3] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 165. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 166. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 167. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 201. | YM28V00001S201 | [1] | PLUG | KOB |
| 202. | 2436R683S201 | [1] | PLUG | KOB |
| 203. | YN30V00001S556 | [1] | PLUG | KOB |
| 204. | 2436U1832S651 | [1] | PLUG | KOBM18x1.5mm |
| 205. | YM28V00001S205 | [1] | PLUG | KOB |
| 206. | 2441U722S490 | [4] | PLUG | KOB1/16" NPTF |
| 207. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 20S. | ZS23C10060 | [4] | SCREW,Hex Socket Head, M10 x 60mm | KOBM10x1.50x60mm |
| 209. | YW30V00001S157 | [1] | PLUG | KOB |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET |
| 312. | 2436R682S401 | [1] | POPPET | KOB |
| 321. | YM28V00001S321 | [1] | SPRING | KOB |
| 322. | YM28V00001S322 | [1] | SPRING | KOB |
| 323. | 2436R683S1 | [1] | SPRING | KOB |
| 324. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 512. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 541. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING |
| 611. | 2436R682S521 | [1] | SEAT | KOB |
| 631. | YM28V00001S631 | [1] | PISTON | KOB |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 651. | 2436R683S651 | [1] | SET SCREW | KOB |
| 671. | ZN18C12007 | [1] | NUT | KOBM12x1.75mm |
| 691. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
| 901. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| 902. | NSS | [2] | NOT SOLD SEPARAT | CONPIN |
