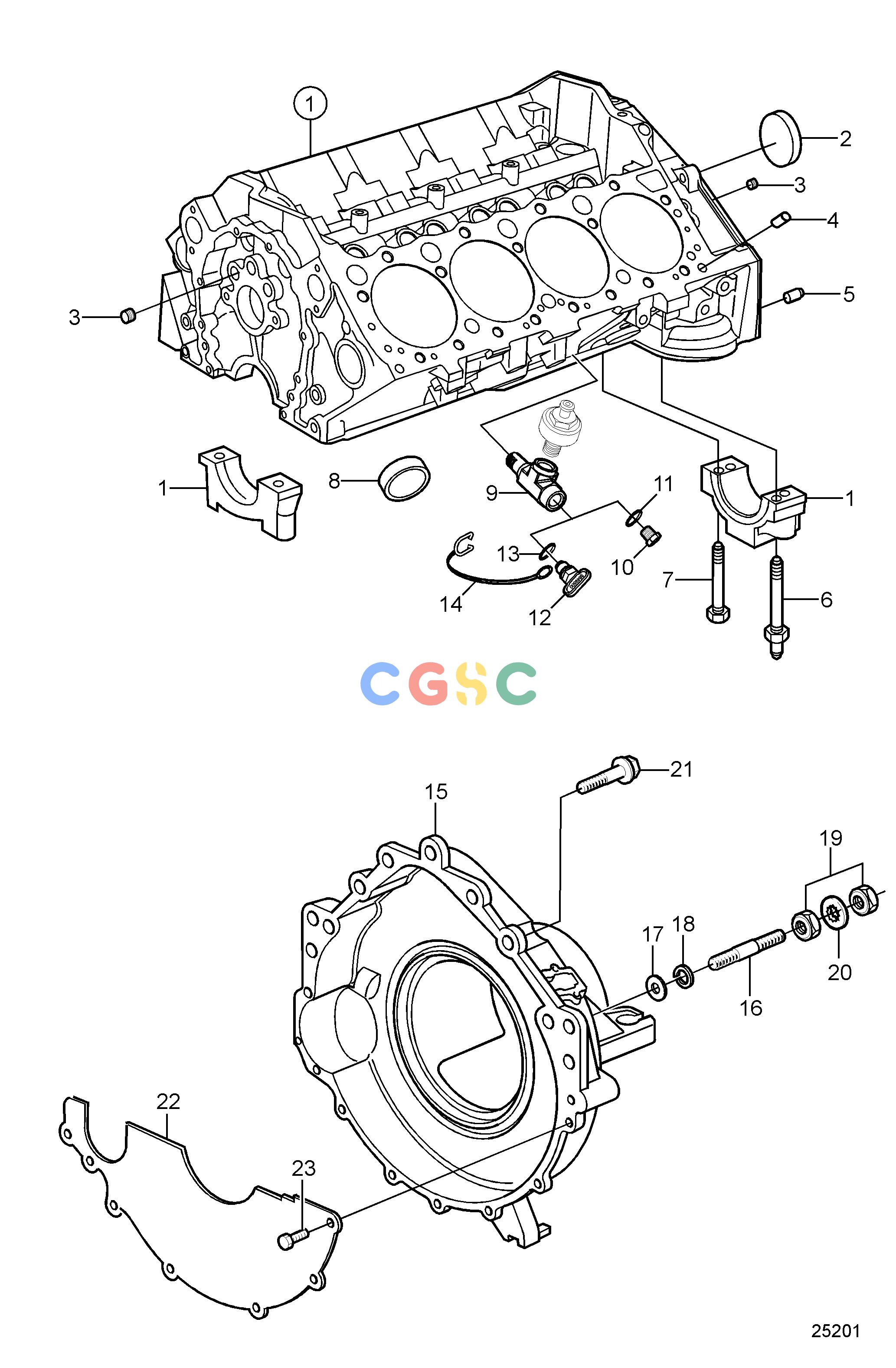

沃尔沃零件查询5.0GXi-270-REngineCylinder Block and Flywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
408 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
See ''Longblock'' section
|
| 2. |
3853209
|
[1] |
Core plug
|
|
| 3. |
952075
|
[1] |
Plug
|
|
| 4. |
3853114
|
[4] |
Locating pin, cylinder head
|
|
| 5. |
3856001
|
[2] |
Pin, flywheel housing
|
|
| 6. |
3862354
|
[6] |
Stud
|
|
| 7. |
3862355
|
[10] |
Bolt
|
|
| 8. |
3852100
|
[8] |
Core plug
|
|
| 9. |
3593571
|
[1] |
Fitting
|
Starboard
|
| 10. |
40005082
|
[2] |
Plug
|
|
| 11. |
976970
|
[2] |
O-ring
|
|
| 12. |
21114522
|
[2] |
Drain plug
|
|
| 12. |
3849500
|
[2] |
Plug
|
Replaced by 21114522, Not sold separately
|
| 13. |
976970
|
[2] |
O-ring
|
|
| 14. |
3849892
|
[2] |
Retainer
|
|
| 15. |
21157924
|
[1] |
Flywheel housing
|
Replaced by next part number
|
| 15. |
|
|
|
|
| 16. |
3852483
|
[3] |
Stud
|
|
| 17. |
980933
|
[3] |
Washer
|
|
| 18. |
3852002
|
[3] |
Tab washer
|
|
| 19. |
3852065
|
[6] |
Nut
|
3/8-16 UNC
|
| 20. |
3852070
|
[6] |
Washer
|
|
| 21. |
3853392
|
[2] |
Flange screw
|
L=2.50'' (64mm)
|
| 21. |
3860582
|
[1] |
Flange screw
|
L=1.25'' (32mm)
|
| 22. |
3854604
|
[1] |
Cover
|
|
| 23. |
3852421
|
[4] |
Screw
|
|
