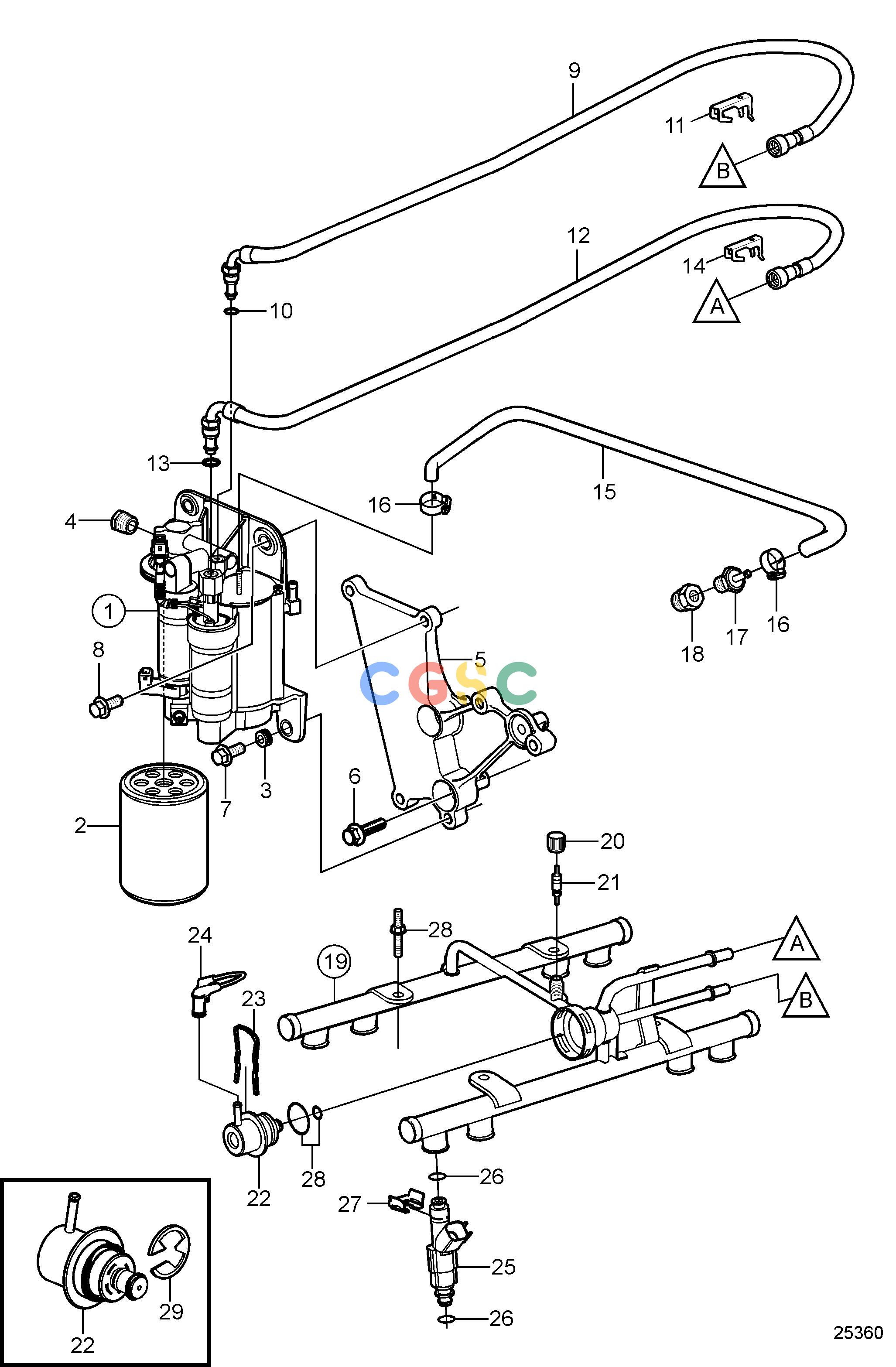

沃尔沃零件查询5.0GXi-270-RFuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
900 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21545138
|
[1] |
Fuel pump
|
Replaced by next part number
|
| 1. |
21608511
|
[1] |
Fuel pump
|
|
| 1. |
3588865
|
[1] |
Fuel pump kit
|
High pressure fuel pump
|
| 2. |
3847644
|
[1] |
Fuel filter
|
|
| 3. |
3861396
|
[4] |
Rubber bushing
|
|
| 4. |
3857816
|
[1] |
Bushing
|
|
| 5. |
21358873
|
[1] |
Bracket
|
|
| 6. |
3850753
|
[3] |
Flange screw
|
|
| 7. |
982702
|
[2] |
Flange screw
|
|
| 8. |
946472
|
[2] |
Flange screw
|
|
| 9. |
3888727
|
[1] |
Fuel hose
|
|
| 10. |
3850424
|
[1] |
O-ring
|
|
| 11. |
3887195
|
[1] |
Locking clip
|
|
| 12. |
3888725
|
[1] |
Fuel hose
|
|
| 13. |
3850423
|
[1] |
O-ring
|
|
| 14. |
3887198
|
[1] |
Locking clip
|
|
| 15. |
3807072
|
[1] |
Kit
|
|
| 15. |
|
|
|
|
| 16. |
3860413
|
[2] |
Hose clamp
|
|
| 17. |
3860290
|
[1] |
Nipple
|
|
| 18. |
3861926
|
[1] |
Tube fitting
|
|
| 19. |
3858966
|
[1] |
Fuel pipe
|
|
| 20. |
3858972
|
[1] |
Cap
|
|
| 21. |
3858971
|
[1] |
Valve
|
|
| 22. |
3858967
|
[1] |
Governor
|
|
| 23. |
3858968
|
[1] |
Clip
|
|
| 24. |
3858974
|
[1] |
Hose
|
|
| 25. |
21141691
|
[8] |
Injector
|
|
| 26. |
3858981
|
[1] |
O-ring
|
Includes 16pcs o-rings for injectors and 2pcs o-rings for pressure regulator.
|
| 27. |
3858970
|
[8] |
Retainer
|
|
| 28. |
3858973
|
[4] |
Bolt
|
|
| 29. |
21491831
|
[1] |
Clip
|
|
