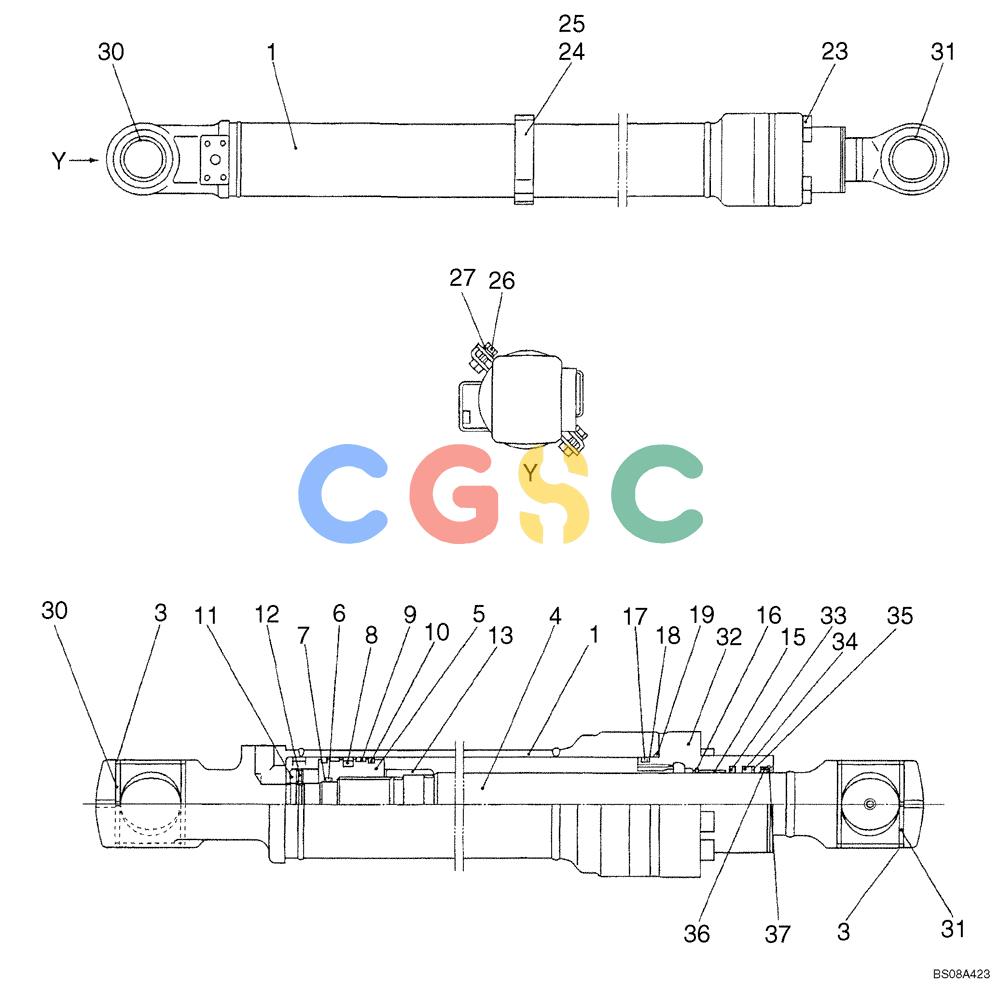

| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTube, Cylinder |
| 3. | 2438U1097S29 | [4] | SEAL | KOBDust |
| 5. | YW01V00003S029 | [1] | PISTON | KOB |
| 6. | YW01V00001S008 | [1] | O-RING | KOB |
| 7. | YW01V00001S009 | [2] | BACK-UP RING | KOB |
| 8. | YW01V00003S030 | [1] | SEAL | KOBPiston Superseded by part number: YW01V00001S031 |
| 9. | YW01V00001S032 | [2] | RING | KOBWear |
| 10. | YW01V00001S012 | [2] | RING | KOB |
| 11. | YW01V00001S013 | [1] | NUT | KOBPiston |
| 12. | YN01V00001S014 | [1] | SCREW | KOBSet |
| 13. | YX01V00005S013 | [1] | RING | KOBCushion |
| 15. | 2438U1097S18 | [1] | BUSHING | KOB |
| 16. | B38K0038E10 | [1] | CLIP | KOB |
| 17. | ZD12G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOBID 89.40 ± 0.77 x OD 95mm |
| 18. | YW01V00001S020 | [1] | RING | KOBBack-Up |
| 19. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOBO-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 23. | ZS23C14065 | [8] | BOLT,Hex Socket Head, M14 x 65mm | KOBM14x2.0x65mm |
| 24. | YW01V00003S024 | [1] | BRACKET | KOBBand |
| 25. | YW01V00003S025 | [1] | BRACKET | KOBBand |
| 26. | ZS16C10030 | [2] | CAPSCREW | KOBSCREW M10x1.50x30mm Superseded by part number: ZS18C10030 |
| 27. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 30. | YN01V01086P1 | [1] | BUSHING,60mm ID x 80mm OD x 70mm L | KOB |
| 31. | YN01V01092P1 | [1] | BUSHING,60.2mm ID x 70mm OD x 80mm L | KOBBushing |
| 32. | YX01V00005S032 | [1] | COVER | KOBCover, Rod |
| 33. | YY01V00005S029 | [1] | SEAL | KOBSeal |
| 34. | YY01V00005S030 | [1] | PACKING | KOBPacking, Rod |
| 35. | YY01V00005S031 | [1] | BACK-UP RING | KOBRing, Back-Up |
| 36. | YY01V00005S032 | [1] | SEAL | KOBSeal, Dust Superseded by part number: 2438U807S15 |
| 37. | B38K0039E11 | [1] | CLAMP | KOB |
| K. | YX01V00005R200 | [1] | REPAIR KIT | KOBContains Items 6x1, 8x1, 7x2, 9x2, 10x2 Superseded by part number: YW01V00003R200 |
| K. | YX01V00005R800 | [1] | REPAIR KIT | KOBContains Items 1x1, 30x1 |
| K. | YX01V00005R900 | [1] | REPAIR KIT | KOBPiston Rod Kit, Contains Items 4x1, 31x1 |
| K. | YY01V00005R600 | [1] | REPAIR KIT | KOBContains Items 17x1, 18x1, 19x1, 33x1, 34x1, 35x1, 36x1 |
| K. | YY01V00005R700 | [1] | REPAIR KIT | KOBContains Items 6x1, 8x1, 7x2, 9x2, 10x2, 17x1, 18x1, 19x1, 33x1, 34x1, 35x1, 36x1 |
