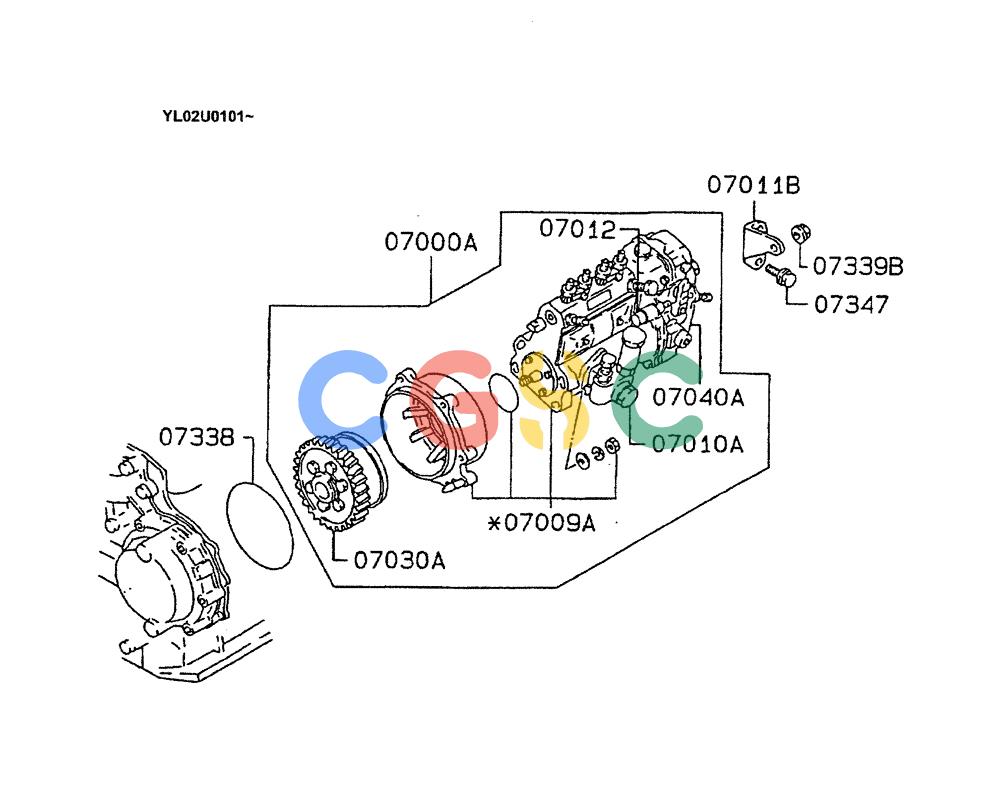

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (07-020) - FUEL INJECTION PUMP GENERAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
986 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 07000A. | VAME440014 | [1] | PUMP | KOBPUMP ASSY, FUEL INJECTION,ALL,0001-1-,ZEXEL |
| 07009A. | NSS | [1] | NOT SOLD SEPARAT | CONBODY ASSY, INJECTION PUMP,ALL,0001-1-,NS |
| 07010A. | VAME742617 | [1] | PUMP | KOBPUMP ASSY, INJECTION PUMP FUEL FEED,,ALL,0001-1- |
| 07011B. | VAME217153 | [1] | BRACKET, INJECTION PUMP,,ALL,0001-1- | |
| 07012. | VAME741568 | [1] | CAP | KOBCAP, INJECTION PUMP,ALL,0001-1- |
| 07030A. | VAME755119 | [1] | TIMER | KOBTIMER ASSY, INJECTION PUMP,ALL,0001-1- |
| 07040A. | VAME755440 | [1] | GOVERNOR ASSY, INJECTION PUMP,ALL,0001-1-,RSV | |
| 07338. | VAMF520423 | [1] | O-RING | KOBO-RING, INJECTION PUMP,ALL,0001-1-,135 Superseded by part number: VAF315313500 |
| 07339B. | VAMF434105 | [1] | NUT | KOBNUT, INJECTION PUMP,ALL,0001-1-,FLANGE,10 |
| 07347. | VAMH000713 | [2] | BOLT | KOBBOLT, INJECTION PUMP,ALL,0001-1-,FLANGE.10X20 |
