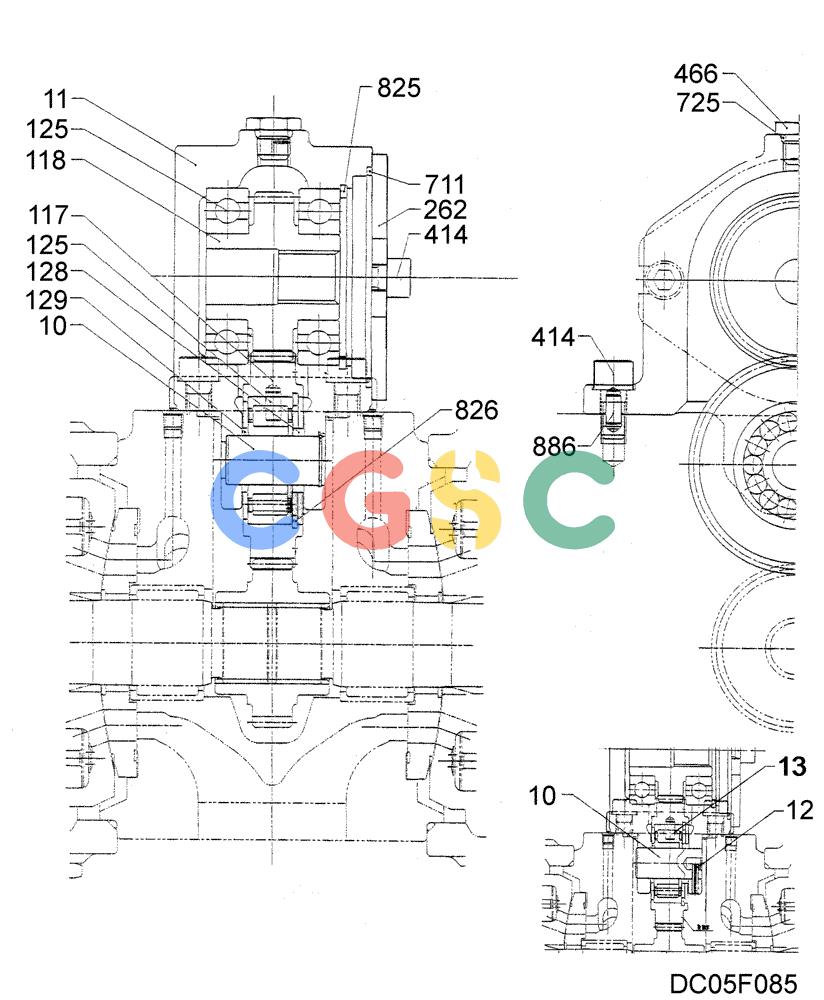

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (07-015[00]) - CASE ASSY, GEAR (ROTATION) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
542 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10. | NSS | [1] | NOT SERVICED SEPARATELY | CONSHAFT |
| 12. | ZP26D04020 | [1] | ROLL PIN | KOBOD 04 x 20mm Long |
| 262. | YN10V00011S316 | [1] | GUARD | KOBCOVER |
| 414. | ZS23C10020 | [6] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| 466. | YN46W00002S466 | [1] | PLUG | KOBPLUG |
| 711. | ZD12G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.73 x OD 90mm |
| 725. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 825. | ZR26X07200 | [1] | SNAP RING | KOB |
| 826. | ZR26X05200 | [1] | RING | KOB |
