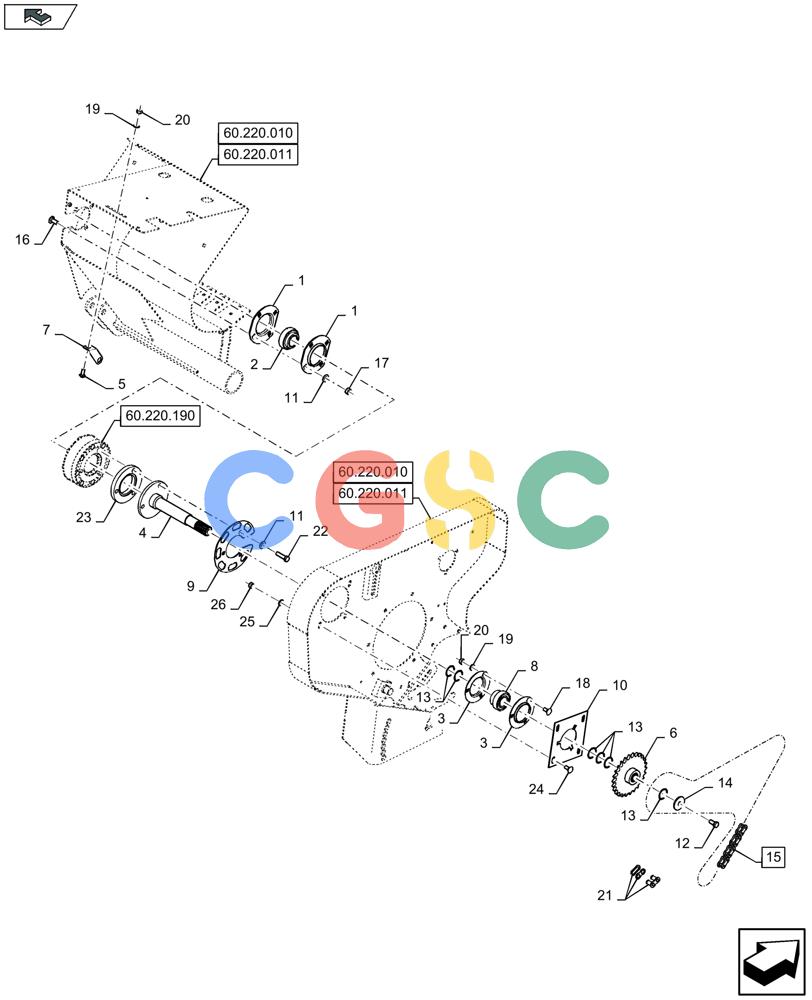

| 1. |
86620027
|
[2] |
FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk
|
NH
|
| 2. |
84240146
|
[1] |
BEARING,40mm ID x 80mm OD x 21mm W
|
PLO
|
| 3. |
36403
|
[2] |
BEARING HOUSING
|
GI
Superseded by part number: 578189
|
| 4. |
47500242
|
[1] |
SHAFT
|
ZED
|
| 4. |
47500119
|
[1] |
SHAFT
|
ZED
|
| 5. |
86633356
|
[1] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 6. |
84572644
|
[1] |
SPROCKET
|
ZED
|
| 7. |
84348545
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C149
|
| 7. |
47934522
|
[1] |
SUPPORT
|
ZED
, Start Serial: D150
|
| 8. |
322360
|
[1] |
BALL BEARING,35mm ID x 72mm OD x 19mm W
|
ZED
|
| 9. |
87681337
|
[1] |
PLATE
|
ZED
|
| 10. |
9850764
|
[1] |
PANEL
|
ZED
, Serial Range: -C149
|
| 10. |
47961702
|
[1] |
PLATE
|
ZED
, Start Serial: D150
|
| 11. |
140046
|
[7] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 12. |
9706687
|
[1] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 13. |
84429871
|
[6] |
WASHER
|
PLO
|
| 14. |
9801096
|
[1] |
WASHER,13.5mm ID x 50.8mm OD x 4.76mm Thk
|
NH
|
| 15. |
84299019
|
[1] |
CHAIN,120 Links 19.05mm = 2286mm L
|
ZED
Incl 21, Serial Range: -C098
|
| 15. |
47663325
|
[1] |
CHAIN,120 Links 19.05mm = 2286mm L
|
ZED
Incl 21, Serial Range: -F099130
|
| 15. |
47794657
|
[1] |
CHAIN
|
PLO
Incl 21, Start Serial: D131
|
| 16. |
120044
|
[4] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 17. |
9706685
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 18. |
338949
|
[3] |
CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
|
| 19. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 20. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 21. |
165590
|
[1] |
CONNECTING LINK
|
PA
, Serial Range: -C130 Superseded by part number: 241-1316
|
| 21. |
47783767
|
[1] |
CONNECTING LINK
|
ZED
, Start Serial: D131
|
| 22. |
9628065
|
[3] |
SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8
|
NH
, Start Serial: D099
|
| 23. |
47690582
|
[1] |
SPACER
|
ZED
, Serial Range: -F099106
|
| 23. |
47745546
|
[1] |
SPACER
|
ZED
, Start Serial: D107
|
| 24. |
86595832
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd
|
NH
, Start Serial: D150
|
| 25. |
86625266
|
[4] |
WASHER,17.5mm ID x 30mm OD x 4mm Thk
|
GI
, Start Serial: D150
|
| 26. |
86000441
|
[4] |
NUT,M16 x 2.0, Cl 8
|
NH
, Start Serial: D150
|
