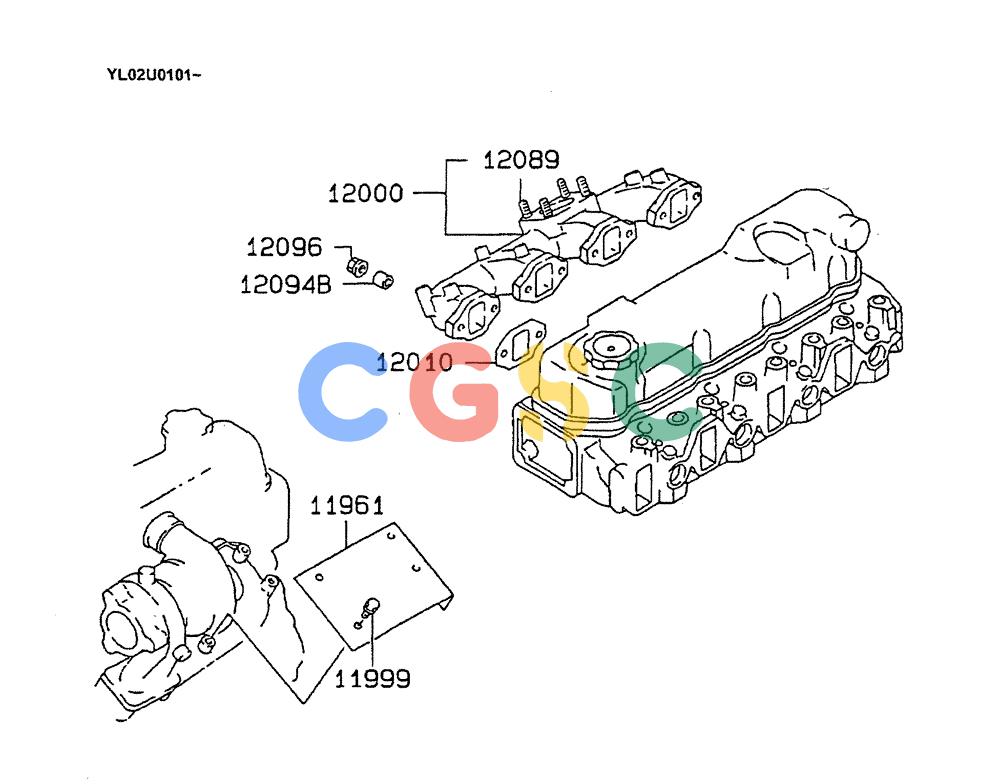

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (07-027) - EXHAUST MANIFOLD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
415 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 11961. | VAME080482 | [1] | INSULATOR,ENG AIR INTAKE PIPE HEAT,ALL,0001-1- | |
| 11999. | VAMH000392 | [4] | BOLT | KOBBOLT, ENG AIR INTAKE LINE,ALL,0001-1-,WASHER ASSEMBLED,8X12 |
| 12000. | VAME080450 | [1] | EXHAUST MANIFOLD | KOBMANIFOLD, EXHAUST,ALL,0001-1- |
| 12010. | VAME014349 | [4] | GASKET | KOBGASKET, EXHAUST MANIFOLD,ALL,0001-1- |
| 12089. | VAMF407726 | [4] | STUD | KOBSTUD, EXHAUST MANIFOLD,ALL,0001-1-,10X25 |
| 12094B. | VAME210059 | [8] | SPACER | KOBSPACER, EXHAUST MANIFOLD,ALL,0001-1-,T=21 |
| 12096. | VAMH004054 | [8] | NUT | KOB Superseded by part number: 134868A1 |
