纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (35.310.AS) - VALVE ASSY, SOLENOID New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
416 次

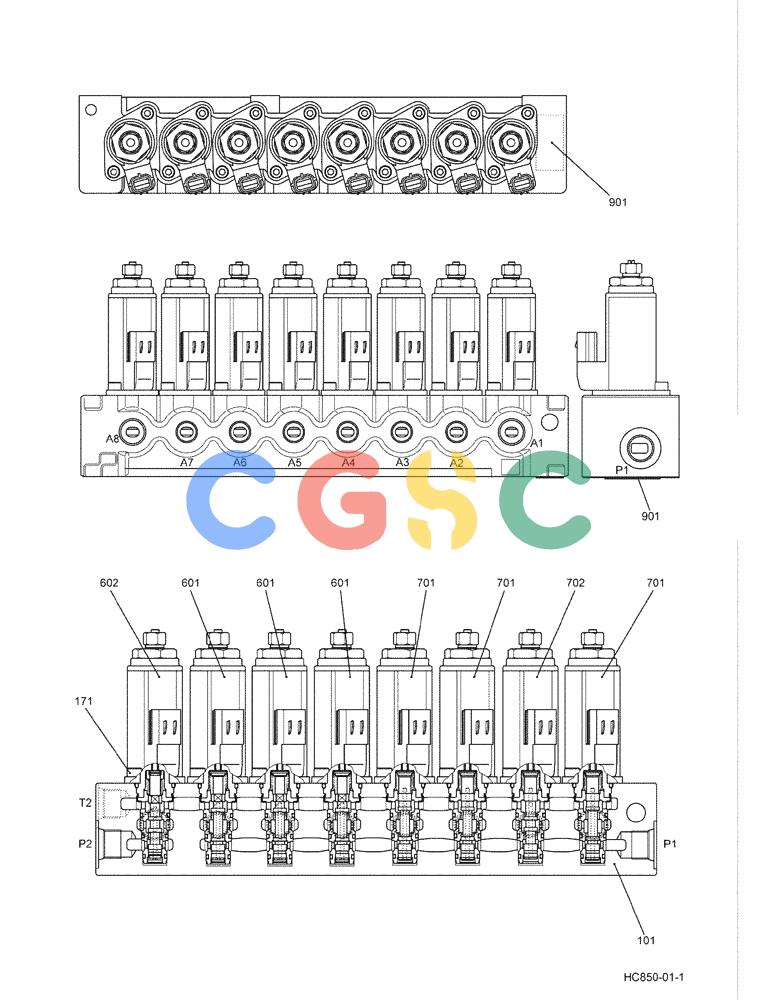

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00047F1 | [1] | HYDRAULIC VALVE | SMIncl 101 - 901 Superseded by part number: YN35V00047F3 |
| 101. | YN35V00047S101 | [1] | CASE | KOB |
| 171. | YX35V00002S171 | [16] | SCREW,Hex Socket Head, M5 x 12mm | KOBM05x0.8x12mm Superseded by part number: ZS23C05012 |
| 601. | YN35V00048F1 | [3] | SOLENOID VALVE | KOBSolenoid |
| 602. | YN35V00049F1 | [1] | SOLENOID VALVE | KOBSolenoid |
| 701. | YN35V00050F1 | [3] | SOLENOID VALVE,Cartridge W/Coil | KOBSolenoid |
| 702. | YN35V00051F1 | [1] | SOLENOID VALVE | KOBSolenoid |
| 901. | NA | [1] | NOT SERVICED | FORName Plate |
