纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-002[02]) - CRANKCASE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
525 次

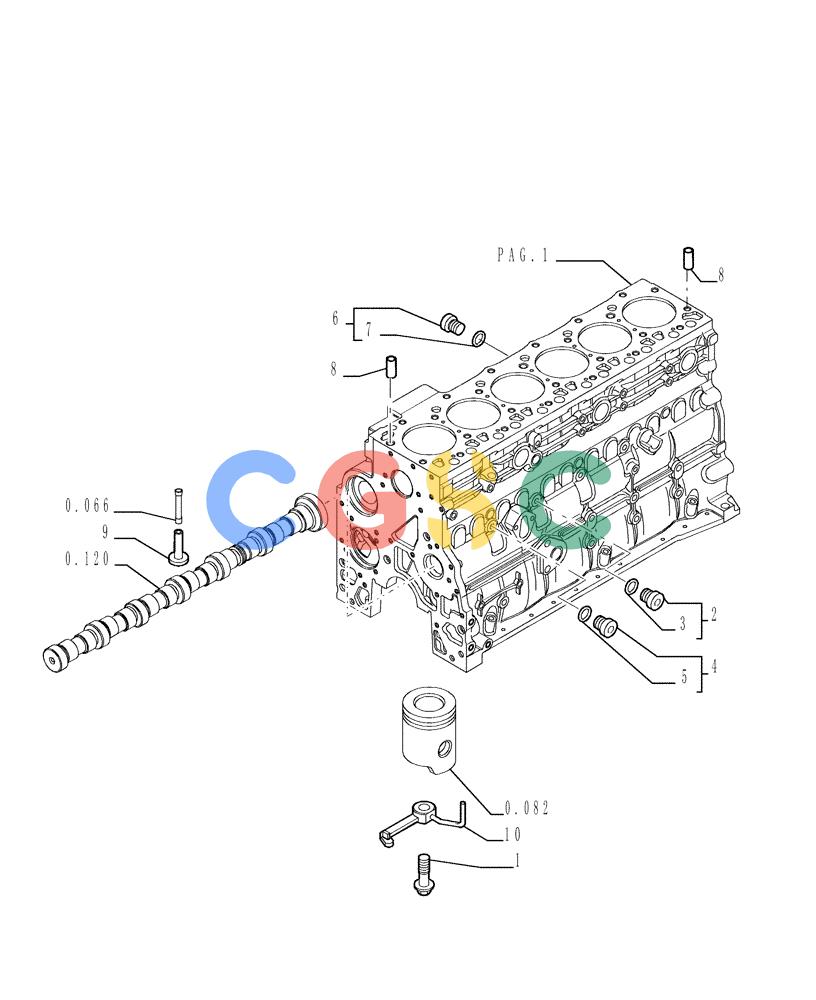

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4894218 | [6] | SCREW,Special, M8 x 20 | TORM08x1.25x20mm |
| 2. | 4895605 | [1] | HEX SOCKET PLUG,M14 x 1.5 | TORM14x1.50mm (Incls. O-Ring 4899115) |
| 3. | 4899115 | [1] | O-RING,2.2mm Thk x 11.3mm ID | TOR(Part of 4895605), ID 11.3 x 2.2 LND |
| 4. | 4899009 | [1] | PLUG,M10 x 1.5 | TORM10x1.50mm (Includes Ref 5) |
| 5. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TOR(Part of 4899009), ID 8.1 x 1.6 LND |
| 6. | 4895392 | [3] | HEX SOCKET PLUG,M18 x 1.5 | TORM18x1.50mm (Includes Ref 7) |
| 7. | 4895393 | [1] | O-RING,2.2mm Thk x 15.3mm ID | TOR(Part of 4895392), ID 15.3 x OD 19.7 x Th 2.2mm |
| 8. | 4895049 | [2] | DOWEL,M16.05 x 10 | TOR |
| 9. | J931623 | [12] | TAPPET | CAS |
| 10. | 2852202 | [6] | PISTON COOLING NOZZLE | TORIncludes Ref 1 Superseded by part number: 504054307 |
