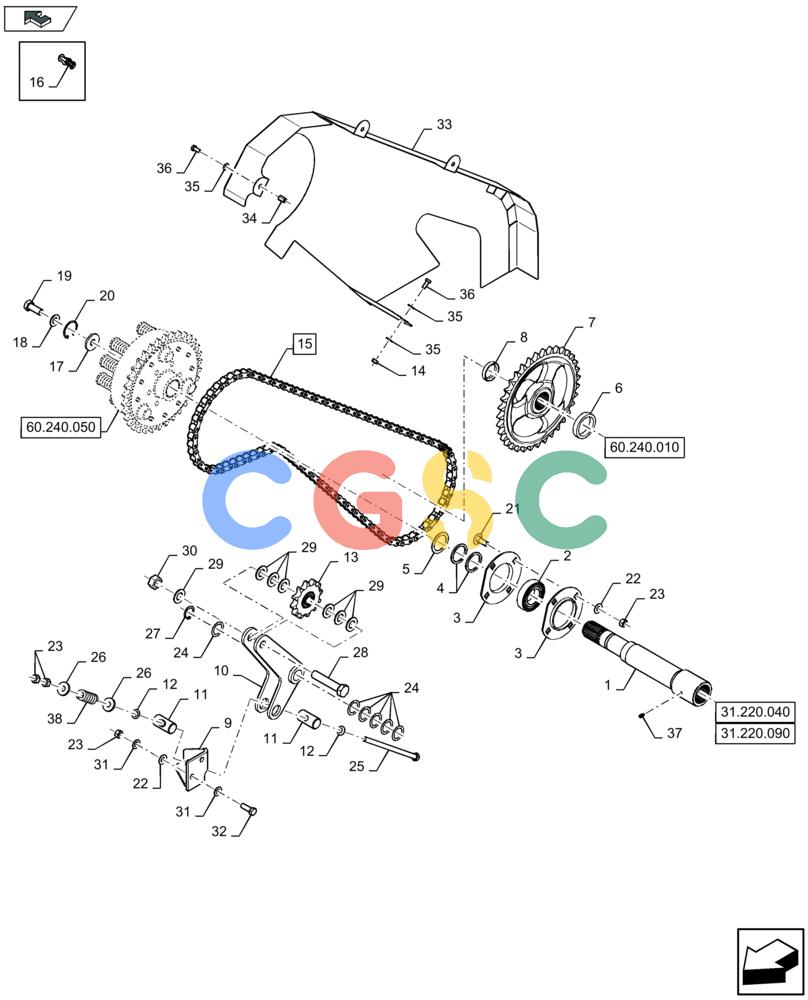

| 1. |
84285851
|
[1] |
DRIVE SHAFT
|
ZED
|
| 1. |
84285853
|
[1] |
DRIVE SHAFT
|
ZED
|
| 2. |
84280709
|
[1] |
BEARING
|
ZED
Superseded by part number: 340411240
|
| 3. |
9839342
|
[1] |
SET
|
ZED
|
| 4. |
84062085
|
[2] |
WASHER
|
ZED
|
| 5. |
84280927
|
[1] |
SHIM
|
ZED
|
| 6. |
84533305
|
[1] |
RING
|
ZED
|
| 7. |
84261366
|
[1] |
SPROCKET
|
ZED
|
| 8. |
9839353
|
[1] |
SPACER,40.3mm ID x 52mm OD x 10mm L
|
ZED
, Serial Range: -C055
|
| 8. |
84074554
|
[1] |
RING
|
ZED
, Start Serial: D056
|
| 9. |
84607884
|
[1] |
SUPPORT
|
ZED
|
| 10. |
84339094
|
[1] |
TENSIONER
|
ZED
|
| 11. |
84607946
|
[2] |
PIN,30mm OD x 60mm L
|
ZED
|
| 12. |
84607945
|
[2] |
WASHER
|
ZED
|
| 13. |
9839348
|
[1] |
IDLER GEAR,12T
|
ZED
|
| 14. |
9706690
|
[1] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 15. |
47615677
|
[1] |
CHAIN,106 Links x 25.4mm = 2692.4mm L
|
ZED
Incl 16
|
| 16. |
47615678
|
[1] |
CONNECTING LINK
|
ZED
|
| 17. |
84041822
|
[1] |
WASHER,17mm ID x 46.7mm OD x 5mm Thk
|
ZED
|
| 18. |
140048
|
[1] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 19. |
43168
|
[1] |
BOLT,Hex, M16 x 40mm, Cl 8.8
|
NH
Superseded by part number: 86509867
|
| 20. |
300647
|
[1] |
SNAP RING,M47, Int
|
NH
|
| 21. |
328430
|
[4] |
CARRIAGE BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
PA
Superseded by part number: 328754
|
| 22. |
140046
|
[6] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 23. |
9706685
|
[8] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 24. |
748212
|
[10] |
SHIM,30mm ID x 42mm OD x 1mm Thk
|
ZED
|
| 25. |
412676
|
[1] |
BOLT,Hex, M12 x 1.75 x 180mm, Cl 10.9
|
ZED
, Serial Range: -C098
|
| 25. |
87646160
|
[1] |
BOLT,Hex, M12 x 240mm, Cl 10.9
|
ZED
, Start Serial: D099
|
| 26. |
543043
|
[1] |
WASHER,13mm ID x 35mm OD x 2.5mm Thk
|
NH
, Serial Range: -C098
|
| 26. |
84014353
|
[2] |
WASHER
|
ZED
, Start Serial: D099
|
| 27. |
370003
|
[1] |
SNAP RING,M30, External
|
NH
|
| 28. |
382101
|
[1] |
BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8
|
NH
|
| 29. |
378247
|
[7] |
WASHER,21mm ID x 39mm OD x 3mm Thk
|
ZED
|
| 30. |
380424
|
[1] |
NUT,M20 x 2.5, Cl 8
|
FOR
|
| 31. |
140223
|
[4] |
WASHER,M13 x 25mm OD x 2mm Thk
|
ZED
|
| 32. |
300389
|
[2] |
BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
NH
Superseded by part number: 628-12035
|
| 33. |
84563211
|
[1] |
PLATE
|
ZED
|
| 34. |
87556072
|
[3] |
NUT,Flng, 11.8mm OD x 19.8mm L
|
ZED
|
| 35. |
322358
|
[5] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 36. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 37. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 38. |
9509233
|
[1] |
SPRING
|
ZED
, Start Serial: D099
|
