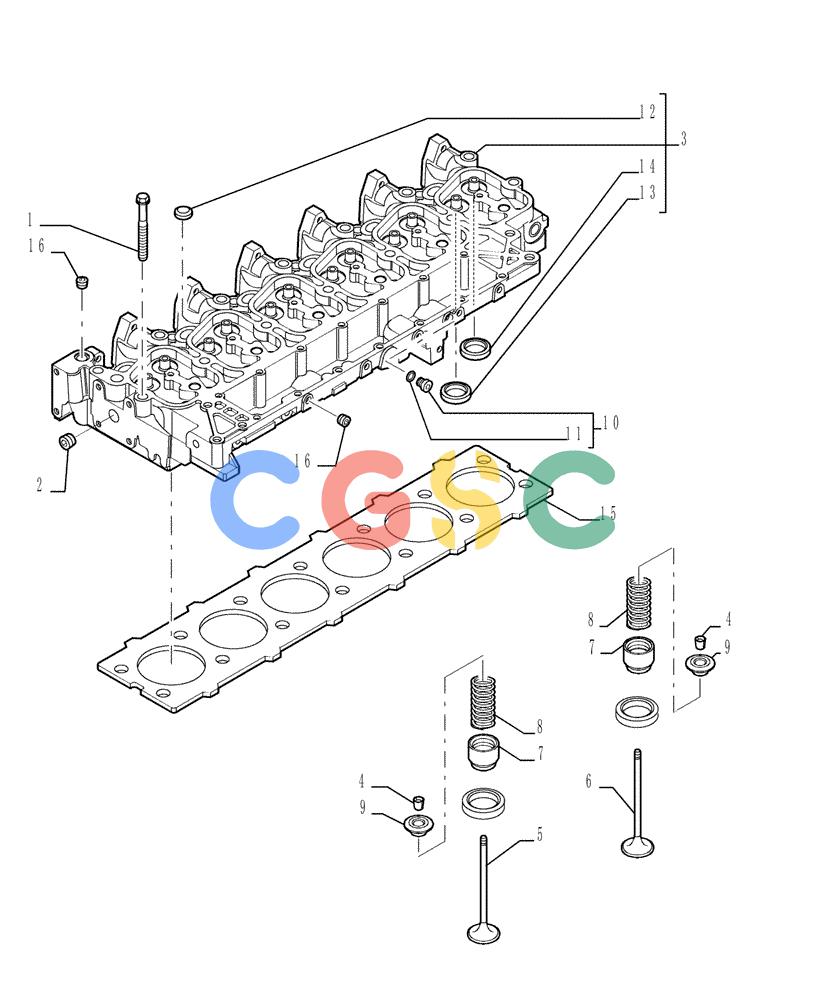

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-006[00]) - CYLINDER HEAD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
678 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4892861 | [6] | CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73 | TORM12x1.25x73mm |
| 1. | 4892859 | [14] | BOLT,Flng, M12 x 1.75 x 143mm | TORM12x1.25x143mm |
| 2. | 4895085 | [1] | EXPANSION PLUG,25.74mm | TOROD 25.74 ± 0.06 x Th 8.13 ± .051mm |
| 3. | 4895765 | [1] | CYLINDER HEAD | TOR- ASSY |
| 4. | 4895183 | [24] | COLLET | TOR |
| 5. | 4895188 | [6] | STD EXHAUST VALVE | TORSTD ENGINE EXHAUST VALVE |
| 6. | 4895187 | [6] | STD INLET VALVE | TORSTD ENGINE INLET VALVE 45.00 ± 0.13 x 129.15 ± 0.018mm Long |
| 7. | 4895347 | [12] | SEAL | TOR |
| 8. | 4895215 | [12] | VALVE SPRING | TORFree Length 63.50mm -- Alternate with 28314726 |
| 9. | 4895184 | [12] | RETAINER | TORValve Spring -- OD 34.0 x 14.5 ± 0.25mm Long |
| 10. | 4899009 | [1] | PLUG,M10 x 1.5 | TORM10x1.50mm (Incls. O-Ring 4899072) |
| 11. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TOR(Part of 4899009), ID 8.1 x 1.6 LND |
| 12. | 4895179 | [3] | EXPANSION PLUG,M20.93 | TOROD 20.93 ± 0.03 x Th 6.35 ± .051mm |
| 13. | 4897178 | [6] | VALVE SEAT | TORExhaust -- OD 43.726 ± 0.013 x Th 6.71 ± 0.06mm |
| 14. | 4897179 | [6] | VALVE SEAT | TORIntake -- OD 47.076 ± 0.013 x Th 6.9 ± 0.06mm |
| 15. | 2830922 | [1] | CYLINDER HEAD GASKET,1.4mm Thk | TORSP=1.25 |
| 15. | 2830923 | [1] | CYLINDER HEAD GASKET,1.15mm Thk | TORSP=1.15 |
| 16. | 4895078 | [5] | PIPE PLUG,1/2"-14 | TORx Th 0.610 ± 0.020mm |
