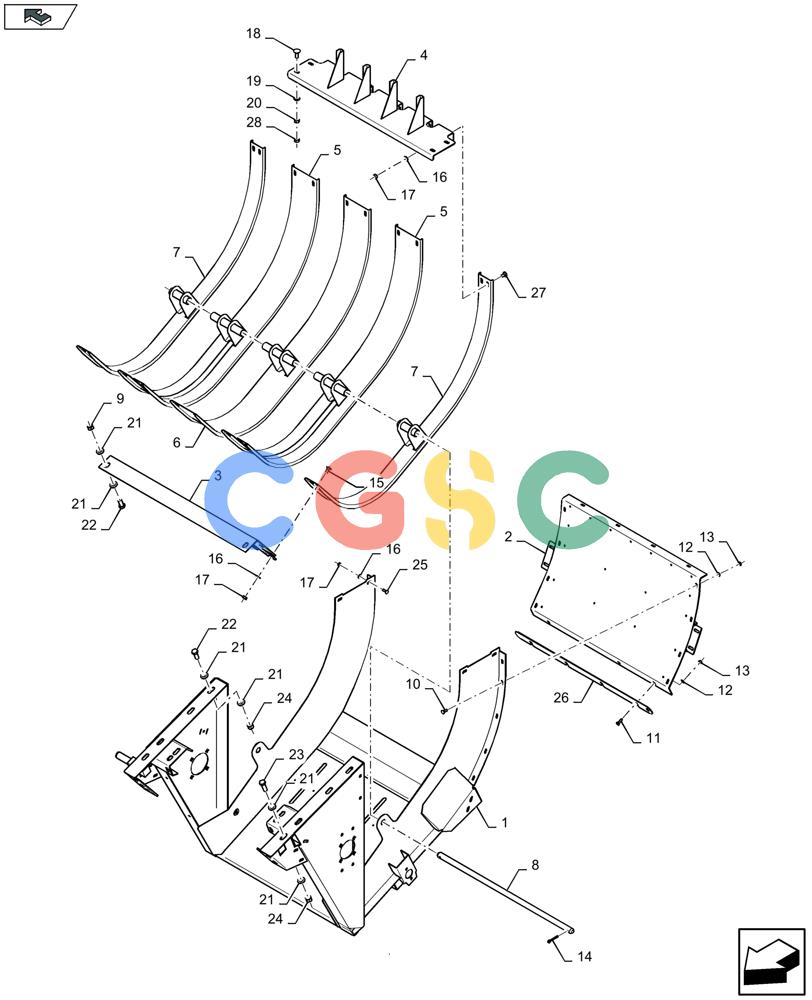

| 1. |
84514180
|
[1] |
CHANNEL
|
ZED
|
| 1. |
84514178
|
[1] |
CHANNEL
|
ZED
|
| 2. |
84472839
|
[1] |
PLATE
|
ZED
|
| 2. |
84470763
|
[1] |
PLATE
|
ZED
|
| 3. |
84498176
|
[1] |
MOUNTING PLATE
|
ZED
|
| 3. |
84498172
|
[1] |
MOUNTING PLATE
|
ZED
|
| 4. |
84269802
|
[1] |
PLATE
|
ZED
, Serial Range: -C150 Superseded by part number: 47928744
|
| 4. |
47928744
|
[1] |
PLATE
|
ZED
, Start Serial: D151
|
| 4. |
84269799
|
[1] |
PLATE
|
ZED
|
| 4. |
47810991
|
[1] |
PLATE
|
ZED
, Start Serial: D151
|
| 5. |
84429868
|
[2] |
GUIDE
|
ZED
, Serial Range: -C084
|
| 5. |
47430412
|
[2] |
GUIDE
|
ZED
, Serial Range: -F085136 Superseded by part number: 47859397
|
| 5. |
47859397
|
[2] |
GUIDE
|
ZED
, Start Serial: D137
|
| 5. |
84485312
|
[4] |
GUIDE
|
ZED
, Serial Range: -C140 Superseded by part number: 47646898
|
| 5. |
47646898
|
[4] |
GUIDE
|
ZED
, Start Serial: D141
|
| 6. |
9839096
|
[1] |
GUIDE
|
ZED
, Serial Range: -C084
|
| 6. |
47430417
|
[1] |
GUIDE
|
ZED
, Serial Range: -F085136
|
| 6. |
47857536
|
[1] |
GUIDE
|
ZED
, Start Serial: D137
|
| 7. |
87380173
|
[2] |
GUIDE
|
ZED
, Serial Range: -C084
|
| 7. |
47430406
|
[2] |
GUIDE
|
ZED
, Serial Range: -F085136 Superseded by part number: 47856817
|
| 7. |
47856817
|
[2] |
GUIDE
|
ZED
, Start Serial: D137
|
| 8. |
84004017
|
[1] |
ROD
|
ZED
|
| 8. |
9839098
|
[1] |
ROD,25mm OD x 1249mm L
|
ZED
|
| 9. |
100020
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 10. |
308761
|
[8] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 11. |
43127
|
[8] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 12. |
322358
|
[16] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 13. |
9706690
|
[16] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 14. |
300423
|
[2] |
COTTER PIN,M6.3 x 50
|
WIN
|
| 15. |
338949
|
[1] |
CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
|
| 16. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 17. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 18. |
334966
|
[4] |
CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 45mm, Cl 8.8, Full Thd
|
PA
|
| 19. |
140046
|
[4] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 20. |
9706685
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 21. |
394631
|
[20] |
WASHER,17mm ID x 34mm OD x 4mm Thk
|
NH
|
| 22. |
43168
|
[8] |
BOLT,Hex, M16 x 40mm, Cl 8.8
|
NH
Superseded by part number: 86509867
|
| 23. |
120090
|
[2] |
BOLT,Hex, M16 x 50mm, Cl 8.8
|
NH
|
| 24. |
86000441
|
[8] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 25. |
86633356
|
[4] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 26. |
84472843
|
[1] |
PLATE
|
ZED
|
| 26. |
84470880
|
[1] |
PLATE
|
ZED
|
