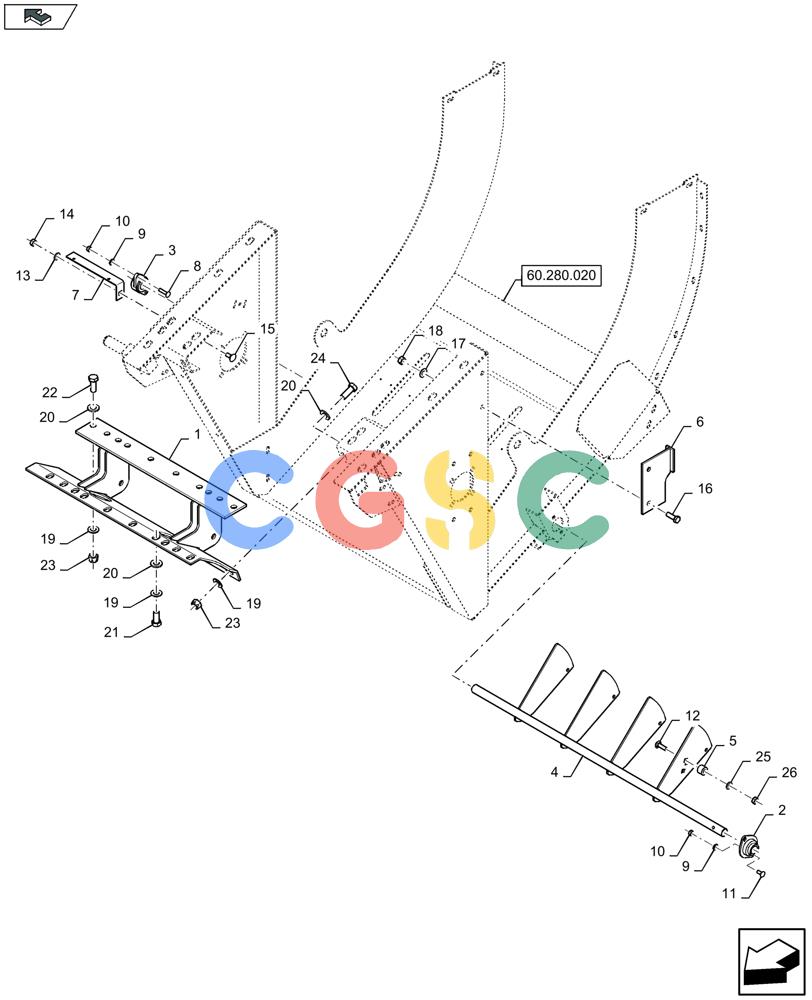

| 1. |
47367095
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C049 Superseded by part number: 47435127
|
| 1. |
47435127
|
[1] |
SUPPORT
|
ZED
, Start Serial: D050
|
| 1. |
47367092
|
[1] |
SUPPORT
|
ZED
|
| 2. |
9837806
|
[1] |
FLANGED BEARING,25mm ID
|
ZED
|
| 3. |
9839087
|
[1] |
NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk
|
ZED
|
| 4. |
84344255
|
[1] |
SHAFT
|
ZED
, Serial Range: -C129
|
| 4. |
47738868
|
[1] |
SHAFT
|
ZED
, Start Serial: D130
|
| 4. |
84344267
|
[1] |
SHAFT
|
ZED
, Serial Range: -C129
|
| 4. |
47738864
|
[1] |
SHAFT
|
ZED
, Start Serial: D130
|
| 5. |
84004713
|
[1] |
BUSHING,10.5mm ID x 25mm OD x 18mm L
|
ZED
, Serial Range: -C129
|
| 6. |
84100500
|
[1] |
PLATE
|
ZED
|
| 7. |
84073277
|
[1] |
PLATE
|
ZED
|
| 8. |
86512443
|
[2] |
CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd
|
ZED
|
| 9. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 10. |
9706690
|
[4] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 11. |
86507486
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 12. |
412183
|
[1] |
CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8
|
DUB
, Serial Range: -C129 Superseded by part number: 9833222
|
| 13. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 14. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 15. |
338949
|
[1] |
CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
|
| 16. |
43139
|
[2] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 17. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 18. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 19. |
140048
|
[1] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 20. |
394631
|
[1] |
WASHER,17mm ID x 34mm OD x 4mm Thk
|
NH
|
| 21. |
86508583
|
[1] |
BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd
|
NH
Superseded by part number: 86529976
|
| 22. |
43168
|
[1] |
BOLT,Hex, M16 x 40mm, Cl 8.8
|
NH
Superseded by part number: 86509867
|
| 23. |
86000441
|
[1] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 24. |
86595832
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd
|
NH
|
