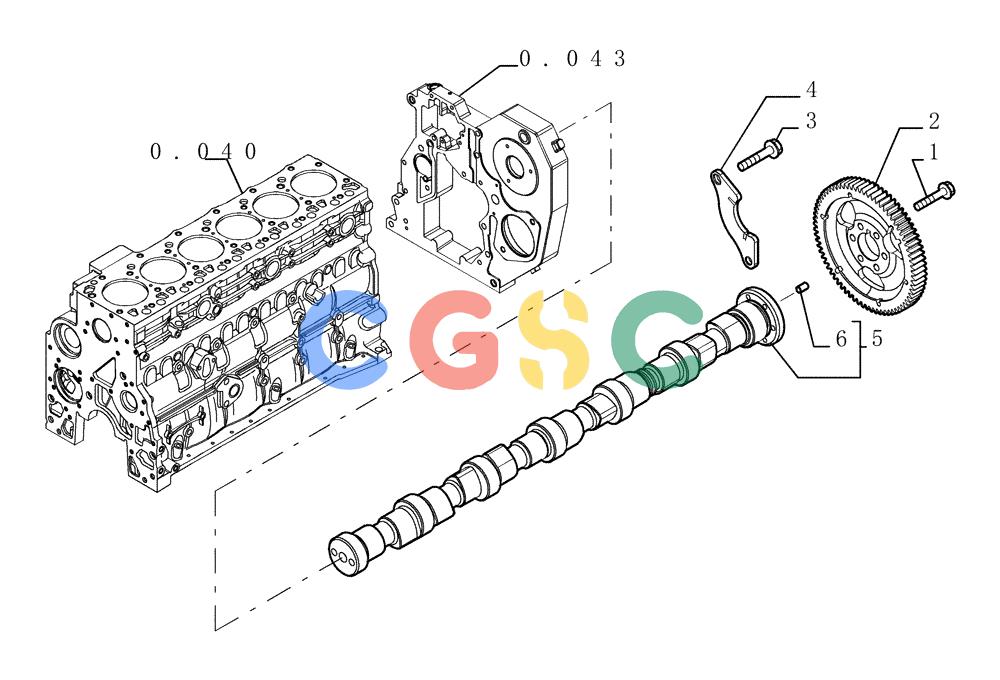

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-016[00]) - CAMSHAFT - TIMING CONTROL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1002 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [6] | SCREW,Hex Flg, M8 x 1.25 x 25 | TORM08x1.25x25mm |
| 2. | 4896622 | [1] | DRIVEN GEAR | TOR |
| 3. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BASM08x1.25x16mm |
| 4. | 4897457 | [1] | SUPPORT | TOR |
| 5. | 2855612 | [1] | CAMSHAFT | TORCAMSHAFT ASSY |
| 5. | 2855612R | [1] | REMAN-CAMSHAFT | RACE215B CRAWLER EXCAVATOR, ASN NBDA21800 (6/13-), SK210-8 HYDRAULIC EXCAVATO (NA) ASN YQ12U4800, Both TIER 3 (ROPS CAB), CAMSHAFT ASSY |
| 5. | 2855612C | [1] | | RACReturn Number |
| 6. | 4899080 | [1] | DOWEL,M6 x 8 L | TORM06x08mm Long |
