神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (04-002) - ELEMENT KIT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
178 次

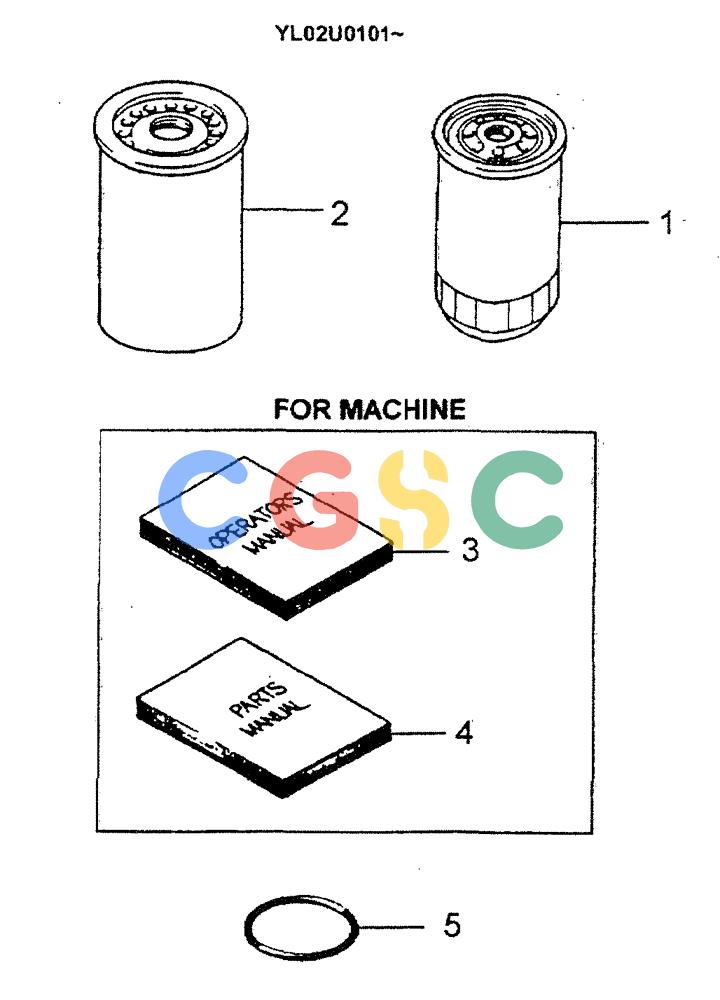

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM30TU0001F1 | [1] | ELEMENT | KOBELEMENT KIT |
| 1. | 2446R332D5 | [1] | ELEMENT | KOB Superseded by part number: 2451R124-2A |
| 2. | 2446R332D12 | [1] | FILLER | KOB Superseded by part number: 84218257 |
| 3. | YM91ZU0002F1 | [1] | MANUAL OPERATORS | |
| 4. | YM91ZU0001F1 | [1] | REPAIR MANUAL PT | KOBMANUAL, PARTS |
| 5. | 2445Z1570 | [4] | O-RING,9mm Thk x 125mm ID, Cl 5, 75 Duro | KOBID 125 ± 0.40 x OD 143mm |
