纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-023[00]) - ENGINE OIL DIPSTICK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
832 次

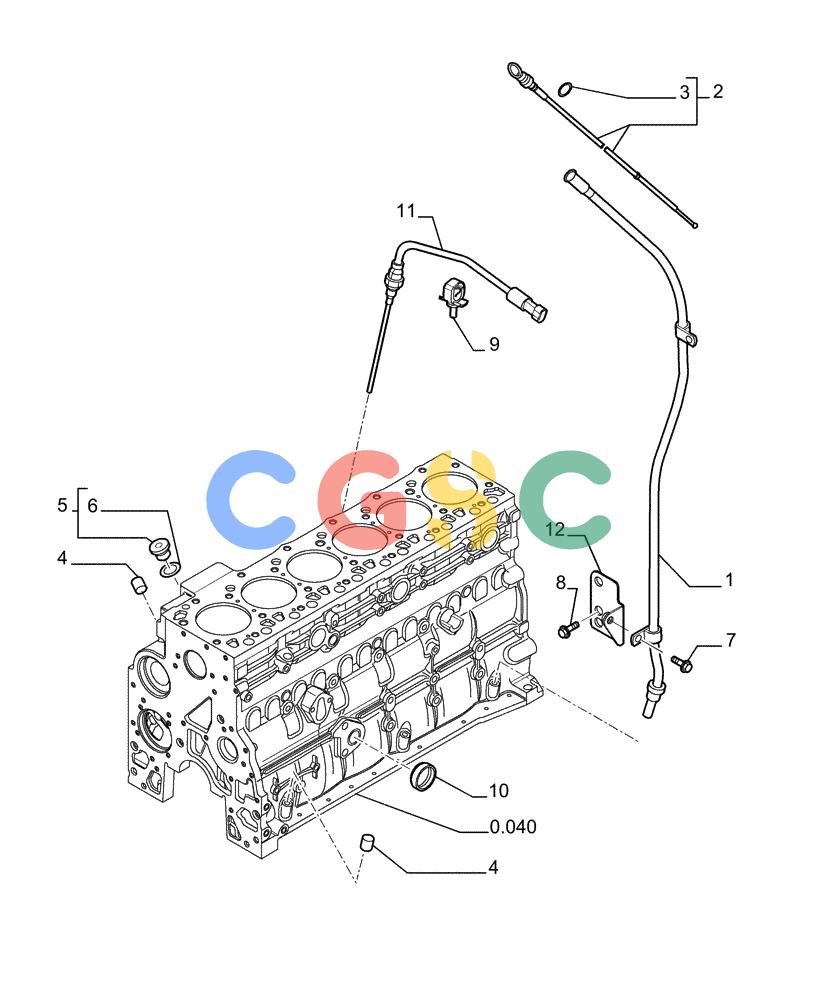

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854316 | [1] | TUBE,630 mm Length | TOR Superseded by part number: 504051712 |
| 2. | 2852911 | [1] | DIPSTICK | TOR- ASSY Superseded by part number: 504045920 |
| 3. | 4898502 | [1] | O-RING,0.364" ID x 0.504" OD x 0.07" | LECID 09.25 x OD 12.81mm Superseded by part number: 17277981 |
| 4. | 4895406 | [2] | EXPANSION PLUG,9.8mm OD | TOROD 9.8mm |
| 5. | 4897330 | [1] | HEX SOCKET PLUG,M12 x 1.5 | TORM12x1.50mm (Incls. O-Ring 4895610) |
| 6. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TORM09.3 ID x 2.2 Thk mm |
| 7. | 2852323 | [1] | SCREW | TORM08x14mm Superseded by part number: 16597925 |
| 8. | 2852134 | [1] | FLANGE BOLT,Hex, M12 x 1.75 x 25mm | TORM12x1.75x25mm Superseded by part number: 16677735 |
| 9. | 2853428 | [1] | BRACKET | TOR Superseded by part number: 504046336 |
| 10. | 4895037 | [1] | EXPANSION PLUG,32.03mm | TOR |
| 11. | 2854318 | [1] | SWITCH | TOR Superseded by part number: 504025613 |
| 12. | 2852914 | [1] | BRACKET | TOR Superseded by part number: 504051850 |
