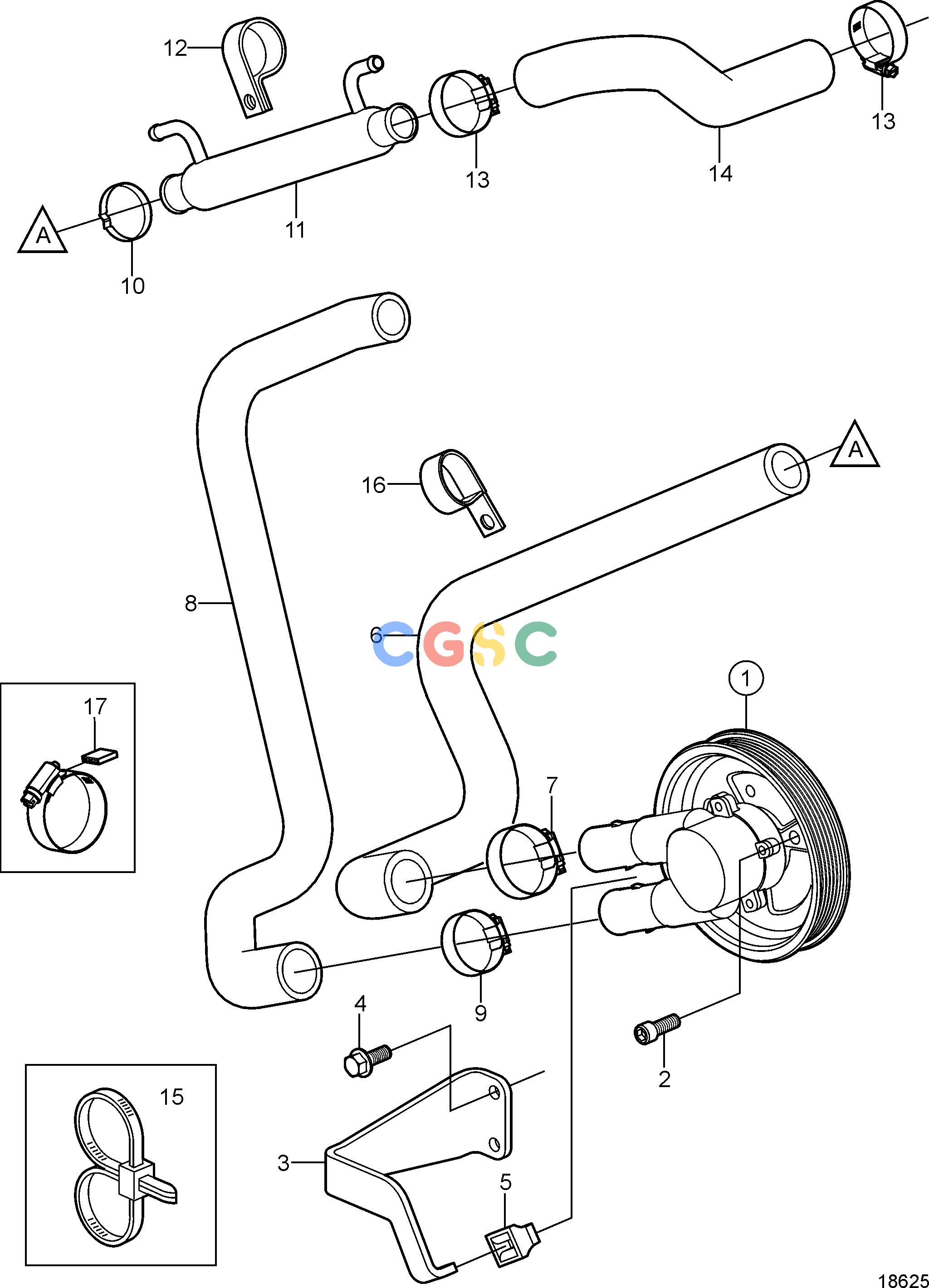

沃尔沃零件查询5.0GXi-B; 5.0GXi-BF; 5.0OSi-B; 5.0OSi-BF; 5.7Gi-B; 5.7Gi-BF; 5.7GXi-C; 5.7GXi-CF; 5.7GiI-B; 5.7GXiI-C; 5.7OSi-A; 5.7OSi-AF; 5.7OSXi-A; 5.7OSXCooling SystemSeawater Pump and HosesEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
586 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3857202
|
[1] |
Sea water pump
|
|
| 2. |
3857939
|
[3] |
Screw
|
|
| 3. |
3858241
|
[1] |
Stay
|
|
| 4. |
3853266
|
[2] |
Flange screw
|
|
| 5. |
3857954
|
[1] |
Stop lug
|
|
| 6. |
3858238
|
[1] |
Hose
|
|
| 7. |
3850422
|
[1] |
Hose clamp
|
|
| 8. |
3861740
|
[1] |
Hose
|
|
| 9. |
3853786
|
[1] |
Hose clamp
|
|
| 10. |
982645
|
[1] |
Hose clamp
|
|
| 11. |
3861786
|
[1] |
Heat exchanger
|
|
| 12. |
3861788
|
[1] |
Bracket
|
|
| 13. |
3853786
|
[2] |
Hose clamp
|
|
| 14. |
3861567
|
[1] |
Hose
|
|
| 15. |
3850115
|
[1] |
Retainer
|
|
| 16. |
3853312
|
[1] |
Clamp
|
|
| 17. |
3858532
|
[1] |
Cover
|
W=0.465'' (11,8mm)
|
| 17. |
3861999
|
[1] |
Cover
|
W=0.300'' (7,6mm)
|
