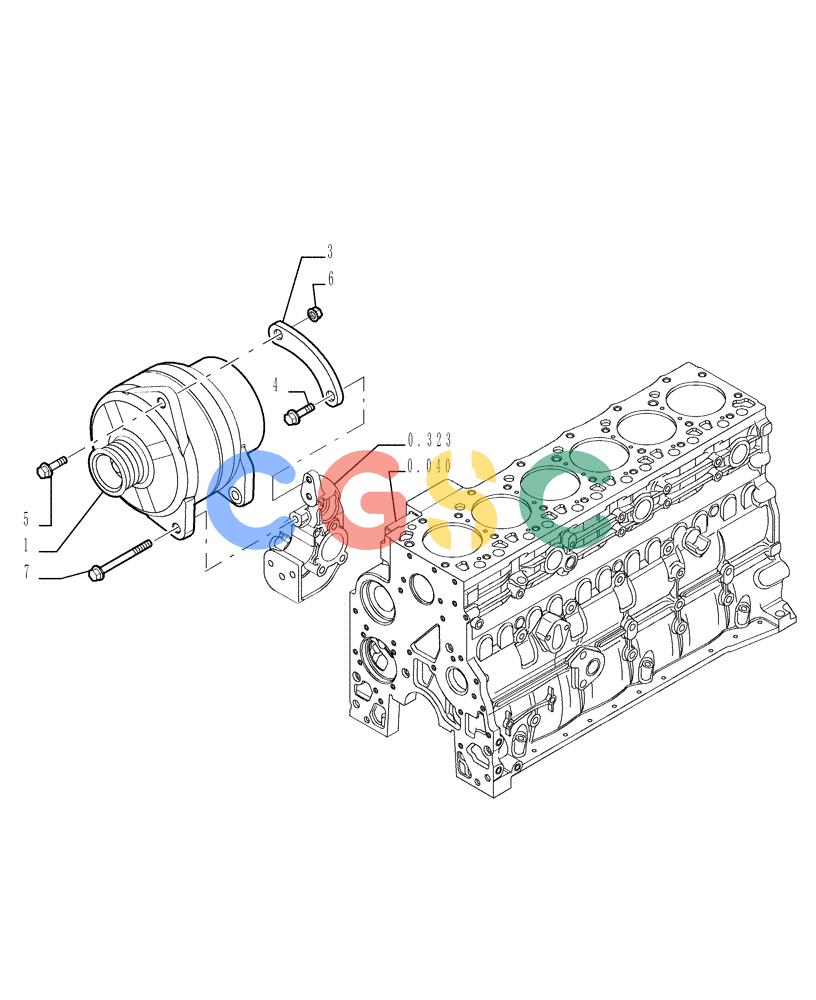

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-035[01]) - ALTERNATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
449 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4892318 | [1] | ALTERNATOR,24V, 70A, W/ Pulley | TOR |
| 1. | 4892318R | [1] | REMAN-ALTERNATOR | TORReman for New PN 4892318 |
| 1. | 4892318C | [1] | CORE-ALTERNATOR | TORReturn Number |
| 3. | 2857012 | [1] | BRACKET | TOR Superseded by part number: |
| 4. | 4895291 | [1] | SCREW,Hex Flg, M10 x 1.5 x 20 | TORM10x1.50x20mm |
| 5. | 4899093 | [1] | BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC | BASM10x1.50x30mm |
| 6. | 4895166 | [1] | FLANGE NUT,M10, 1.50mm Pitch, Cl 10 | BASM10x1.50mm |
| 7. | 4899122 | [1] | BOLT,Flng, M10 x 1.5 x 110mm | TORM10x1.50x110mm |
