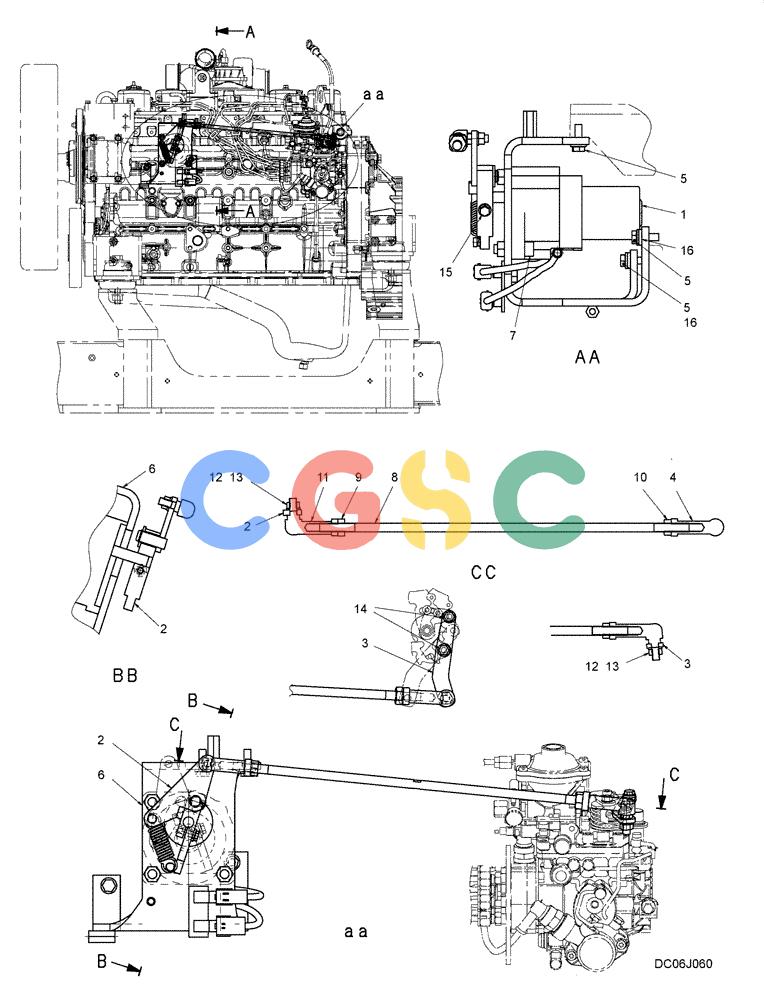

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-006[00]) - CONTROL ASSY, ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
806 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN20S00002F2 | [1] | SMALL ELECTRIC MOTOR | KOBMotor, Govenor Superseded by part number: YN20S00002F1 |
| . . | YN20S00002F1R | [1] | REMAN-ELECTRIC MOTOR | KOBSK210-8 - TIER 3 ROPS (NA) ASN YQ12U4800, Reman for New P/N YN20S00002F2 |
| . . | YN20S00002F1C | [1] | CORE-ELECTRIC MOTOR | KOBReturn Number |
| 2. | YN11M01294F1 | [1] | LEVER | SMAssy |
| 3. | YN11M01290P1 | [1] | PLATE | KOBPLATE |
| 4. | YN11M01218D1 | [1] | BALL JOINT | KOBM08x1.25x19 - M10x1.25 Left Hand x 59.5mm Long |
| 5. | ZM73C08025 | [4] | BOLT,M8x25mm - Course Thread | KOBM08x1.25x25mm |
| 6. | YN11M01293P3 | [1] | BRACKET | KOBBRACKET |
| 7. | ZS28C10035 | [3] | SCREW,Hex Socket Head, M10 x 35mm | KOBScrew, M10x1.50x35mm |
| 8. | YN11M01302P1 | [1] | ROD | KOBM10x1.25x420mm Long (16-1/2 in) (Right & Left Hand Threads) |
| 9. | ZN18F10008 | [1] | NUT | KOBM10x1.25mm |
| 10. | YR12B01082P1 | [1] | NUT | KOBM10x1.25mm Left Hand |
| 11. | YN11M01218D2 | [6] | JOINT ASSY. | KOBM08x1.25x19 - M10x1.25 Right Hand x 59.5mm Long |
| 12. | ZW26X08000 | [2] | LOCK WASHER | KOBLock, ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 13. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 14. | ZM73C06016 | [2] | BOLT,M6x16mm - Course Thread | KOBM06x1.0x16mm |
| 15. | ZM73C06020 | [1] | BOLT,M6x20mm - Course Thread | KOBM06x1.0x20mm |
| 16. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
