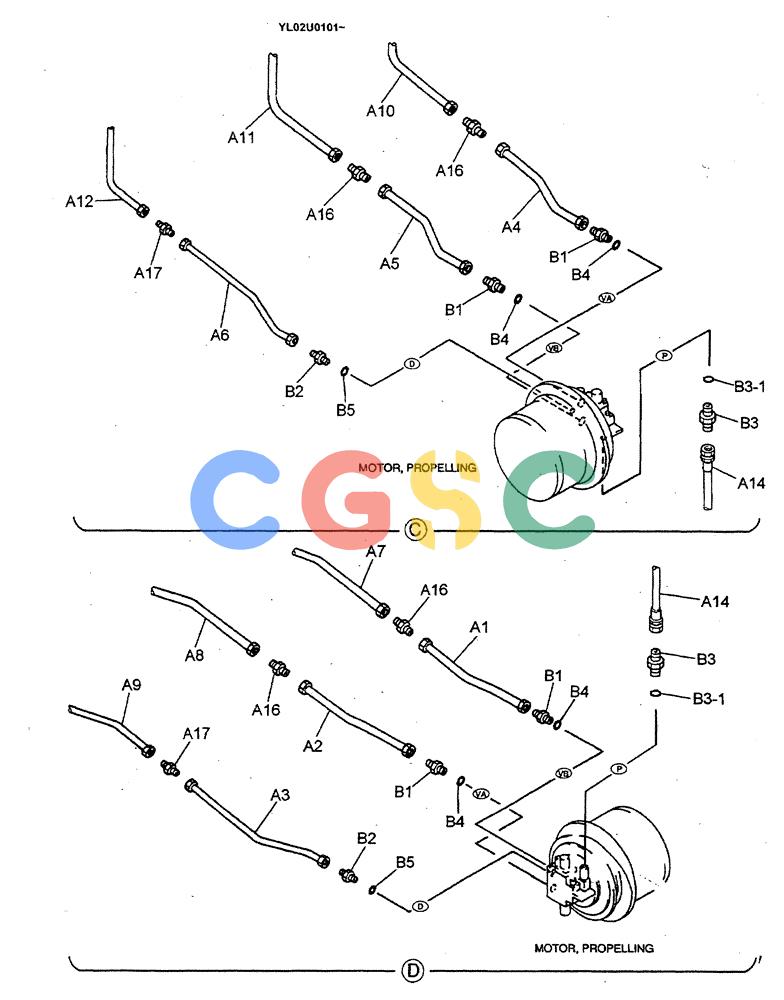

| . . | YM02HU0001F1 | [1] | HYD LINES, LOW | |
| A1. | YM02HU1072P1 | [1] | TUBE | KOB |
| A2. | YM02HU1073P1 | [1] | TUBE | KOB |
| A3. | YM02HU1074P1 | [1] | TUBE | KOB |
| A4. | YM02HU1075P1 | [1] | TUBE | KOB |
| A5. | YM02HU1076P1 | [1] | TUBE | KOB |
| A6. | YM02HU1077P1 | [1] | TUBE | KOB |
| A7. | YM02HU1078P1 | [1] | TUBE | KOB |
| A8. | YM02HU1079P1 | [1] | TUBE | KOB |
| A9. | YM02HU1080P1 | [1] | TUBE | KOB |
| A10. | YM02HU1081P1 | [1] | TUBE | KOB |
| A11. | YM02HU1082P1 | [1] | TUBE | KOB |
| A12. | YM02HU1083P1 | [1] | TUBE | KOB |
| A13. | ZX23M04235 | [2] | HOSE ASSY | HOSE ASSY |
| A14. | 2420Z1224D4 | [2] | HOSE | KOBGuard -- ID 22 x OD 26 x 300mm Long (11-13/16 in) |
| A15. | PY01P01043D3 | [12] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| A16. | ZA23B28000 | [4] | CONNECTION | KOBM36x1.50x43mm Long |
| A17. | ZA23B18000 | [2] | HYD CONNECTOR | KOB |
| A18. | YN02H01187P1 | [2] | CLAMP | KOB |
| A19. | YN02H01188P1 | [2] | CLAMP | KOB |
| A20. | 2418T24324D2 | [4] | SPACER | KOB |
| A21. | ZS18C08040 | [4] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| A22. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| A23. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| . . | LB12H00001F1 | [1] | HYD LINES, PROPEL | |
| B1. | ZA23F28016 | [4] | CONNECTION | KOB1" PF - M36x1.50x49mm Long |
| B2. | ZA23F18008 | [2] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| B3. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| B4. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| B5. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| . . | YM19HU0002F1 | [1] | HYD LINES, SWIVEL | |
| C1. | ZA23F28016 | [4] | CONNECTION | KOB1" PF - M36x1.50x49mm Long |
| C2. | YM19HU1004P1 | [2] | HYD CONNECTOR | KOB(FF1/2-ORFS-6)(Incls. O-Rings ZD12P01800 & YM19HU1006P1) |
| C3. | YM19HU1005P1 | [4] | HYD CONNECTOR | KOB(FF3/8-ORFS-6)(Incls. O-Rings ZD12P01400 & YM19HU1003P1) Superseded by part number: 84600280 |
| C4. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| C5. | 2444Z2887 | [1] | TEE | KOB |
| C6. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| C7. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| C8. | YM19HU1003P1 | [4] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro | KOBID 09.25 ± 0.13 x OD 12.81mm Superseded by part number: 9993141 |
| C9. | YM19HU1006P1 | [2] | O-RING,12.42mm ID x 1.78mm Width | KOBID 12.42 ± 0.13 x OD 16mm |
| . . | YM02HU0002F1 | [1] | HYD LINES, LOW(DOZER) | |
| D1. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| D2. | YM02HU1122P1 | [4] | ELBOW | KOB45° -- 13/16"-16 x 1/2" PT (male on both ends) |
| D3. | YM02HU1103P1 | [2] | BRACKET | |
| D4. | YM02HU1104P1 | [2] | TEE | |
| D5. | YM02HU1105P1 | [2] | TEE | |
| D6. | YM02HU1106P1 | [2] | HOSE 550mm Long (21-21/32 in) | HOSE 550mm Long (21-21/32 in) |
| D7. | YM02HU1107P1 | [2] | HOSE 550mm Long (21-21/32 in) | HOSE 550mm Long (21-21/32 in) |
| D8. | YM02HU1108P1 | [2] | HYDRAULIC HOSE | KOB1150mm Long (45-17/64 in) |
| D9. | YM02HU1109P1 | [2] | HYDRAULIC HOSE | KOB1250mm Long (49-7/32 in) |
| D10. | YM02HU1110P1 | [2] | HYDRAULIC HOSE | KOB1050mm Long (41-21/64 in) |
| D11. | YM02HU1111P1 | [2] | HYDRAULIC HOSE | KOB1200mm Long (47-1/4 in) |
| D12. | YM02HU1112P1 | [2] | HYDRAULIC HOSE | KOB1600mm Long (63 in) |
| D13. | YM02HU1120P1 | [2] | BHD LOCK NUT | KOB13/16"-16 x Th 09mm Superseded by part number: 86639083 |
| D14. | YM02HU1121P1 | [2] | BHD LOCK NUT | KOB11/16"-16 x Th 08mm Superseded by part number: 87010704 |
| D15. | PY01P01043D2 | [6] | CABLE TIE,4.60mm W x 202mm L | KOBWire Ties -- 160mm Long Superseded by part number: YT50C01100P1 |
| D16. | YM02HU1100P1 | [2] | CLAMP | KOB(Incls. Two Screws ZS13C12045) |
| D17. | YM02HU1101P1 | [2] | CLAMP | KOBCLAMP |
| D18. | YM02HU1099P2 | [2] | GROMMET | KOBReplaces YM02HU1099P1 |
| D19. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| D20. | ZW16H12000 | [8] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| D21. | ZD12P01800 | [4] | O-RING | KOBID 17.8mm x OD 20.2mm |
