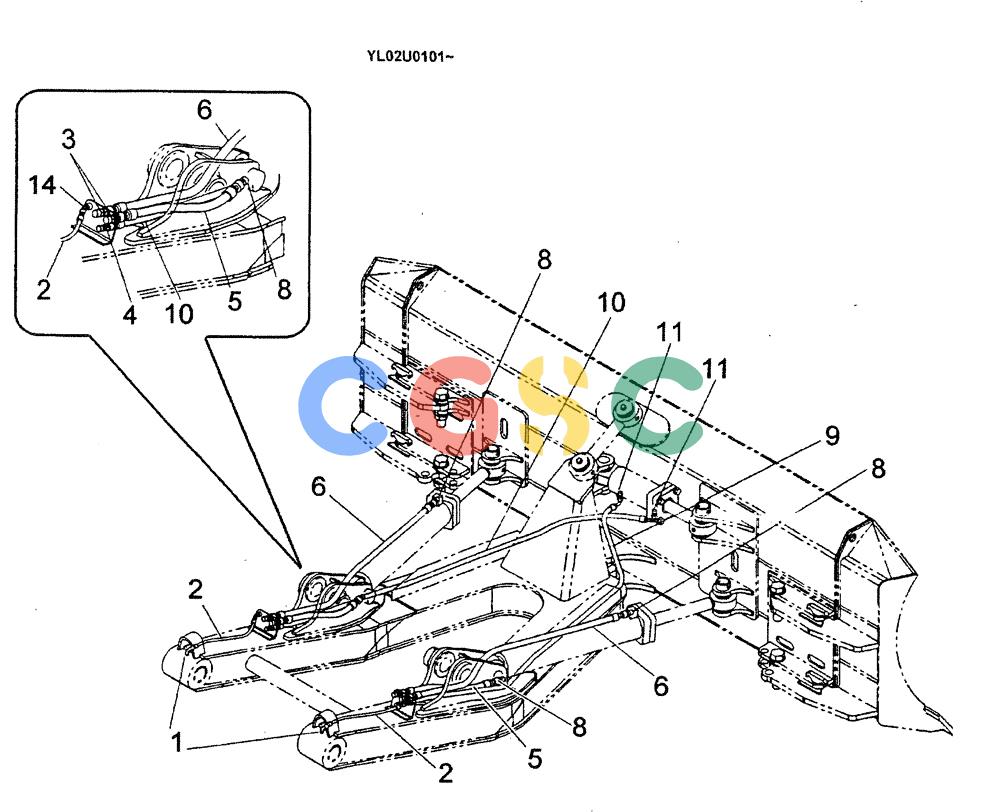

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (02-014) - DOZER INSTALLATION, HYD PIPING LINK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
349 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J21253F1 | [1] | HYD PIPING KIT | |
| 1. | 2444Z4658 | [2] | ELBOW | ELBOW |
| 2. | 2444R3169 | [2] | HOSE | HOSE |
| 3. | 2444Z4653 | [4] | CONNECTOR | CONNECTOR |
| 4. | 2444Z4654 | [2] | CONNECTOR | CONNECTOR |
| 5. | 2444R3170 | [2] | HOSE | HOSE |
| 6. | 2444R3171 | [2] | HOSE | HOSE |
| 8. | 2444Z4655 | [4] | HYD CONNECTOR | KOBCONNECTOR Superseded by part number: AW551-120-004 |
| 9. | 2444R3172 | [1] | HOSE | HOSE |
| 10. | 2444R3173 | [1] | HOSE | HOSE |
| 11. | 2444Z4656 | [2] | CONNECTOR | CONNECTOR |
| 12. | 2414T5925 | [4] | CAP | CAP |
| 13. | 2414T5926 | [2] | CAP | CAP |
| 14. | 2444Z4659 | [2] | ELBOW | ELBOW |
