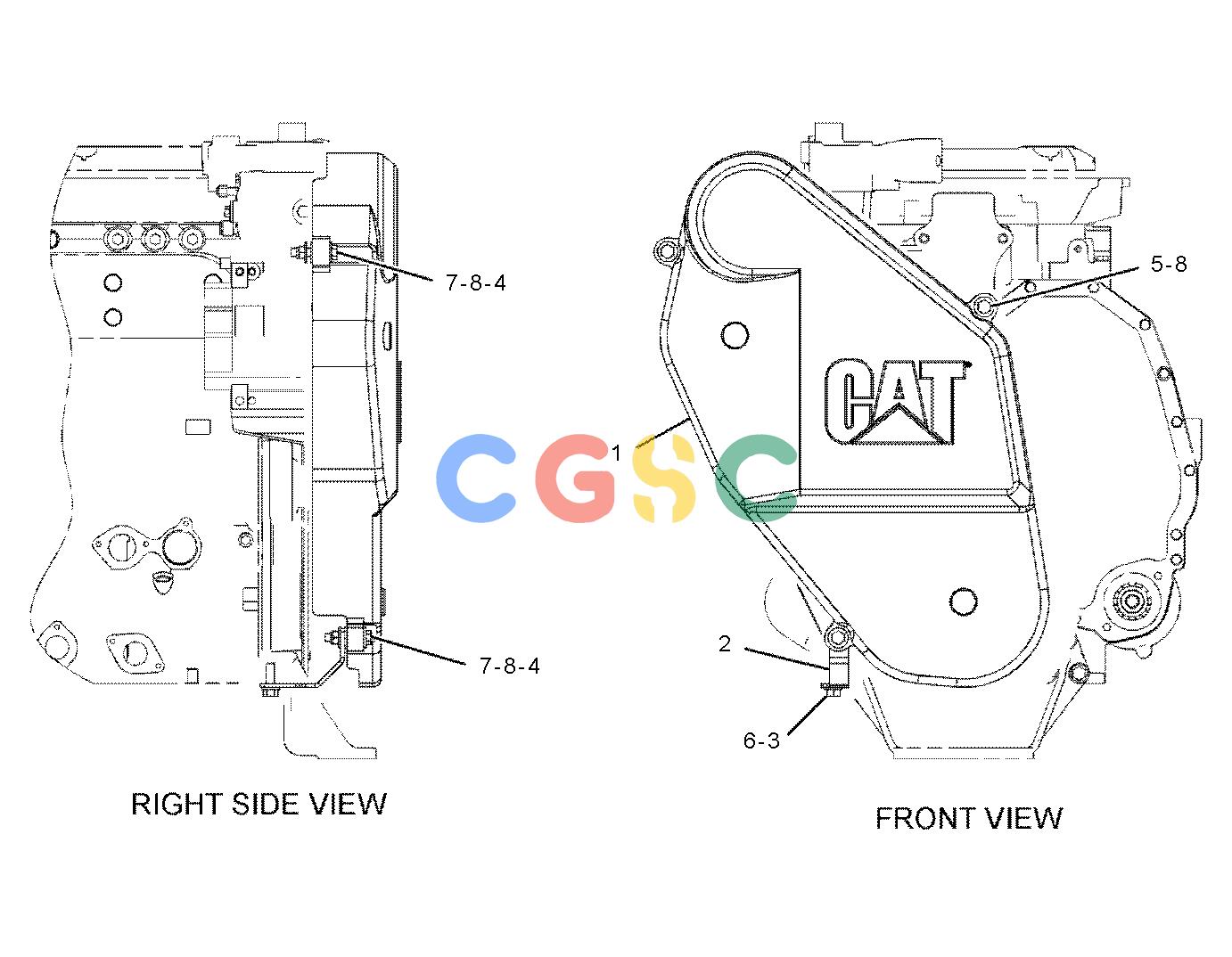

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 246-3118 | [1] | GUARD-BELT | |
| 2. | 246-6438 | [1] | BRACKET | |
| 3. | 5P-2566 | [1] | BOLT(1/2-13X1.5-IN) | |
| 4. | 6V-7687M | [2] | LOCKNUT(M12X1.75-THD) | |
| 5. | 8T-4194M | [1] | BOLT(M12X1.75X50-MM) | |
| 6. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 8T-4910M | [2] | BOLT(M12X1.75X60-MM) | |
| 8. | 156-4522 | [7] | WASHER-HARD(14X30X3-MM THK) | |
| M | METRIC PART | |||
