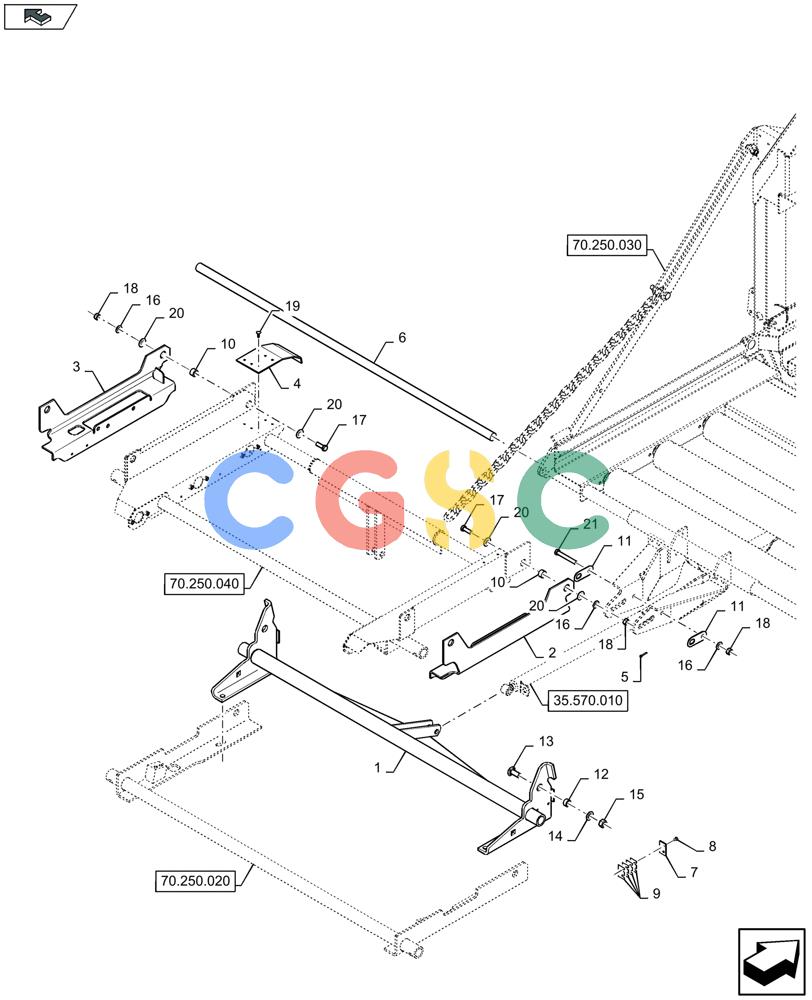

凯斯零件查询(LB334S) - BALER (9/12-) (70.250.010) - BALE WEIGHING SYSTEM, UPPER FRAME Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
650 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84147955
|
[1] |
FRAME
|
ZED
|
| 1. |
87698664
|
[1] |
FRAME
|
ZED
|
| 2. |
87699043
|
[1] |
SUPPORT
|
ZED
|
| 3. |
87699046
|
[1] |
SUPPORT
|
ZED
|
| 4. |
87717614
|
[2] |
PLATE
|
ZED
|
| 5. |
130007
|
[3] |
COTTER PIN,M4 x 25
|
NH
Superseded by part number: 83903970
|
| 6. |
84175953
|
[1] |
ROD
|
ZED
|
| 7. |
84211993
|
[2] |
PLATE
|
ZED
|
| 8. |
14441321
|
[4] |
HEX SOC SCREW,M6 x 16mm, Cl 8.8
|
NH
Superseded by part number: 84814920
|
| 9. |
84212194
|
[8] |
SHIM
|
ZED
|
| 10. |
87622404
|
[4] |
BUSHING
|
ZED
|
| 11. |
84175934
|
[2] |
SLAT
|
ZED
|
| 12. |
9837933
|
[2] |
SPACER,17mm ID x 25.4mm OD x 12.5mm L
|
ZED
|
| 13. |
86595832
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd
|
NH
|
| 14. |
140048
|
[2] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 15. |
100020
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 16. |
140046
|
[5] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 17. |
86629541
|
[4] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 18. |
9706685
|
[5] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 19. |
84069248
|
[12] |
RIVET,Pop, 4.8mm OD x 20.7mm L
|
ZED
|
| 20. |
543043
|
[8] |
WASHER,13mm ID x 35mm OD x 2.5mm Thk
|
NH
|
| 21. |
86508581
|
[1] |
BOLT,Hex, M12 x 90mm, Cl 8.8
|
NH
|
