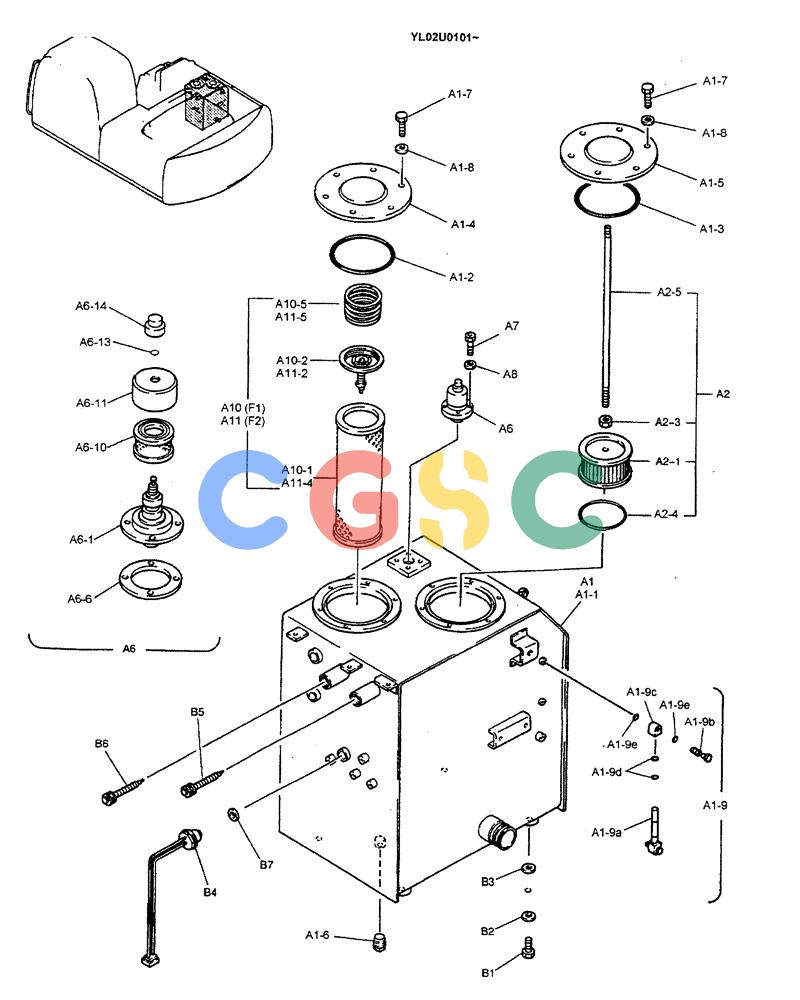

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (01-012) - TANK ASSSY, HYD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
355 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM33H00001F1 | [1] | TANK ASSY, HYD (STD) | |
| . . | YM33H00001F2 | [1] | TANK ASSY, HYD (N&B, BREAKER) | |
| A1. | YM33H00005F1 | [1] | TANKASSY | |
| A1-1. | YM33H00004P1 | [1] | TANK | KOB |
| A1-2. | ZD11P14000 | [1] | O-RING | KOB |
| A1-3. | ZD11G16500 | [1] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| A1-4. | YM33H01010P1 | [1] | FLANGE | KOBFLANGE |
| A1-5. | YM33H01007P1 | [1] | FLANGE | KOBFLANGE Superseded by part number: 72203447 |
| A1-6. | ZE72T12000 | [1] | PLUG | KOB3/4" PT |
| A1-7. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| A1-8. | ZW16X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A1-9. | 2489R293F1 | [1] | LEVEL GAUGE | KOB Superseded by part number: YN58S00009F1 |
| A1-9a. | 2489R173S1 | [1] | GAUGE | KOB |
| A1-9b. | 2489R174S3 | [2] | BOLT | KOBSpecial -- M10x1.50x40mm Long |
| A1-9c. | 2489R174S2 | [2] | BLOCK | KOBGAUGE, LEVEL |
| A1-9d. | ZD11P01800 | [4] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| A1-9e. | ZD11P01000 | [4] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| A2. | YW50V00004F7 | [1] | FILTER STRAINER | KOB |
| A2-1. | YN50V00002S001 | [1] | STRAINER ASSY. | KOB |
| A2-3. | ZN11C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| A2-4. | 45Z91D6 | [1] | O-RING | KOBID 97.79 ± 0.38 OD 108.45mm |
| A2-5. | YW50V00004S005 | [1] | BOLT | KOBM10x1.50x585mm |
| A6. | YN57V00002F4 | [1] | BREATHER ASSY. | KOB Superseded by part number: YN57V00010F1 |
| A6-1. | 2446U260S1 | [1] | BODY | KOB |
| A6-6. | 2446U260S8 | [1] | PACKING | KOB |
| A6-10. | YN57V00002S010 | [1] | ELEMENT | KOB Superseded by part number: 47640920 |
| A6-11. | YN57V00002S011 | [1] | COVER | KOB |
| A6-13. | ZD11P01400 | [1] | O-RING | KOBID 13.8 ± 0.19 x OD 18.6mm |
| A6-14. | YN57V00002S014 | [1] | NUT | KOB |
| A7. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm |
| A8. | ZW26K06000 | [4] | LOCK WASHER | KOBID 06 x OD 11 x Th 1.5mm |
| A10. | YV30T00002F3 | [1] | KIT | KOB |
| A10-1. | YR50V00004P1 | [1] | HYDRAULIC OIL FILTER | KOB Superseded by part number: YR50V00004P1P |
| A10-2. | 2446U119S3 | [1] | VALVE | KOB |
| A10-5. | YM33H01009P1 | [1] | SPRING | KOB |
| A11. | YV30T00002F4 | [1] | KIT | KOB |
| A11-2. | 2446U119S3 | [1] | VALVE | KOB |
| A11-4. | YV50V00001P1 | [1] | ELEMENT | KOB |
| A11-5. | YM33H01009P1 | [1] | SPRING | KOB |
| . . | YM33H00006F1 | [1] | TANK INSTL.HYD | |
| B1. | ZS13C16040 | [4] | SCREW | KOBM16x2.0x40mm |
| B2. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| B3. | LE33H01017D1 | [3] | SHIM,1.0mm Thk | KOB(1.0) |
| B4. | YN52S00023P1 | [1] | PROXIMITY SWITCH | KOB |
| B5. | YN21V00006F1 | [1] | VALVE | KOB |
| B6. | YN21V00007F1 | [1] | CHECK VALVE | KOB |
| B7. | YN33H01052P1 | [1] | SEAL | KOB |
