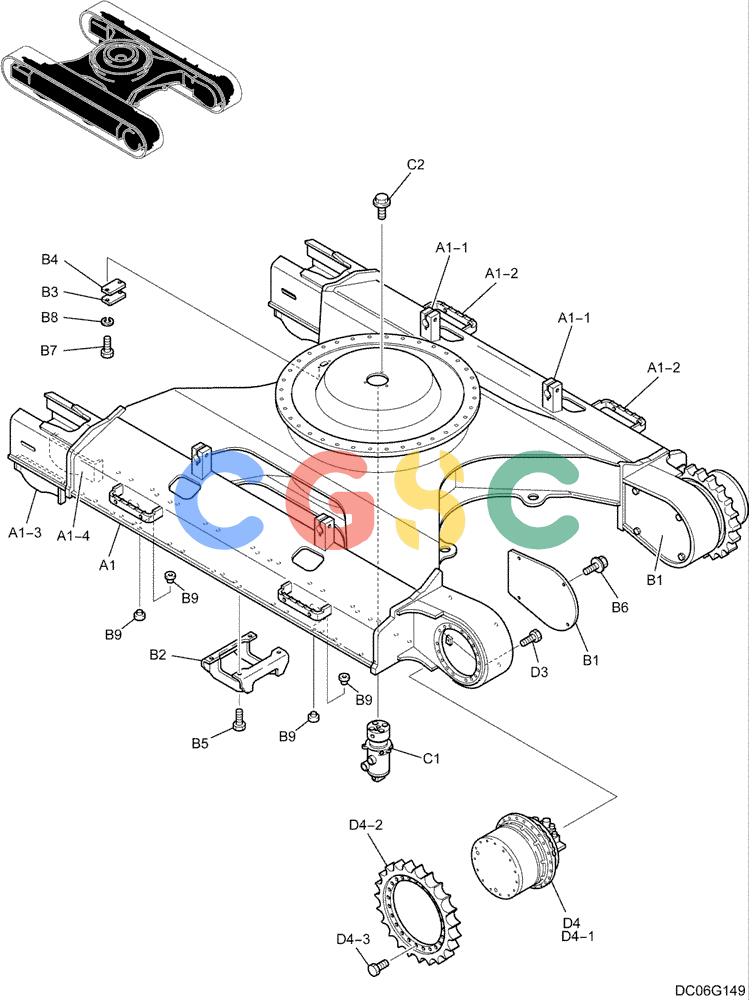

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (02-001[00]) - FRAME, LOWER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
768 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1-1. | YN07F01270P1 | [4] | SUPPORT | KOB |
| A1-2. | YN41C00060P1 | [4] | STEP | KOB Superseded by part number: YN41C00077P1 |
| A1-3. | YN07F01075P1 | [2] | GUIDE | KOB |
| A1-4. | YN07F01076P1 | [2] | GUIDE | KOB |
| B1. | YN01F01080P1 | [1] | COVER | KOBLower Group, Incls. Refs. B1-1 - B1-9 |
| B2. | YN63D00003P1 | [4] | GUIDE | KOBTrack Superseded by part number: YN63D00003P2 |
| B2. | YN63D00003P2 | [4] | GUIDE | KOB |
| B3. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| B4. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| B5. | 2420P1580D1 | [8] | SCREW,M18 x 1.5 x 40mm | KOBM18x1.50x40mm |
| B6. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| B7. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| B8. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| B9. | YN01F01040P1 | [32] | CAP | KOB21.5x17.2x8.1mm Superseded by part number: YY01F01047P1 |
| C1. | YN55V00053F1 | [1] | CENTER JOINT | KOBSwivel, Also Used On H & W |
| D3. | 2420P2963D3 | [52] | CAP | KOBScrew -- M16x2.0x55mm |
| D4. | YN53D00015F2 | [2] | HYDRAULIC MOTOR | KOBPropel Motor Assembly, Incls. Refs. D4-1 - D4-3 |
| D4. | YN53D00015F3 | [2] | Propel Motor Assembly, Incls. Refs. D4-1 - D4-3, Start Year: 01-MAY-13 | |
| D4-1. | YN15V00037F2 | [1] | HYDRAULIC MOTOR | KOB |
| . . | YN15V00037F2R | [1] | REMAN-HYD MOTOR | KOBSK210-8 TIER 3 ROPS (NA) ASN YQ12U4800 |
| . . | YN15V00037F2C | [1] | CORE-MOTOR HYDRAULIC | KOBReturn Number |
| D4-2. | YN51D01015P1 | [1] | SPROCKET,21 T, 402mm ID x 659mm OD | KOBUsed with Standard |
| D4-2. | YN51D01003P1 | [1] | DRIVING SPROCKET | SMUsed with H&W |
| D4-3. | ZS13C16045 | [26] | SCREW | KOBScrew -- M16x2.0x45mm |
