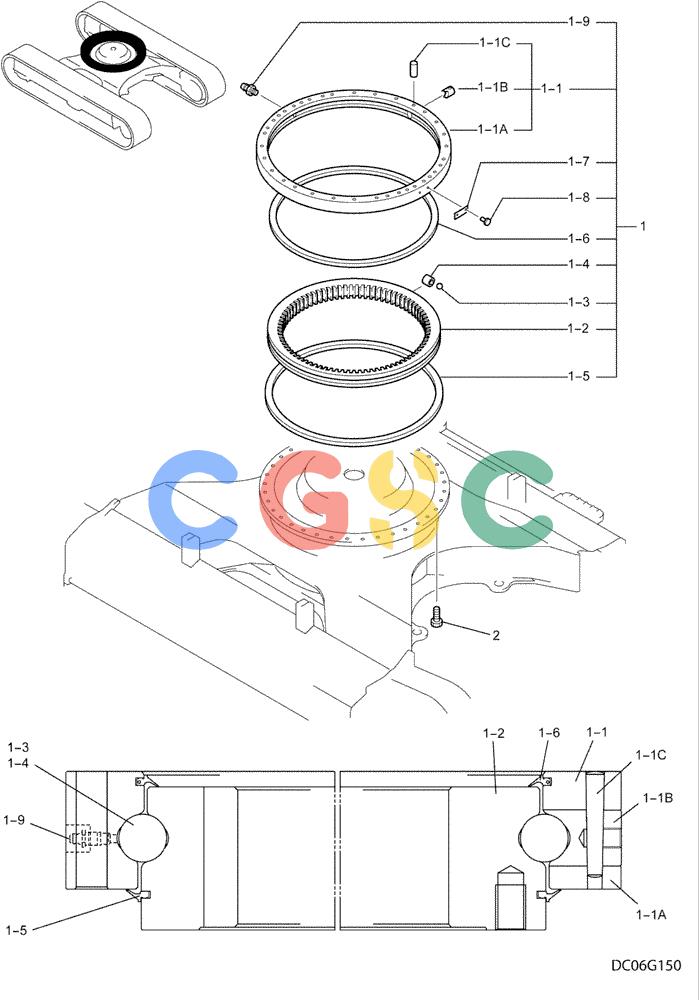

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (02-003[00]) - SLEWING RING ASSEMBLY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
990 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN40F00026F1 | [1] | RING | KOBSlewing Assembly Superseded by part number: YN40F00026F2 |
| 1-1. | NSS | [1] | NOT SERVICED SEPARATELY | CONRace, Outer |
| 1-1C. | 2419T1964D1 | [1] | PIN | KOBTaper -- OD 10 x 70mm Long |
| 1-3. | 2425T307 | [120] | BALL | KOB |
| 1-4. | YN40F01018P1 | [120] | RETAINER | KOBRetainer |
| 1-5. | YN40F01024D1 | [1] | SEAL | KOB Superseded by part number: YN40F01024DC |
| 1-6. | YN40F01024D2 | [1] | SEAL | KOB Superseded by part number: YN40F01024DC |
| 1-7. | YN22T00194P1 | [1] | TYPE PLATE | KOB |
| 1-8. | 2420Z1036D3 | [2] | CLEVIS | KOB2.2x4.6mm |
| 1-9. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 2. | YN40F01001P1 | [36] | CAP | KOBScrew -- M20x1.5x65mm |
