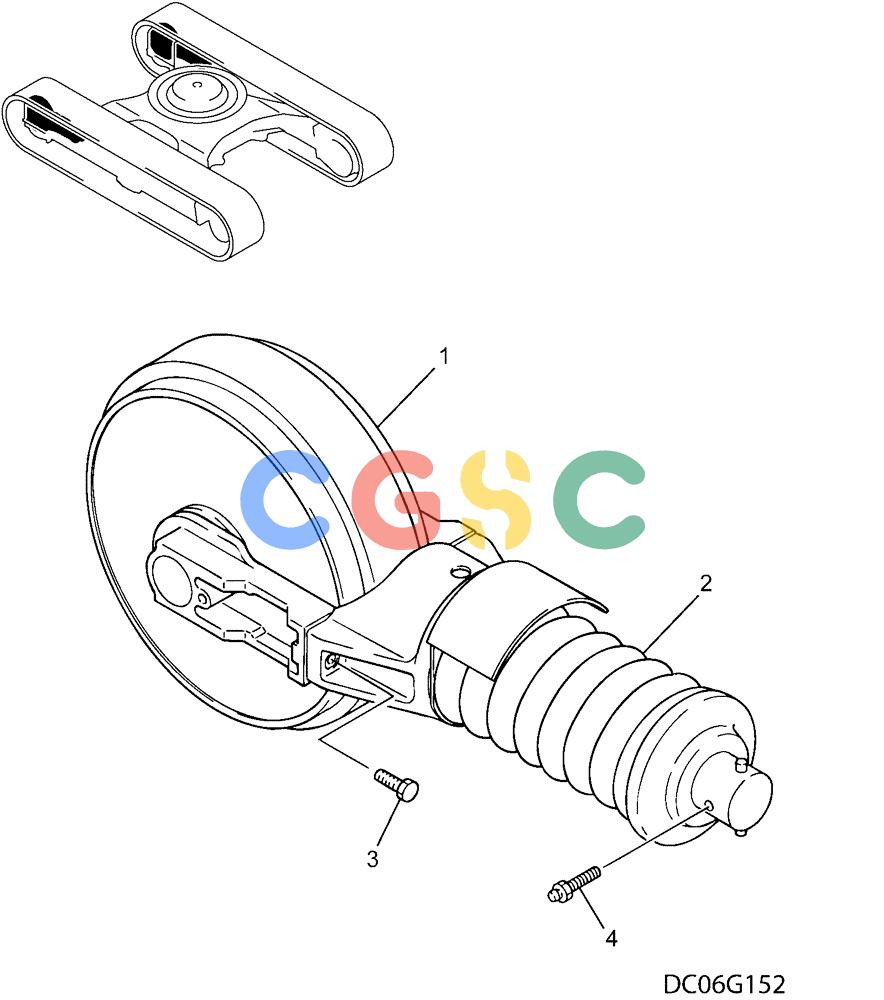

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (02-006[01]) - IDLER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN52D00034F1 | [1] | IDLER | KOBStandard Superseded by part number: YN52D00039F2 |
| . . | LQ52D00025F1 | [1] | IDLER | KOBHigh and Wide |
| 1. | YN52D00009F1 | [1] | IDLER | KOB Superseded by part number: LQ52D00044F1 |
| 2. | YN54D00014F1 | [1] | IDLER | KOBStandard Superseded by part number: YN54D00015F2 |
| 2. | LQ54D00010F1 | [1] | SPRING | SMHigh and Wide Superseded by part number: LQ54D00010F8 |
| 3. | ZS13C16045 | [2] | SCREW | KOBScrew -- M16x2.0x45mm |
| 4. | 2444P803 | [1] | LUBE NIPPLE,5/8” – 18 x 64mm L, 19mm Hex | KOB5/8" - 18 UNF, Straight |
