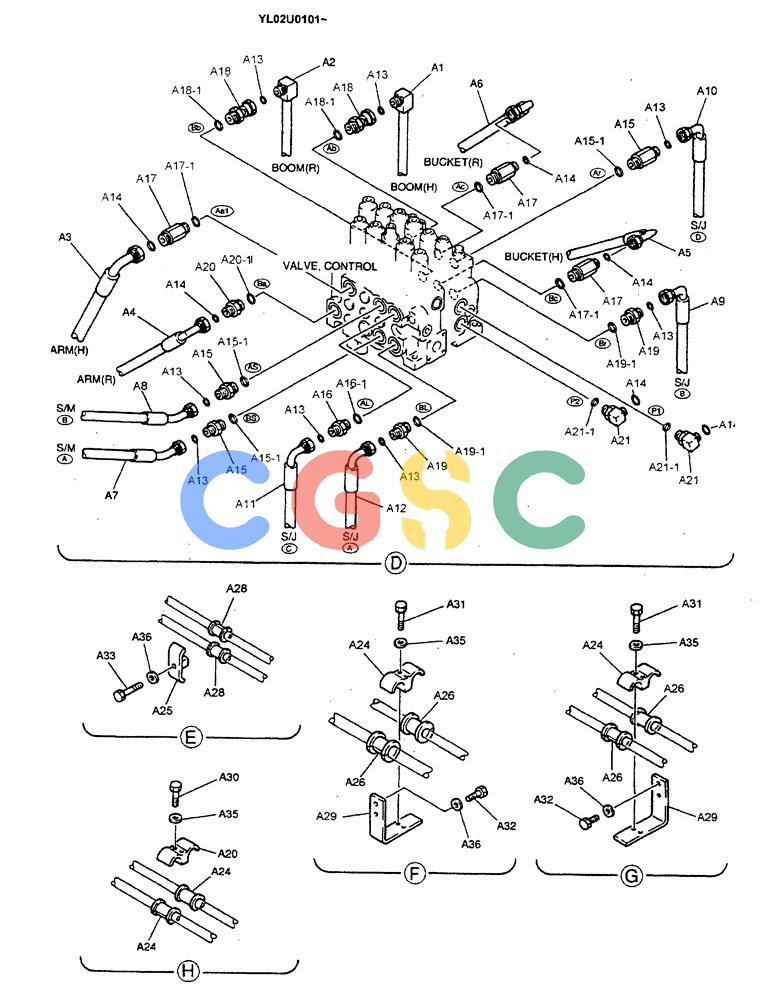

| . . | YM03H00001F1 | [1] | LINE | KOB |
| A1. | YM03H01019P1 | [1] | TUBE | KOB |
| A2. | YM03H01020P1 | [1] | RIGID TUBE | KOB |
| A3. | ZX30H12150 | [1] | HOSE | KOB1500 mm Long (59-3/64 in) |
| A4. | ZX30H12140 | [1] | HOSE,Hyd, 19mm ID x 31.20mm OD x 140mm L | KOB1400 mm Long (55-7/64 in) |
| A5. | ZX30H12145 | [1] | HOSE | KOB1450 mm Long (57-5/64 in) |
| A6. | ZX30H12155 | [1] | HOSE,Hyd, 19mm ID x 31.20mm OD x 155mm L | KOB |
| A7. | ZX49H10088 | [1] | HOSE | KOB |
| A8. | ZX49H10084 | [1] | HOSE | KOB |
| A9. | ZX30H10135 | [1] | HOSE ASSY. | KOB |
| A10. | ZX30H10150 | [1] | HOSE ASSY. | KOB |
| A11. | ZX30H10130 | [1] | HOSE ASSY. | KOB1300mm Long (51-3/16 in) |
| A12. | ZX30H10115 | [1] | HOSE ASSY. | KOB |
| A13. | ZD12A01600 | [14] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| A14. | ZD12A01800 | [6] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| A15. | HG24F10012G2 | [2] | CONNECTOR, (1-14UNS-PF3/4) | |
| A15-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| A16. | HG24F10012G3 | [2] | HYD CONNECTOR | KOB1"-14UNS - 3/4"PT x 90mm Long (Incls. O-Ring ZD12P02400) |
| A16-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| A17. | HG24F12012G1 | [3] | HYD CONNECTOR | KOB |
| A17-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| A18. | HG23H10012G1 | [2] | HYD CONNECTOR | KOB1"-14UNS - 3/4"PT x 66.5mm Long (Incls. O-Ring ZD12P02400) |
| A19. | ZG23F10012 | [2] | HYD CONNECTOR | KOB5/8"-3/4" PT (Incls. O-Ring ZD12P02400) |
| A19-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| A20. | ZG23F12012 | [1] | HYD CONNECTOR | KOB1 3/16" 12UN-3/4" PT x 48mm Long (Incls. O-Ring ZD12P02400) |
| A20-1. | ZD12P02400 | [1] | O-RING | KOB(Part of ZG23F12012), ID 23.70 ± 0.24 x OD 30mm |
| A21. | ZG33F12012 | [2] | 90 ELBOW,1 3/16"-12 UN x PF 3/4" | KOB90° -- 1-3/16" -12UN x 3/4" PF (Incls. O-Ring ZD12P02400) |
| A21-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| A22. | ZG35F10012 | [1] | ELBOW, (1-14UNS-PF3/4) | |
| A22-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| A23. | HG34F10012G1 | [1] | ELBOW | KOB90° -- (Incls. O-Ring ZD12P02400)(1-14LWS-PF3/4) |
| A23-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| A24. | YN03H01427P1 | [4] | CLAMP | KOB122.5x50x48mm |
| A25. | YW03H01183P1 | [2] | CLAMP | KOB |
| A26. | YN03H01431P1 | [4] | BUSHING,28mm ID x 56mm OD x 70mm L | KOBSplit -- ID 28 x OD 38 x 70mm Long |
| A27. | YM03H01001P1 | [4] | BUSHING | KOB |
| A28. | YN03H01075P1 | [4] | BUSHING,21mm ID x 39mm OD x 50mm L | KOBSplit -- ID 21 x OD 31 x 50mm Long |
| A29. | YM03H01024P1 | [2] | SUPPORT | |
| A30. | YM03H01004P1 | [1] | SUPPORT | |
| A31. | ZS18C10075 | [8] | SCREW,Hex, M10 x 75mm | KOBM10x1.50x75mm |
| A32. | ZS18C12030 | [6] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| A33. | ZS18C12060 | [1] | SCREW,Hex, M12 x 60mm | KOBM12x1.75x60mm |
| A34. | ZS18C12065 | [1] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| A3S. | ZW16H10000 | [8] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| A36. | ZW16H12000 | [9] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| A37. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| . . | YM19HU0006F1 | [1] | HYD LINES, SWIVEL | |
| B1. | HH25R08008G1 | [1] | HYD CONNECTOR | KOB1/2" PF (Incls. O-Ring ZD12P01800) 106mm Long |
| B1-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| B2. | HG33F10016G1 | [2] | ELBOW | KOB90° -- (Incls. O-Ring ZD12P02900) 56mm Long |
| B2-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| B3. | HG34F10016G1 | [2] | ELBOW | KOB90° -- (Incls. O-Ring ZD12P02900) 100mm Long |
| B3-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| B4. | ZD12A01600 | [4] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| B5. | ZH42X08000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 45° -- (Incls. O-Ring ZD12P01800) |
| B5-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| B6. | YM19HU1001P1 | [4] | ELBOW | KOB90° -- (Incls. O-Rings ZD12P01400 & YM19HU1003P1) |
| B6-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| B7. | YM19HU1002P1 | [2] | ELBOW | KOB90° -- (PF 1/2)(Incls. O-Rings ZD12P01400 & YM19HU1006P1) |
| B7-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| B8. | HH25R06006G6 | [2] | HYD CONNECTOR | KOBCONNECTOR, (PF3/8) |
| B8-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| B9. | 2444Z2891 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| B9-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| B10. | YM19HU1003P1 | [4] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro | KOBID 09.25 ± 0.13 x OD 12.81mm Superseded by part number: 9993141 |
| B11. | YM19HU1006P1 | [2] | O-RING,12.42mm ID x 1.78mm Width | KOBID 12.42 ± 0.13 x OD 16mm |
| B12. | ZH32X04000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| B12-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| B13. | 2444Z2516 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| B13-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
