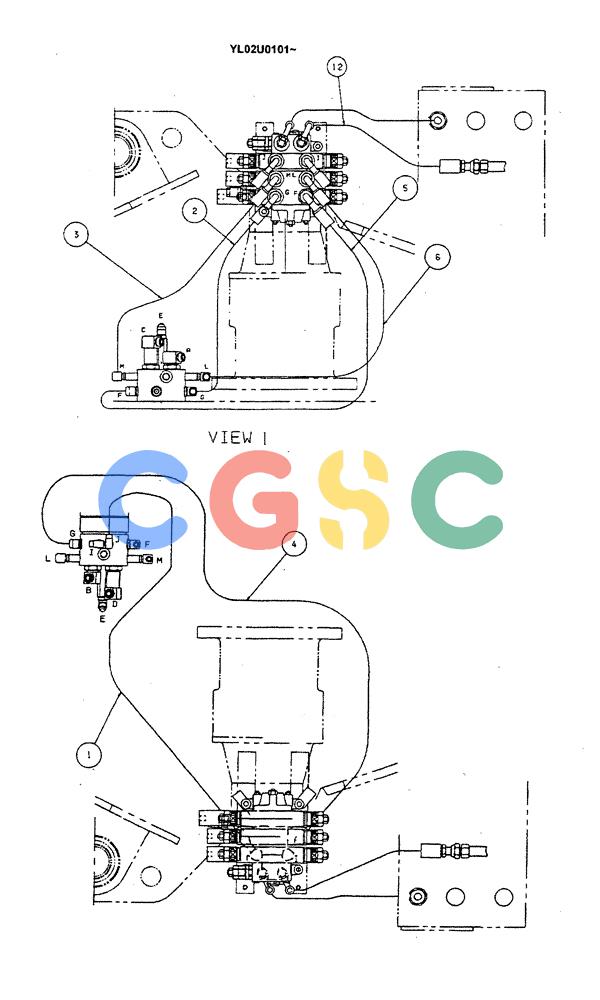

神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (01-022[02]) - HYD LINES, UPP (DOZER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
703 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM03HU0002F1 | [1] | HYD LINES, UPPER (DOZER) | |
| 1. | YM03HU1009D1 | [1] | HOSE 900mm Long (35-7/16 in) | HOSE 900mm Long (35-7/16 in) |
| 2. | YM03HU1009D2 | [1] | HOSE 1150mm Long (45-17/64 in) | HOSE 1150mm Long (45-17/64 in) |
| 3. | YM03HU1010D1 | [1] | HOSE 1150mm Long (45-17/64 in) | HOSE 1150mm Long (45-17/64 in) |
| 4. | YM03HU1009D3 | [1] | HOSE 1500mm Long (59-1/16 in) | HOSE 1500mm Long (59-1/16 in) |
| 5. | YM03HU1010D2 | [1] | HOSE 1500mm Long (59-1/16 in) | HOSE 1500mm Long (59-1/16 in) |
| 6. | YM03HU1009D4 | [1] | HOSE 1600mm Long (63 in) | HOSE 1600mm Long (63 in) |
| 7. | ZX36H12055 | [1] | HOSE | HOSE |
| 12. | ZX32M12110 | [1] | HOSE | KOB |
| 13. | ZH22X12016 | [1] | HYD CONNECTOR | KOBCONNECTOR |
