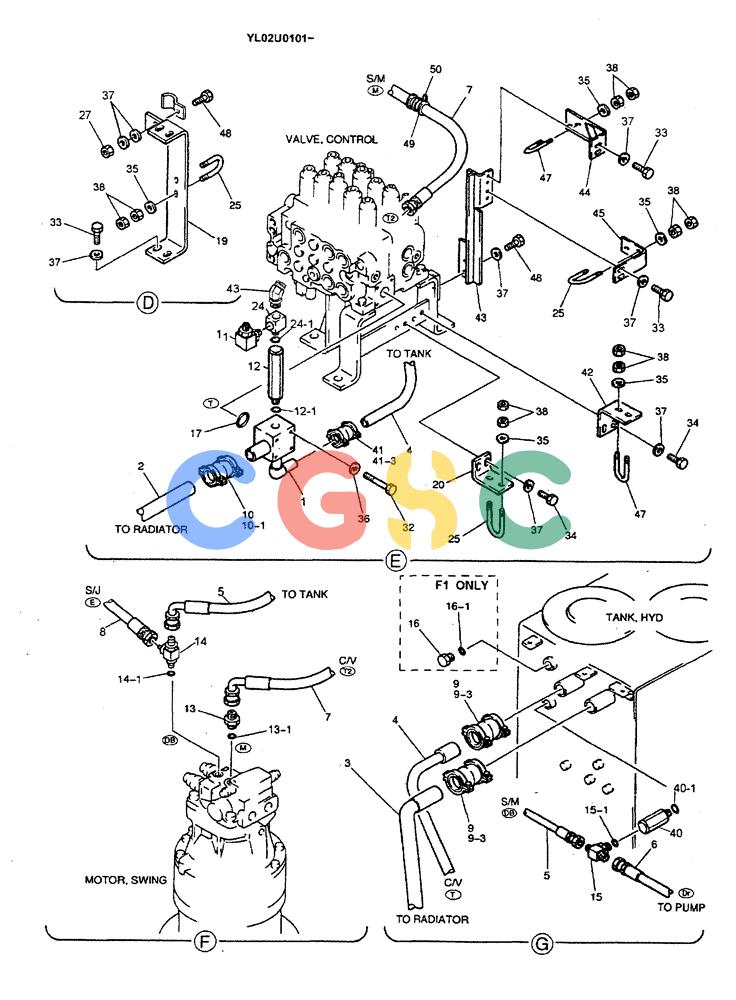

| . . | YM32H00001F2 | [1] | HYD LINES, UPP | |
| 1. | YM32H01005P1 | [1] | TUBE | KOB |
| 2. | YM32H01009P1 | [1] | TUBE | KOB |
| 3. | YM32H01008P1 | [1] | TUBE | KOB |
| 4. | YM32H01006P1 | [1] | TUBE | KOB |
| 5. | ZX31M08066 | [1] | HOSE | KOB |
| 6. | ZX21M08098 | [1] | HOSE | KOB(Dr) PF 1/2, 980mm Long (38-9/16 in) Superseded by part number: ZX21M08100 |
| 7. | ZX32M12096 | [1] | HOSE | KOB |
| 8. | ZX21M08070 | [1] | HOSE ASSY. | KOB700mm Long (27-35/64 in) |
| 9. | R44P0089D8 | [2] | ELASTIC JOINT,101mm ID x 148.8mm OD x 165.1mm L | KOB |
| 9-3. | R44P0089D8S3 | [2] | GASKET | KOB |
| 10. | ZG15F04300 | [3] | COUPLING | KOB |
| 10-3. | R44P0089D7S3 | [2] | GASKET | KOB |
| 11. | ZH32X08012 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 3/4", O-Ring | KOB90° -- 1/2"PFx3/4"PFx66mm Long (Incls. O-Ring ZD12P02400) |
| 12. | HH25R12012G6 | [1] | ELEC CONNECTOR | KOB |
| 12-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 13. | ZH22X12000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 14. | HH55X08006G1 | [1] | TEE | KOB(2) 1/2" PF x 3/8" PF x 70mm Long (Incls. O-Ring ZD12P01400) |
| 14-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 15. | 2444Z2686 | [1] | TEE | KOB |
| 17. | ZD11G04500 | [1] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 18. | YM32H01013P1 | [1] | SUPPORT | |
| 19. | YM32H01004P1 | [1] | SUPPORT | |
| 20. | YM32H01001P1 | [1] | SUPPORT | |
| 21. | YN32H01066P1 | [1] | CLAMP | KOB94x38x31mm |
| 22. | 2432T5299 | [2] | CLAMP | KOB |
| 23. | YN32H01035P1 | [1] | CLAMP | KOB |
| 24. | HH55Q12012G2 | [1] | TEE | KOB3/4"PFx86mm Long (Incls. O-Ring ZD12P02400) |
| 24-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 25. | 2420T2948D20 | [3] | U-BOLT | KOBM08x1.25x ID 44x 80mm Long |
| 26. | ZC46X31014 | [1] | CLIP | KOBClamp -- Ø31mm Single Cable |
| 27. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 28. | YN02B01031D2 | [1] | SPACER | KOB |
| 30. | ZS18C10030 | [1] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 31. | ZS18C10055 | [1] | SCREW,Hex, M10 x 55mm | KOBM10x1.50x55mm |
| 32. | ZS18C10075 | [4] | SCREW,Hex, M10 x 75mm | KOBM10x1.50x75mm |
| 33. | ZS18C12030 | [7] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 34. | ZS18C12035 | [6] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 35. | ZW16H08000 | [10] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 36. | ZW16H10000 | [7] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 37. | ZW16H12000 | [15] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 38. | ZN18C08007 | [20] | NUT | KOBM08x1.25mm |
| 39. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 40. | HH25R12012G3 | [1] | HYD CONNECTOR | KOB3/4"PFx42mm Long (Incls. O-Ring 237-6012) |
| 40-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 41. | ZG15F03200 | [1] | COUPLING | KOB |
| 41-3. | ZG15G03200 | [2] | GASKET | KOB Superseded by part number: R44P0089D11S3 |
| 42. | YM32H01010P1 | [1] | SUPPORT | |
| 43. | ZH42X12000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOB45° -- 3/4" PF (Incls. O-Ring 237-6012) |
| 44. | YM32H01012P1 | [1] | SUPPORT | |
| 45. | YM32H01011P1 | [1] | SUPPORT | |
| 47. | 2420T2948D1 | [2] | BOLT,M8 x 1.25 x 32mm W x 74mm L | KOBU -- M08x1.25x ID 32 x 74mm Long |
| 48. | ZS18C12050 | [1] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 49. | PY01P01043D6 | [1] | CABLE TIE,4.80mm W x 383mm L | KOBWire Ties -- 368mm Long |
| 50. | YN03H01074P1 | [1] | BUSHING | KOB |
