神钢零件查询(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06) (01-027[03]) - CONTROLS, OPERATORS Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
323 次

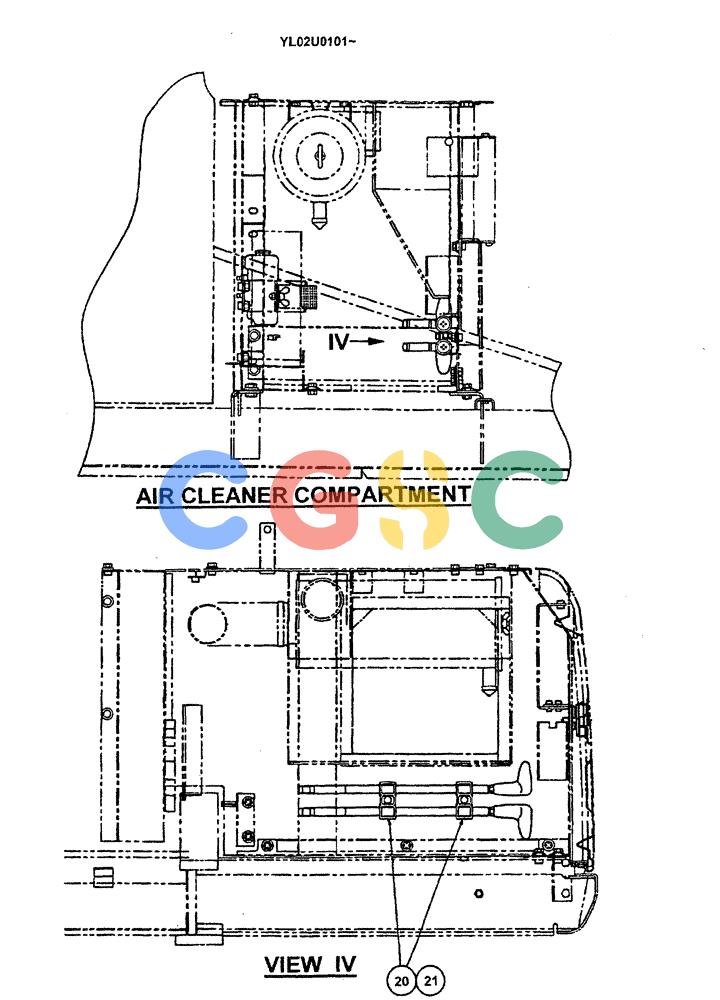

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM03MU0001F1 | [1] | CONTROLS ASSY, OPERATOR'S | |
| 1. | YM03MU0002P1 | [1] | BOX ASSY, CONTROL, See P. 104-01 | |
| 2. | YN50M00004F1 | [1] | LEVER | KOB |
| 3. | YN03M01287P1 | [1] | COVER | KOB |
| 4. | YN03M01288P1 | [1] | COVER | KOB |
| 5. | YN03M01289P1 | [1] | COVER | KOB |
| 6. | YN03M01290P1 | [1] | COVER | KOB |
| 9. | YV03M01005P1 | [1] | PLATE | KOB |
| 13. | YN03M01040P1 | [2] | GRIP | KOB |
| 15. | ZM46C06020 | [6] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) |
| 16. | ZM22C10020 | [4] | BOLT | KOBM10x1.50x20mm (Incls. Washer & Lockwasher) |
| 17. | ZM22C10025 | [4] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) |
| 19. | 2420Z1232 | [2] | NUT | KOBM12x1.25mm |
| 20. | PH32H01007P1 | [2] | CLAMP | KOB |
| 21. | ZM22C10040 | [2] | BOLT | KOBM10x1.50x40mm (Incls. Washer & Lockwasher) |
