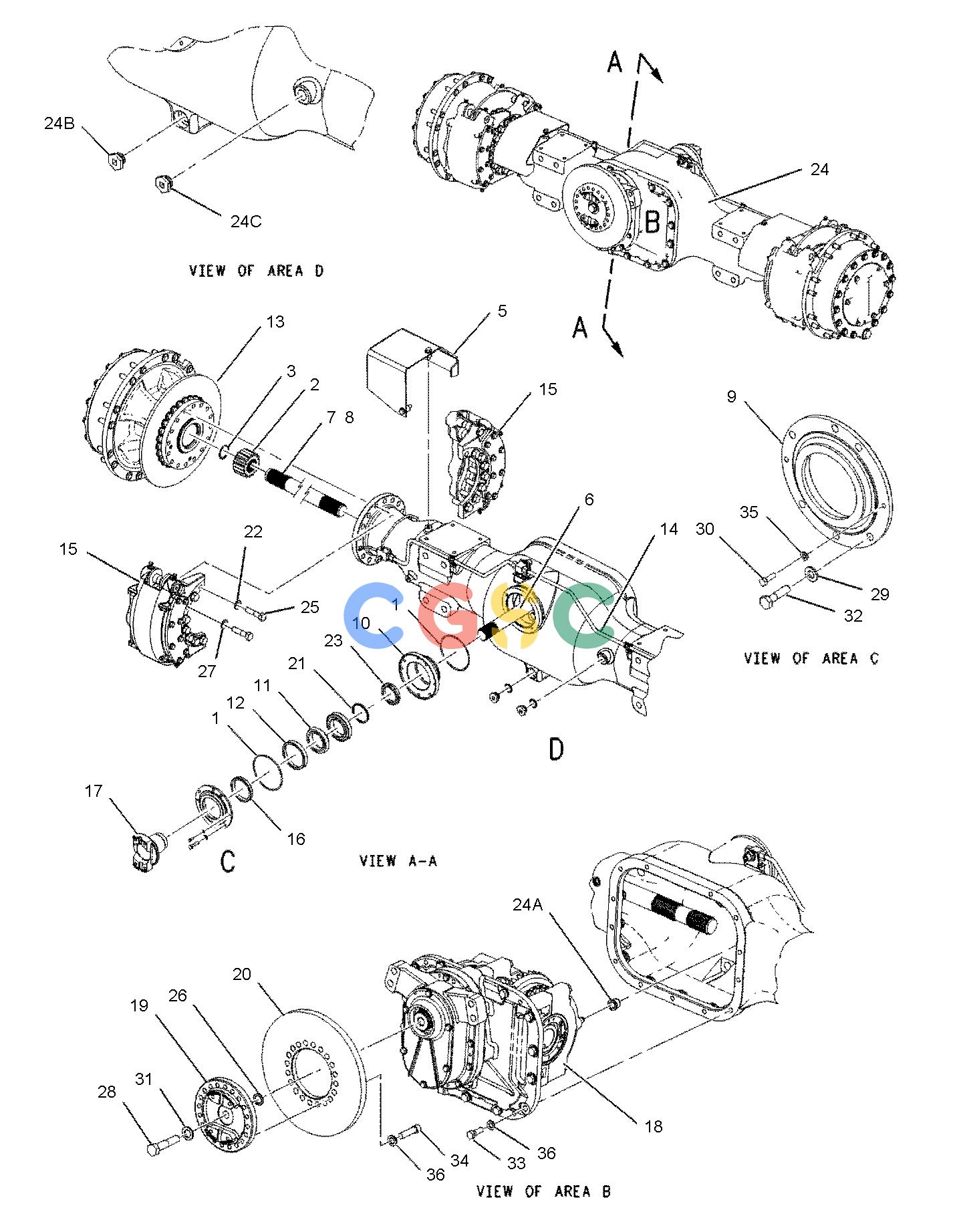

卡特零件查询（730） 228-2646: AXLE & FRAME AR
广数供应链运营团队, 15 02月, 2025，浏览：
171 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y | [1] | AXLE AR-FRONT(SUSPENSION) |
| | 148-9959Y | [1] | CYLINDER & MTG GP-STEERING | |
| | 210-1886Y | [1] | CYLINDER & MTG GP-SUSPENSION | |
| | 138-1462Y | [1] | FRAME GP-FRONT | |
| | 229-9334Y | [1] | GEAR GP-TRANSFER | |
| | 229-1414Y | [1] | LINES GP-COOLANT | |
| | 148-9963Y | [1] | LINES GP-GREASE(SUSPENSION) | |
| | 250-1725Y | [1] | MOUNTING GP-TRANSFER GEAR | |
| | 148-9964Y | [1] | SHAFT GP-FRONT DRIVE | |
| | 246-0896Y | [1] | WIRING GP-CHASSIS(FRONT) | |
| | | | S/N B1M1-2462 |
| | 326-7278Y | [1] | WIRING GP-CHASSIS(FRONT) | |
| | | | S/N B1M2463-UP |
| | Y | | SEPARATE ILLUSTRATION |
